Toyota Crown
1999-09 → 2003-12 · chassis JZS175 · catalogue 3312A0 · General
Discontinued model
Data version 2003-12

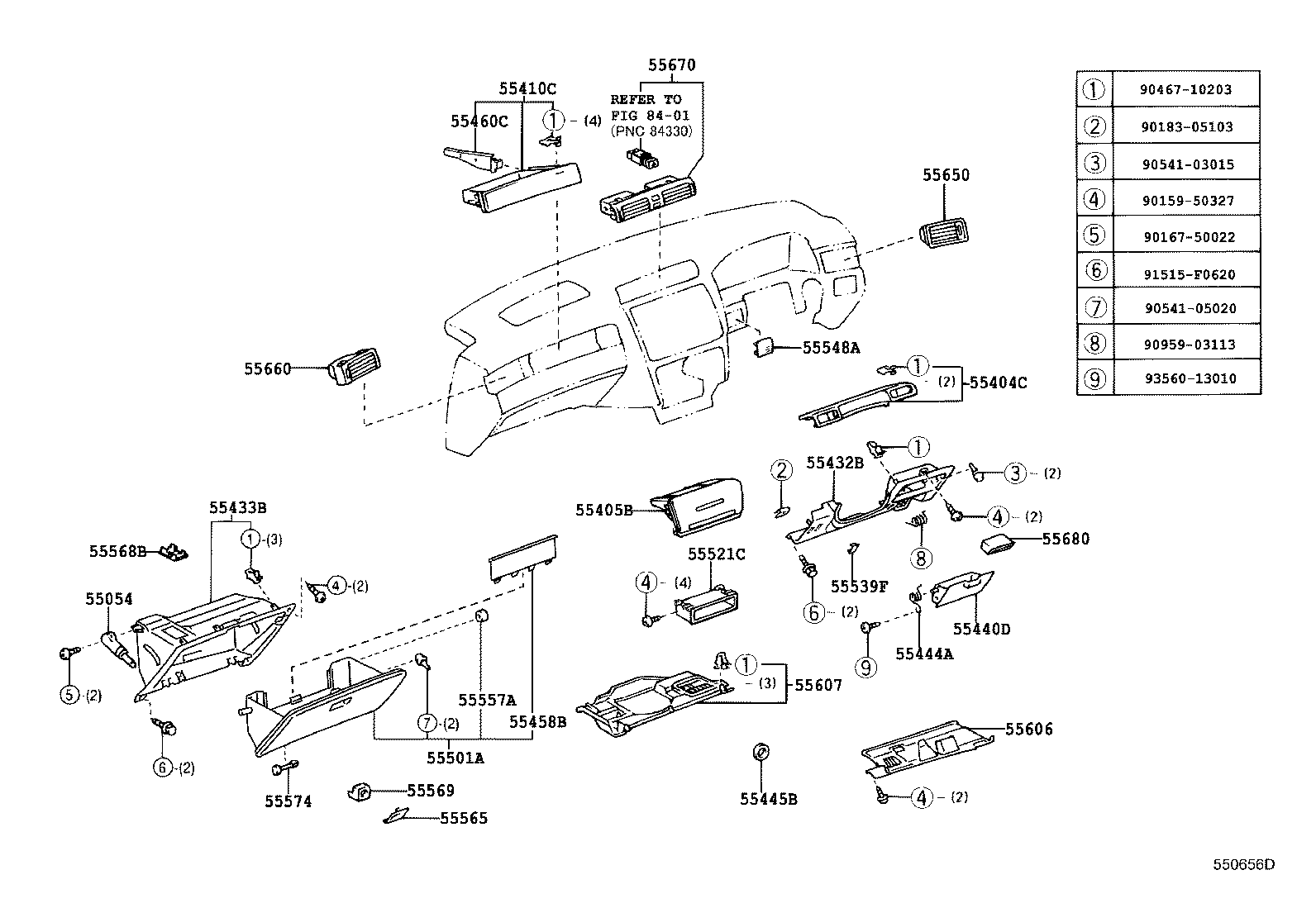

Instrument Panel & Glove Compartment
49 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 55054 | Stopper Sub-assy, Glove Compartment Door |
| 55306A | Brace Sub-assy, Instrument Panel, NO.1 |
| 55307C | Brace Sub-assy, Instrument Panel, NO.2 |
| 55317A | Panel, Instrument Side, RH |
| 55328 | Pin, Instrument Panel, NO.1 |
| 55330B | Reinforcement Assy, Instrument Panel |
| 55352A | Brace, Instrument Panel TO Floor, NO.2 |
| 55355 | Cushion, Instrument Panel, NO.1 |
| 55366A | Bracket, Radio Mounting, NO.1 |
| 55374C | Bracket, Instrument Panel Lower Mounting, NO.1 |
| 55375B | Bracket, Instrument Panel Lower Mounting, NO.2 |
| 55376 | Bracket, Instrument Panel Mounting, NO.1 |
| 55401E | Pad Sub-assy, Instrument Panel Safety |
| 55404C | Panel Sub-assy, Instrument Cluster Finish, NO.2 |
| 55405B | Panel Sub-assy, Instrument Cluster Finish, Center |
| 55410C | Panel Assy, Instrument Cluster Finish |
| 55416A | Retainer, Meter Hood, NO.1 |
| 55417A | Retainer, Meter Hood, NO.2 |
| 55432B | Panel, Instrument Panel Finish, Lower |
| 55433B | Panel, Instrument Panel Finish, Lower NO.2 |
| 55440D | Box Assy, Instrument Panel |
| 55444A | Spring, Instrument Panel Box |
| 55445B | Plate, Instrument Panel Finish |
| 55458B | Cover, Instrument, Lwr |
| 55460C | Lock Assy, Instrument Panel Box |
| 55501A | Door Sub-assy, Glove Compartment |
| 55521C | Cover, Stereo Opening |
| 55539F | Cover, Spare Switch Hole |
| 55548A | Cover, Instrument Panel Hole |
| 55557A | Cushion, Glove Compartment Door Check |
| 55565 | Handle, Glove Compartment Door Lock |
| 55568B | Plate, Glove Compartment Door Finish |
| 55569 | Cover, Glove Compartment Door Lock |
| 55574 | Shaft, Glove Compartment Door Hinge |
| 55590 | Plate Assy, Grove Compartment Door Lock Striker |
| 55606 | Cover Sub-assy, Instrument Panel Under, NO.1 |
| 55607 | Cover Sub-assy, Instrument Panel Under, NO.2 |
| 55650 | Register Assy, Instrument Panel, NO.1 |
| 55660 | Register Assy, Instrument Panel, NO.2 |
| 55670 | Register Assy, Instrument Panel, NO.3 |
| 55680 | Register Assy, Instrument Panel, Lower NO.1 |
| 55950A | Nozzle Assy, Defroster |
| 55961A | Nozzle, Side Defroster, RH |
| 55962B | Nozzle, Side Defroster, LH |
| 55971B | Duct, Side Defroster Nozzle, NO.1 |
| 55972A | Duct, Side Defroster Nozzle, NO.2 |
| 55981 | Garnish, Defroster Nozzle, NO.1 |
| 55990A | Nozzle Assy, Defroster, Lower |
| 73960A | Airbag Assy, Instrument Panel Passenger W/O Door |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
