Toyota Crown
1999-09 → 2003-12 · chassis JZS175 · catalogue 3312A0 · General
Discontinued model
Data version 2003-12

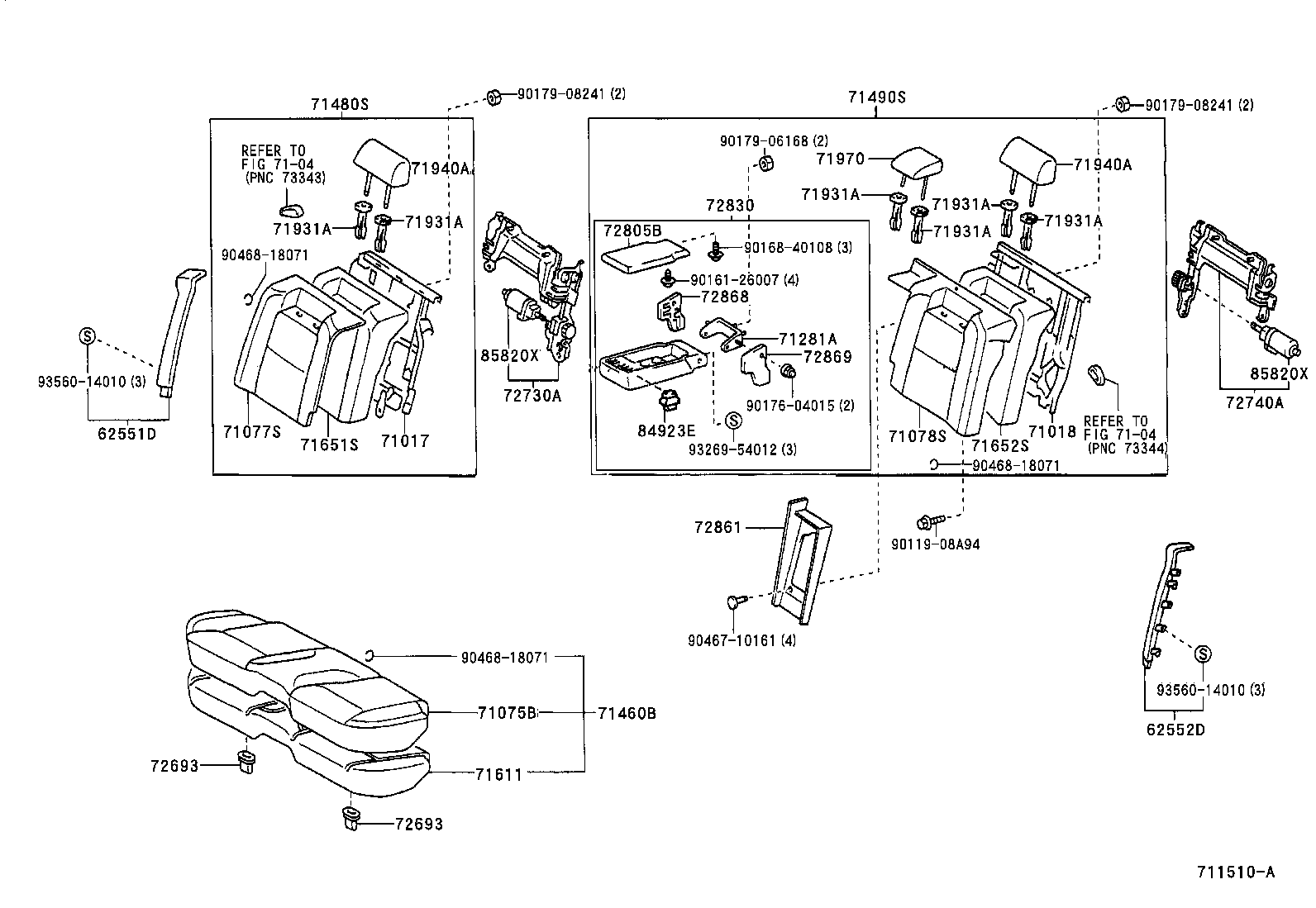

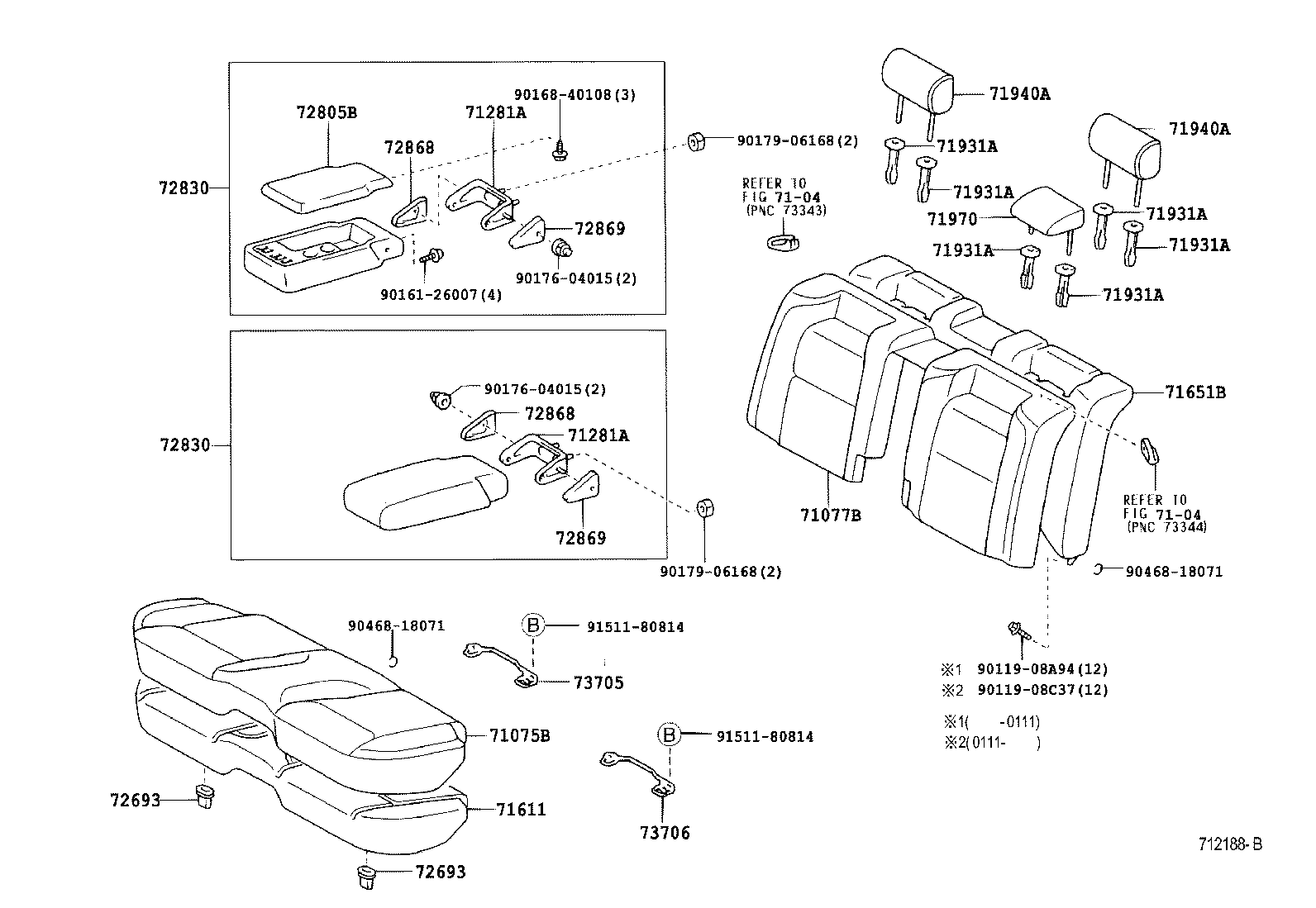

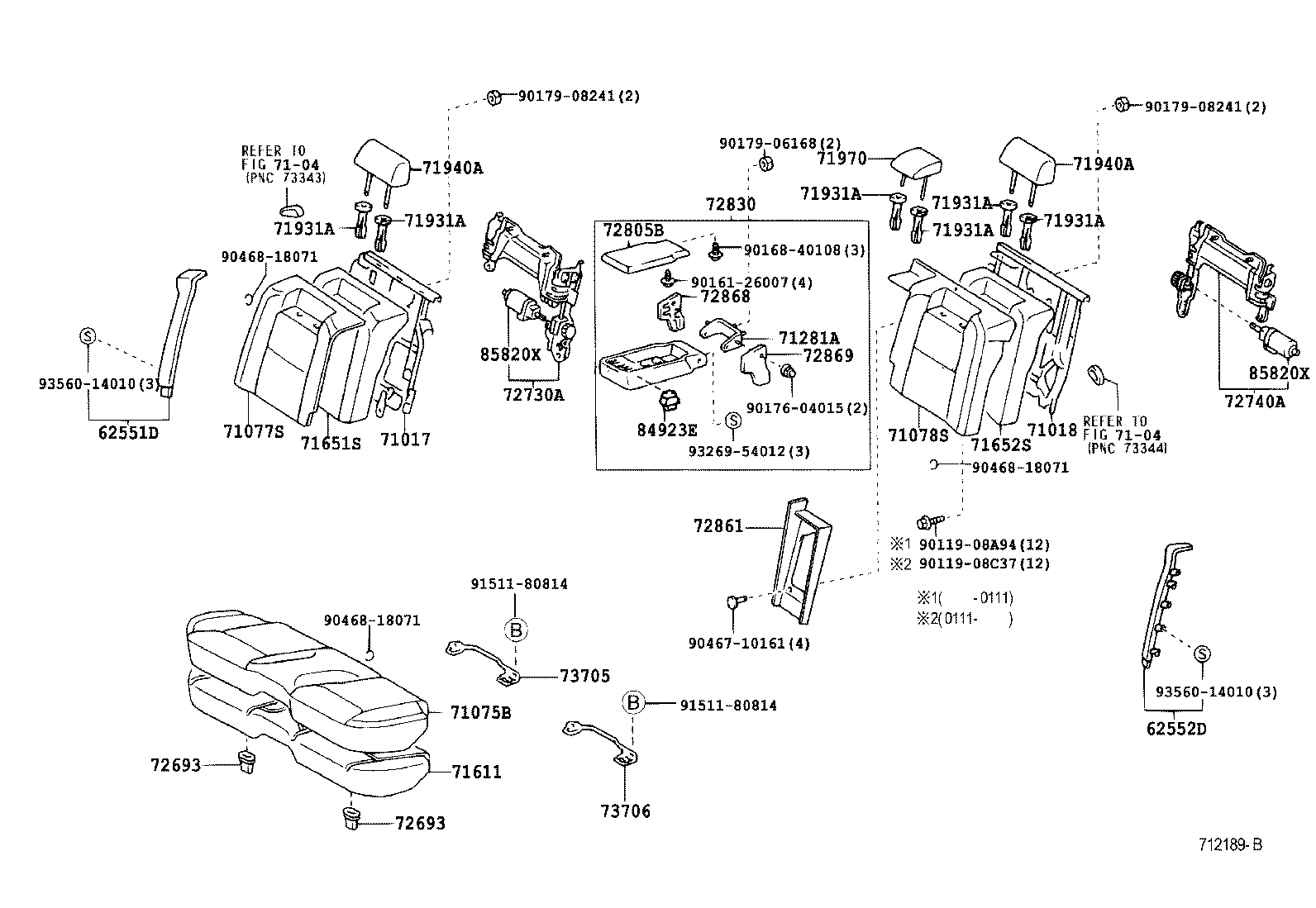

Rear Seat & Seat Track
32 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 62551D | Garnish, Rear Seat Side, RH |
| 62552D | Garnish, Rear Seat Side, LH |
| 71017 | Frame Sub-assy, Rear Seatback, RH |
| 71018 | Frame Sub-assy, Rear Seatback, LH |
| 71075B | Cover, Rear Seat Cushion (FOR BENCH TYPE) |
| 71077B | Cover, Rear Seatback (FOR BENCH TYPE) |
| 71077S | Cover, Rear Seatback, RH (FOR SEPARATE TYPE) |
| 71078S | Cover, Rear Seatback, LH(FOR SEPARATE TYPE) |
| 71281A | Hinge, Rear Seat Center Armrest |
| 71460B | Cushion Assy, Rear Seat (FOR BENCH TYPE) |
| 71480B | Back Assy, Rear Seat (FOR BENCH TYPE) |
| 71480S | Back Assy, Rear Seat, RH (FOR SEPARATE TYPE) |
| 71490S | Back Assy, Rear Seat, LH (FOR SEPARATE TYPE) |
| 71611 | Pad, Rear Seat Cushion |
| 71651B | Pad, Rear Seatback(FOR BENCH TYPE) |
| 71651S | Pad, Rear Seatback, RH(FOR SEPARATE TYPE) |
| 71652S | Pad, Rear Seatback, LH(FOR SEPARATE TYPE) |
| 71931A | Support, Rear Seat Headrest |
| 71940A | Headrest Assy, Rear Seat |
| 71970 | Headrest Assy, Rear Seat |
| 72693 | Hook, Rear Seat Cushion Lock |
| 72730A | Adjuster Assy, Rear Seat Reclining, RH |
| 72740A | Adjuster Assy, Rear Seat Reclining, LH |
| 72805B | Door Sub-assy, Rear Seat Center Armrest |
| 72830 | Armrest Assy, Rear Seat, Center |
| 72861 | Trim, Center Armrest Corner |
| 72868 | Cover, Center Armrest Hinge, RH |
| 72869 | Cover, Center Armrest Hinge, LH |
| 73705 | Bracket Sub-assy, Child Restraint Seat Anchor, RH |
| 73706 | Bracket Sub-assy, Child Restraint Seat Anchor, LH |
| 84923E | Switch, Rear Power Seat |
| 85820X | Motor Assy, Power Seat |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
