Toyota Crown

1999-09 → 2003-12 · chassis JZS175 · catalogue 3312A0 · General

Discontinued model Data version 2003-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Armrest & Visor

16 part groups · 2 illustrations

Illustrations

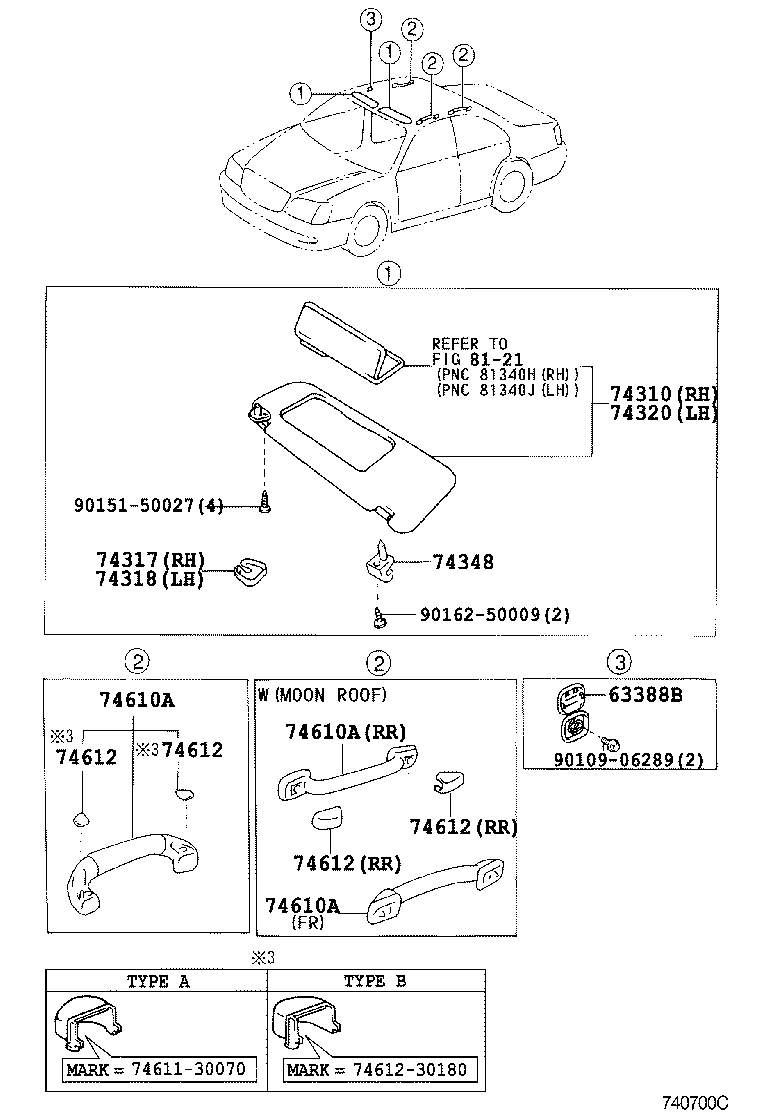

Figure 740693A 740693A 1999-09 → — Figure 740700C 740700C 1999-09 → —

Part groups

PNCDescription
63388B Stopper, Roof Headlining Trim Clip
74230A Panel Assy, Front Door Armrest Base, RH
74240A Panel Assy, Front Door Armrest Base, LH
74270 Panel Assy, Rear Door Armrest Base, RH
74280 Panel Assy, Rear Door Armrest Base, LH
74310 Visor Assy, RH
74317 Cover, Visor Bracket, RH
74318 Cover, Visor Bracket, LH
74320 Visor Assy, LH
74348 Holder, Visor
74610A Grip Sub-assy, Assist
74612 Cover, Assist Grip
74620C Grip Assy, Assist, Rear RH
74630C Grip Assy, Door Assist, RH
74630E Grip Assy, Assist, Rear LH
74640C Grip Assy, Door Assist, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
