Heating & Air Conditioning - Cooler Unit

35 part groups · 8 illustrations

Illustrations

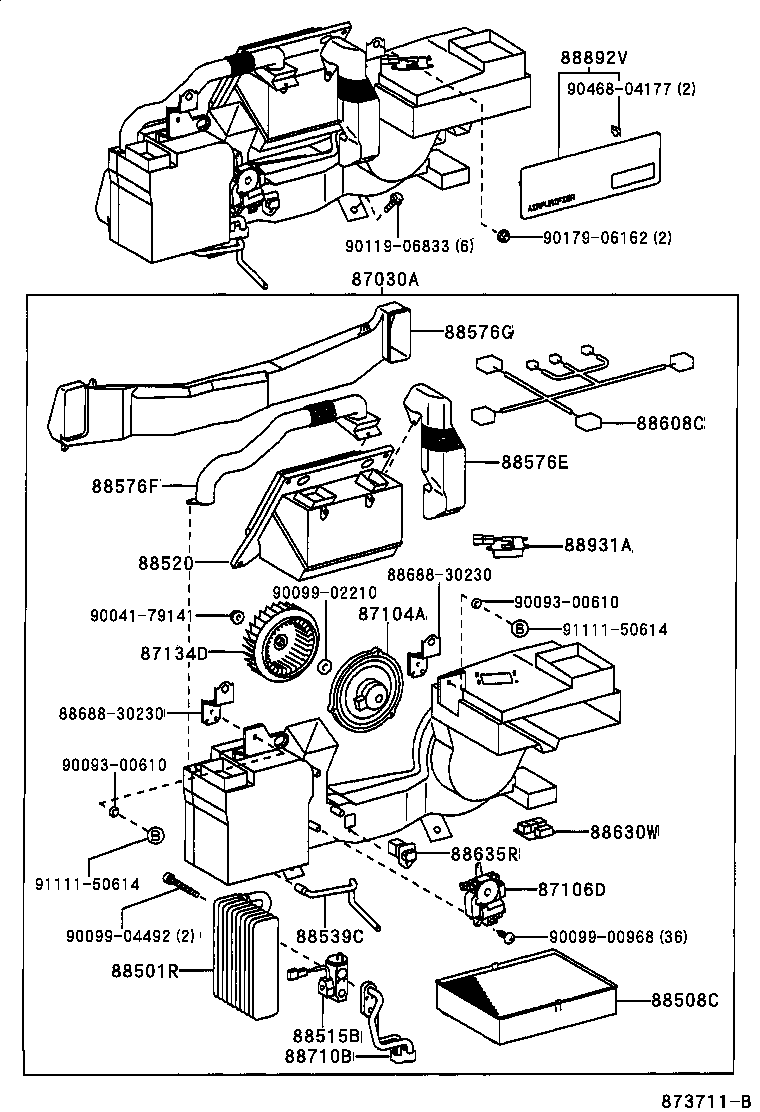

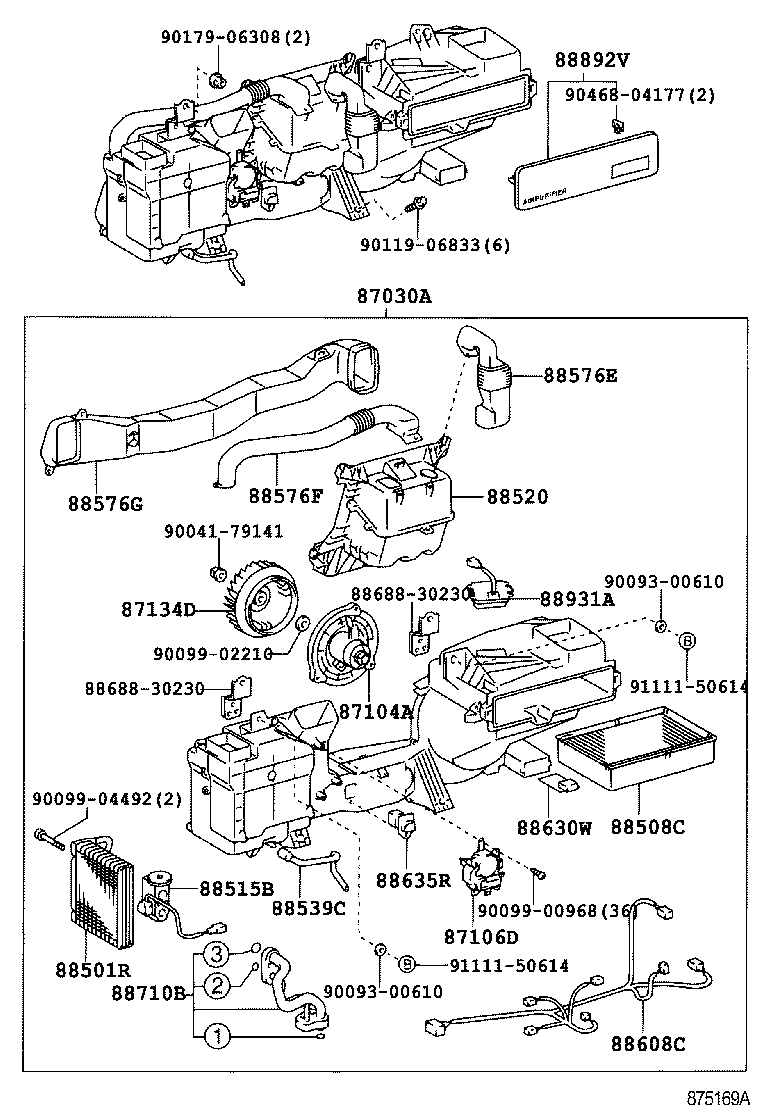

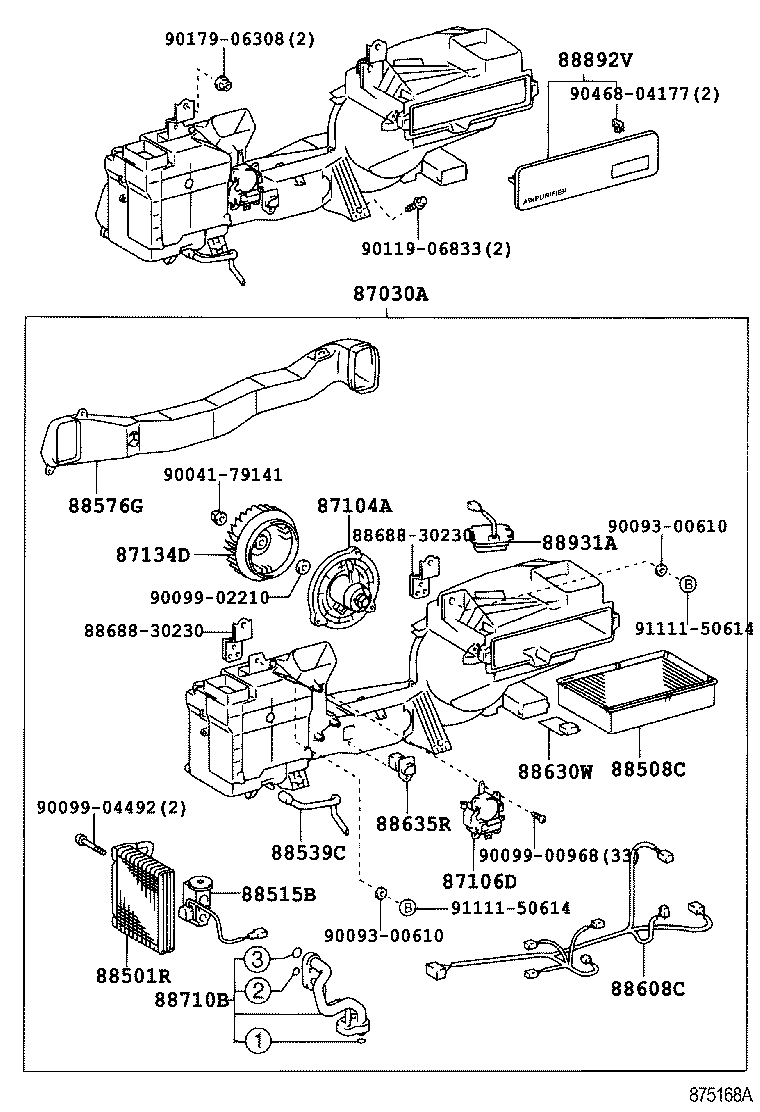

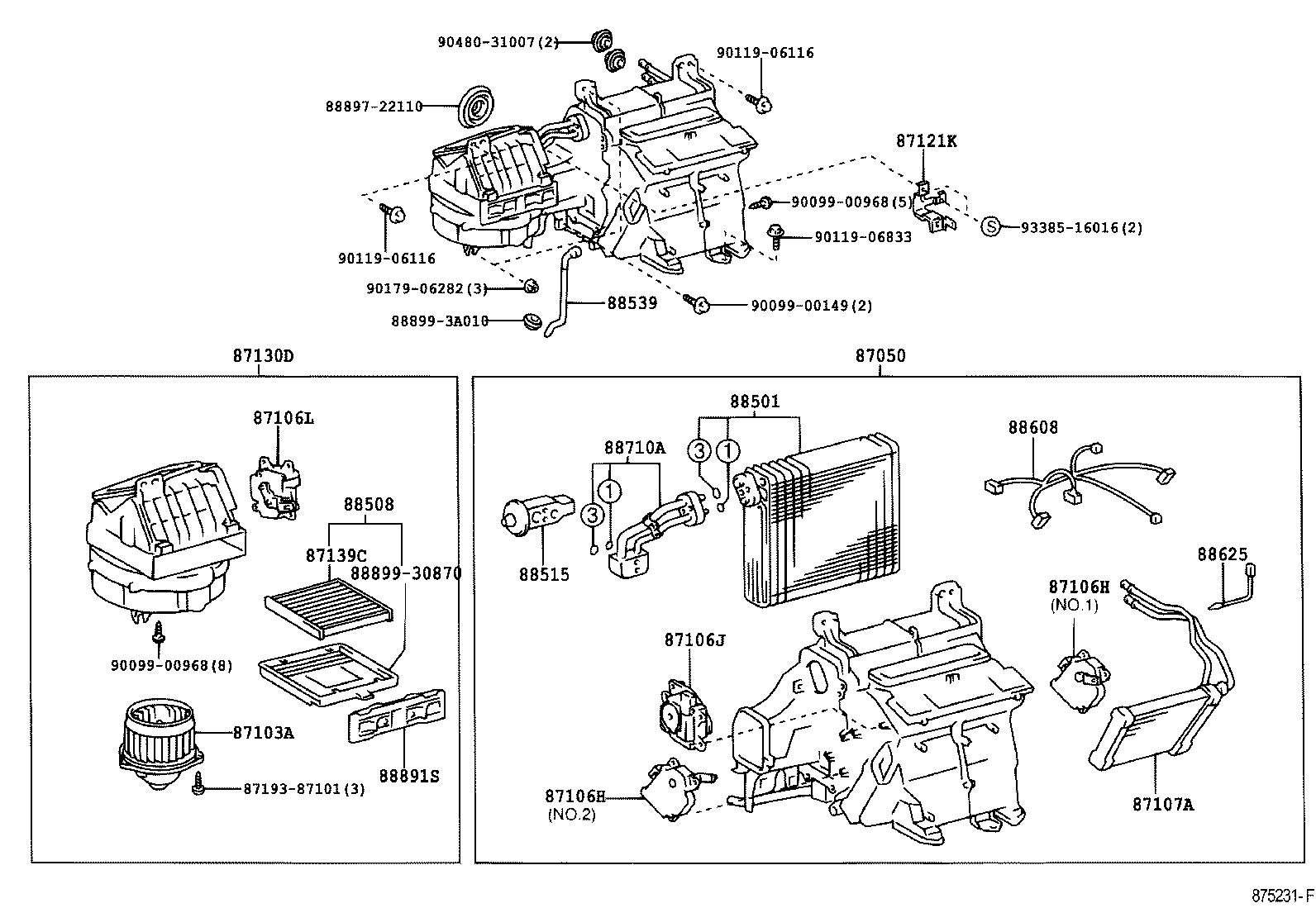

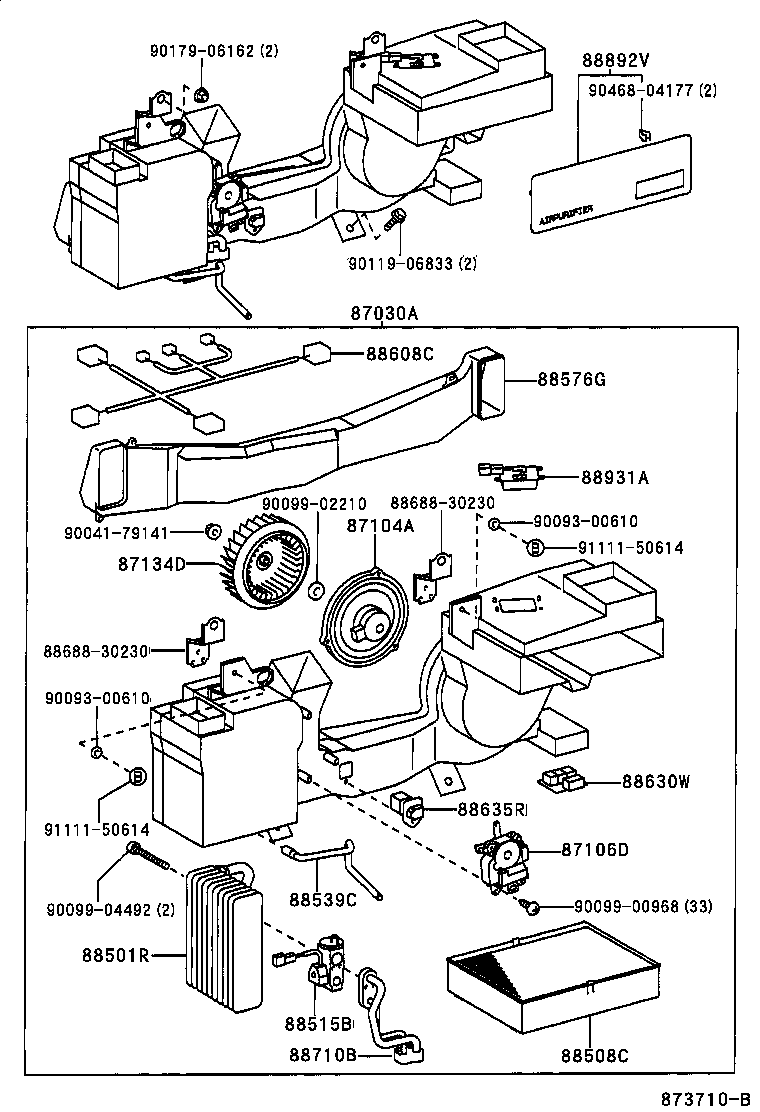

Figure 873742B 873742B 1999-09 → 2001-08 Figure 875231F 875231F 2001-08 → — Figure 873710B 873710B 1999-09 → 2001-08 Figure 873711B 873711B 1999-09 → 2001-08 Figure 875168A 875168A 2001-08 → — Figure 875169A 875169A 2001-08 → — Figure 873712 873712 1999-09 → 2001-08 Figure 874585D 874585D 2001-08 → —

Part groups

PNCDescription
87030A Unit Assy, Cooling, Rear
87050 Radiator Assy, Air Conditioner
87103A Motor Sub-assy, Cooling Unit, W/Fan
87104A Motor Sub-assy, Blower
87106D Servo Sub-assy, Damper, NO.1
87106H Servo Sub-assy, Damper(FOR AIRMIX)
87106J Servo Sub-assy, Damper(FOR MODE)
87106L Servo Sub-assy, Damper
87107A Unit Sub-assy, Heater Radiator
87121K Bracket, Heater
87130D Blower Assy
87134D Fan, Blower, NO.2
87139C Filter, Clean Air
88501 Evaporator Sub-assy, Cooler, NO.1
88501R Evaporator Sub-assy (REAR)
88508 Filter Sub-assy, Clean Air
88508C Filter Sub-assy, Air
88515 Valve, Cooler Expansion
88515B Valve, Rear Cooling Unit Expansion
88520 Box Assy, Cooling
88539 Hose, Cooler Unit Drain, NO.1
88539C Hose, Cooler Unit Drain, NO.2
88576E Duct, Cooler Air, NO.1
88576F Duct, Cooler Air, NO.2
88576G Duct, Cooler Air, NO.3
88608 Harness Sub-assy, Wiring Air Conditioner
88608C Harness Sub-assy, Wiring Air Indicator, NO.2
88625 Thermistor, Cooler, NO.1
88630W Relay Assy
88635R Resistor, Blower
88710A Tube Assy, Air Conditioner
88710B Tube Assy, Air Conditioner
88891S Cover, Cooler, NO.1
88892V Cover, Air Purifier
88931A Sensor, Smoke
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
