Toyota Crown
1999-09 → 2003-12 · chassis JZS175 · catalogue 3312A0 · General
Discontinued model
Data version 2003-12
Heating & Air Conditioning - Control & Air Duct
24 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 55843A | Duct, Heater TO Register, NO.1 |
| 55844 | Duct, Heater TO Register, NO.2 |
| 55845A | Duct, Heater TO Register, NO.3 |
| 55847B | Duct, Heater TO Register, NO.5 |

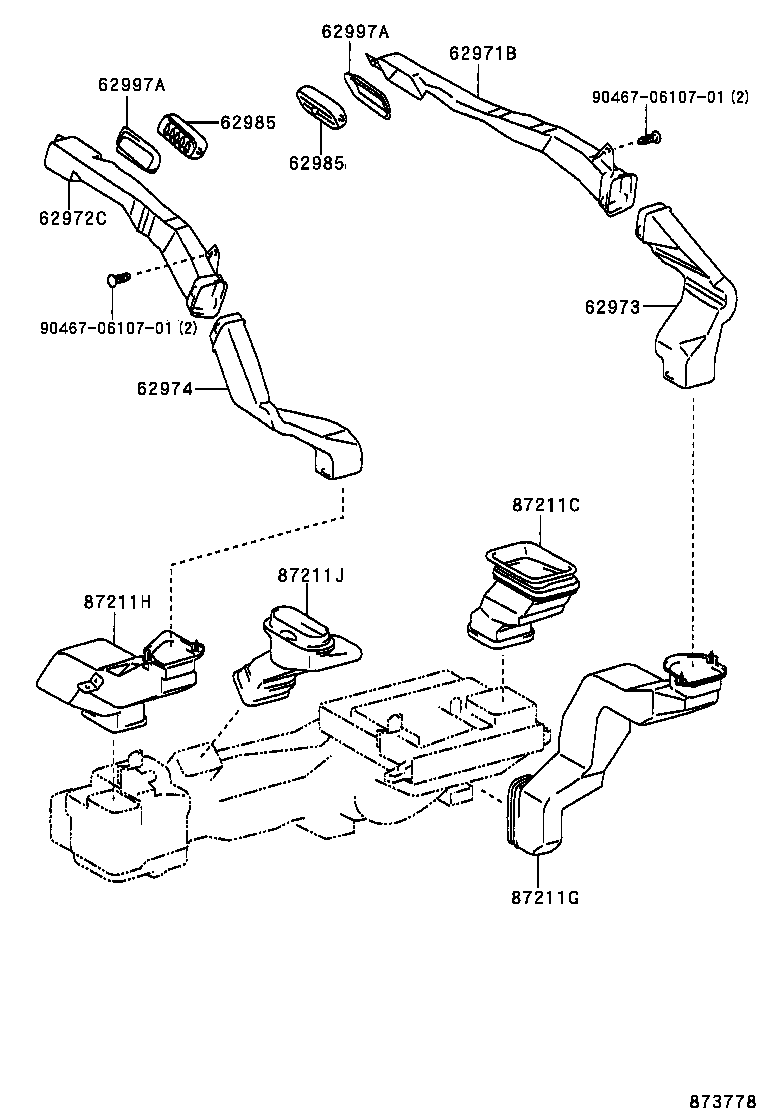

| 62971B | Duct, Roof Side Air, NO.1 RH |
| 62972C | Duct, Roof Side Air, NO.1 LH |
| 62973 | Duct, Roof Side Air, NO.2 RH |
| 62974 | Duct, Roof Side Air, NO.2 LH |
| 62985 | Register, Roof Side Air Outlet |
| 62997A | Cover, Quarter Vent Hole |
| 87211 | Duct, Air, NO.1 |
| 87211A | Duct, Air, NO.2 |
| 87211B | Duct, Air, NO.3 |
| 87211C | Duct, Air, NO.4 |
| 87211G | Duct, Air, NO.5 |
| 87211H | Duct, Air, NO.6 |
| 87211J | Duct, Air, NO.7 |
| 87212 | Duct, Air, Rear NO.1 |
| 87213 | Duct, Air, Rear NO.2 |
| 87215F | Duct, Air, Rear NO.3 |
| 87216B | Duct, Air, Rear NO.4 |

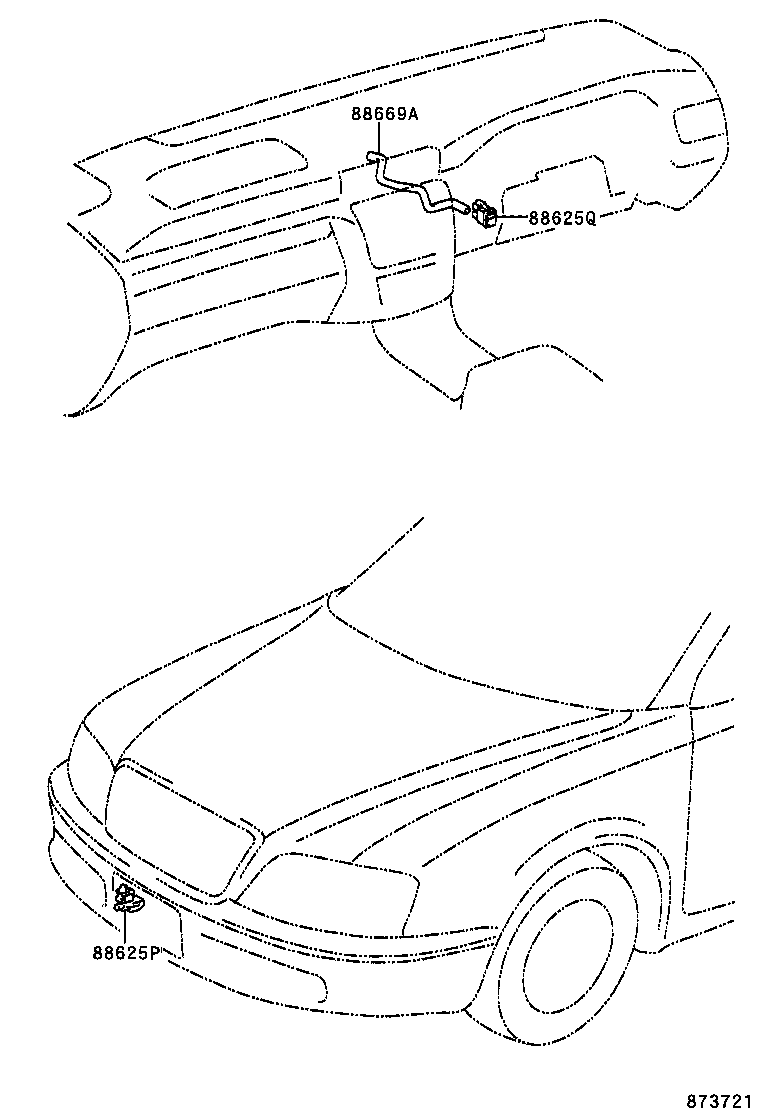

| 88625P | Thermistor, Cooler (AMBIENT TEMP. SENSOR) |
| 88625Q | Thermistor, Cooler (ROOM TEMP. SENSOR) |
| 88669A | Hose (FOR COOLER THERMISTOR) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
