Toyota Crown

1999-09 → 2003-12 · chassis JZS175 · catalogue 3312A0 · General

Discontinued model Data version 2003-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

18 part groups · 8 illustrations

Illustrations

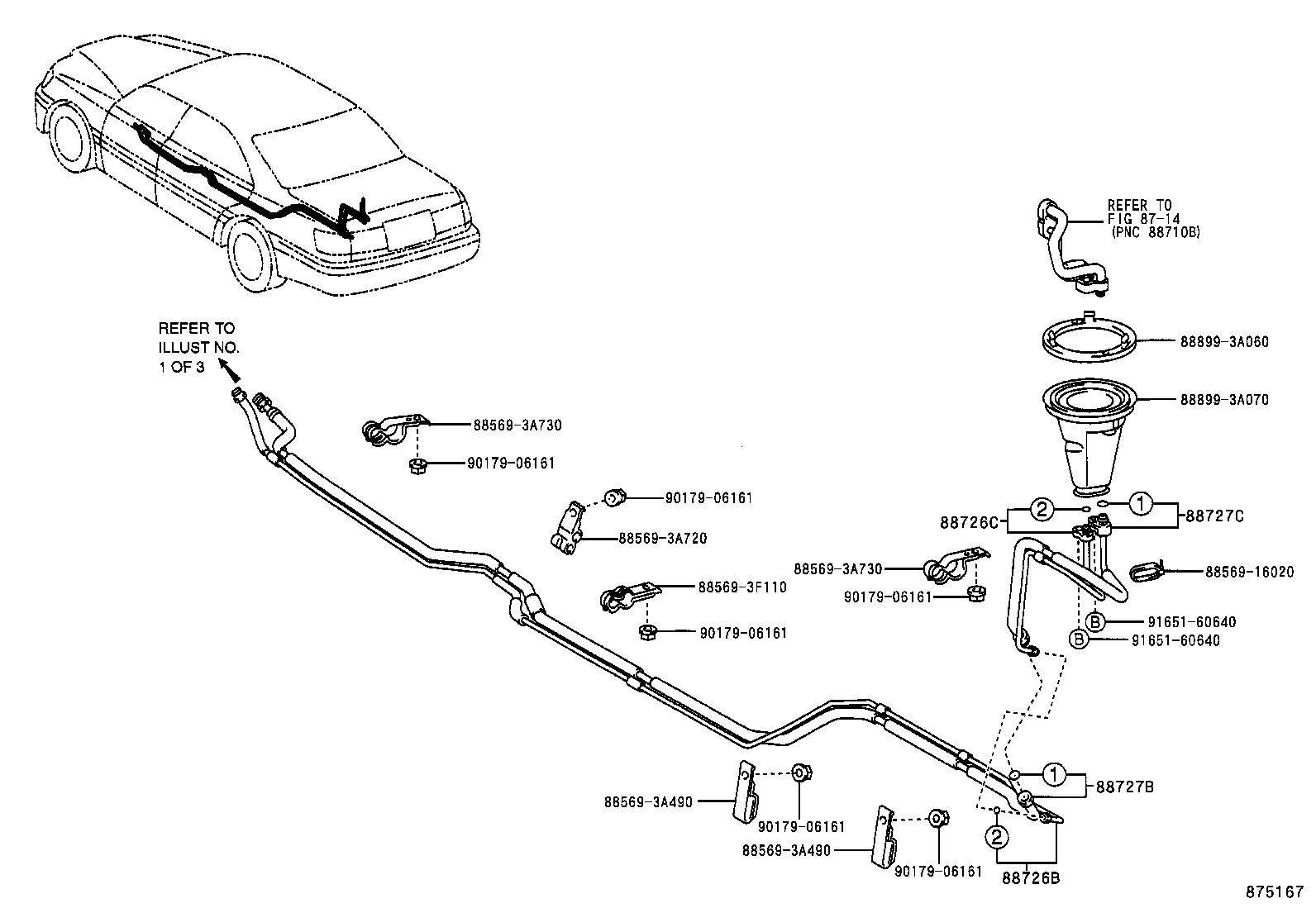

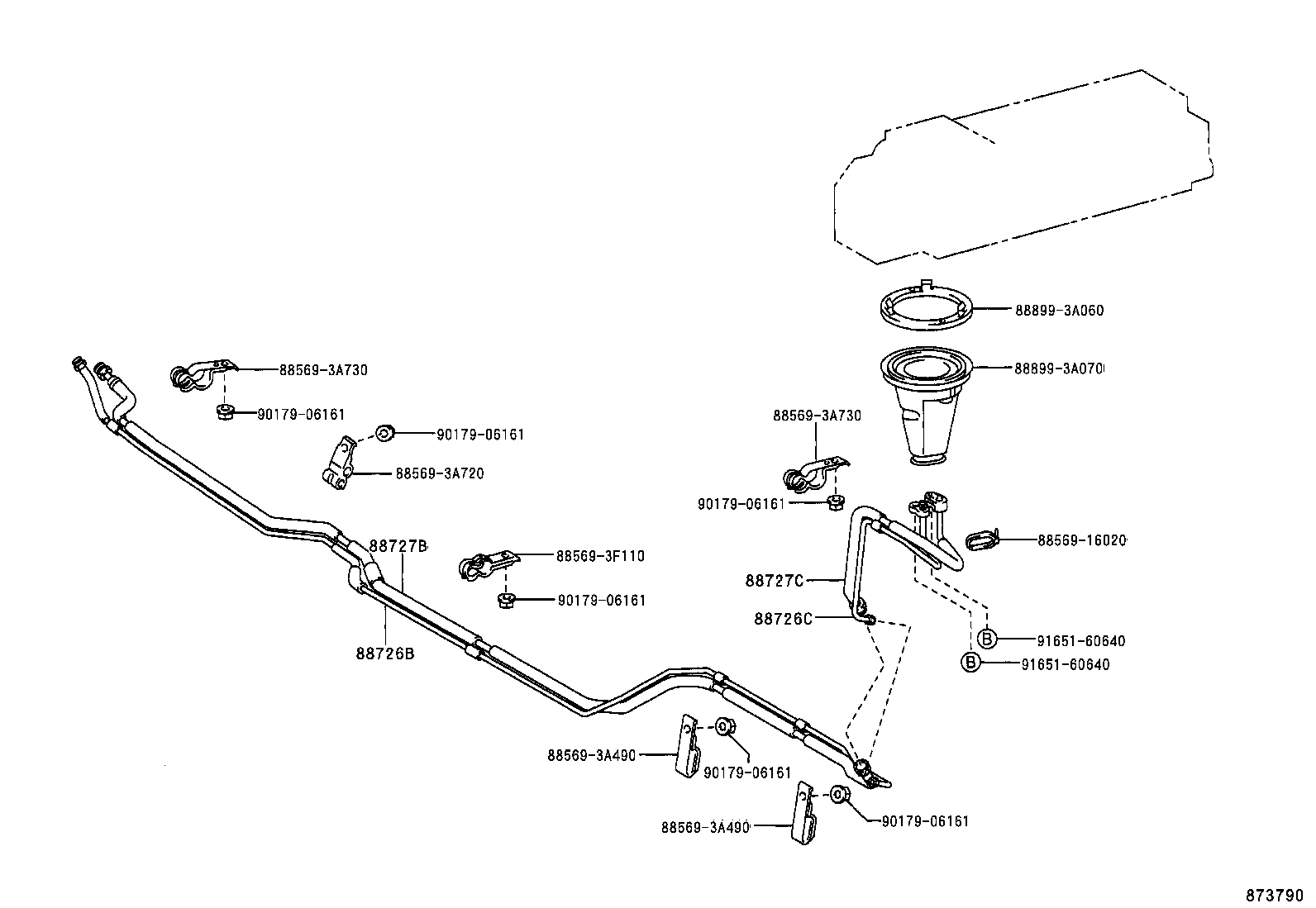

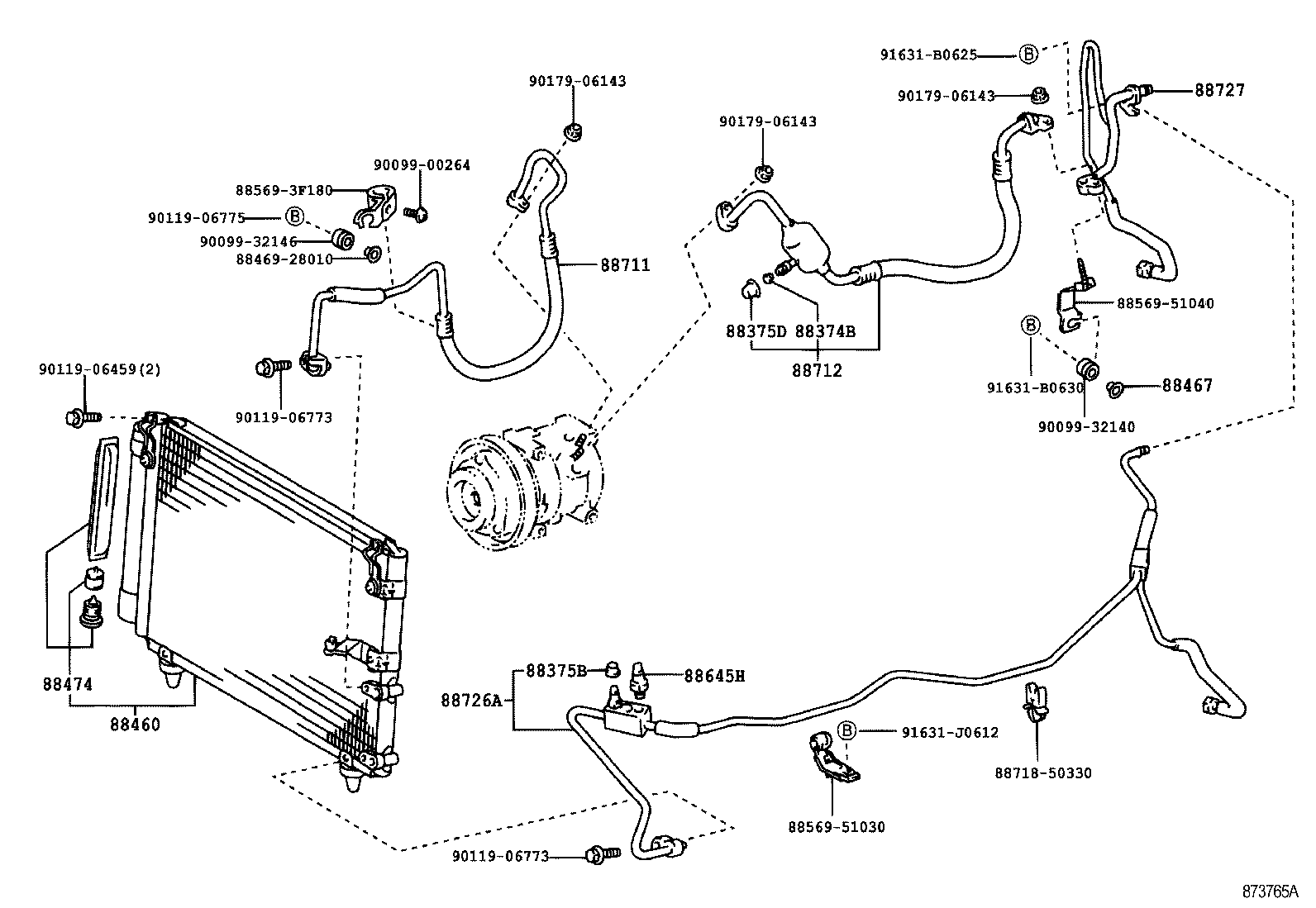

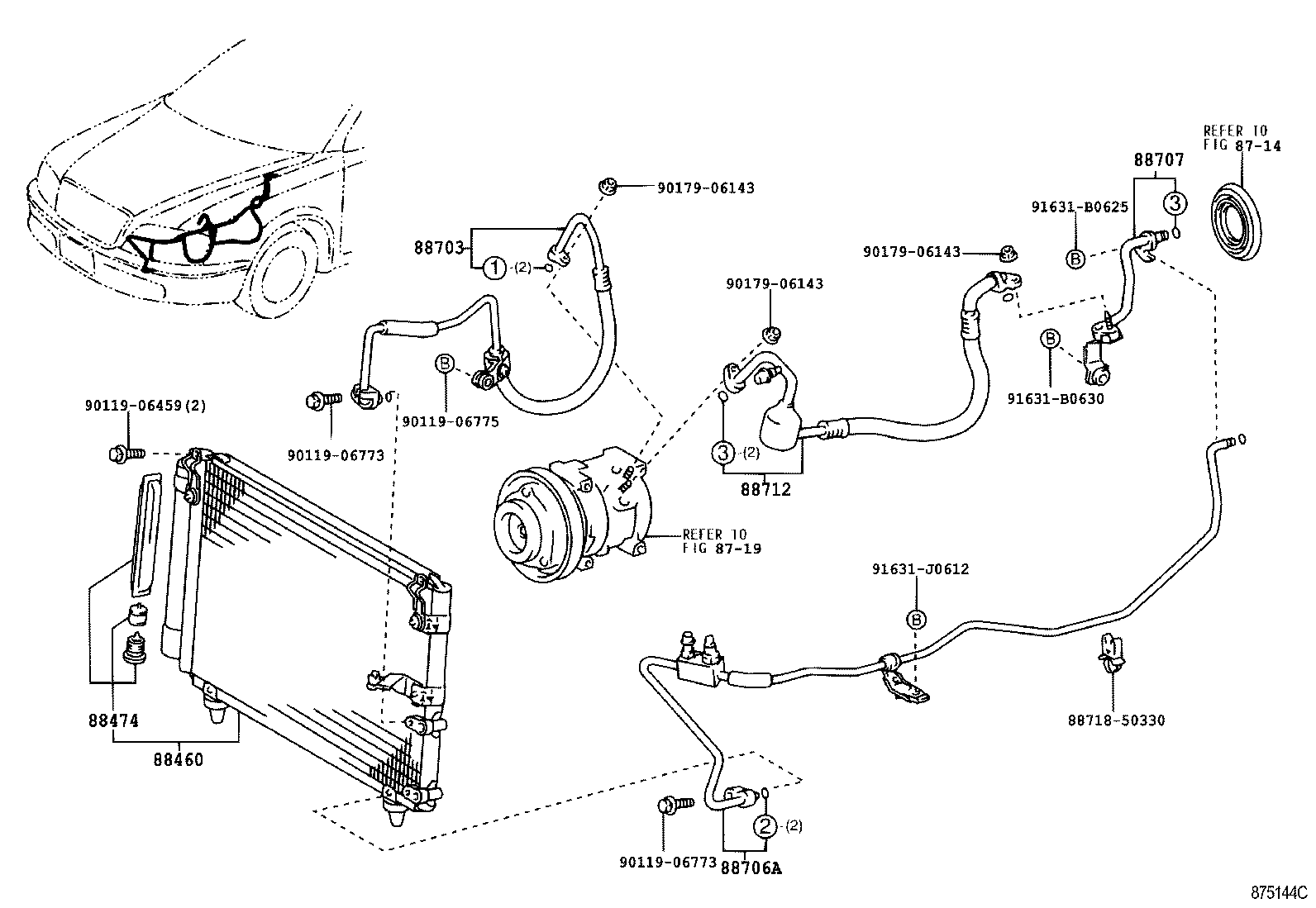

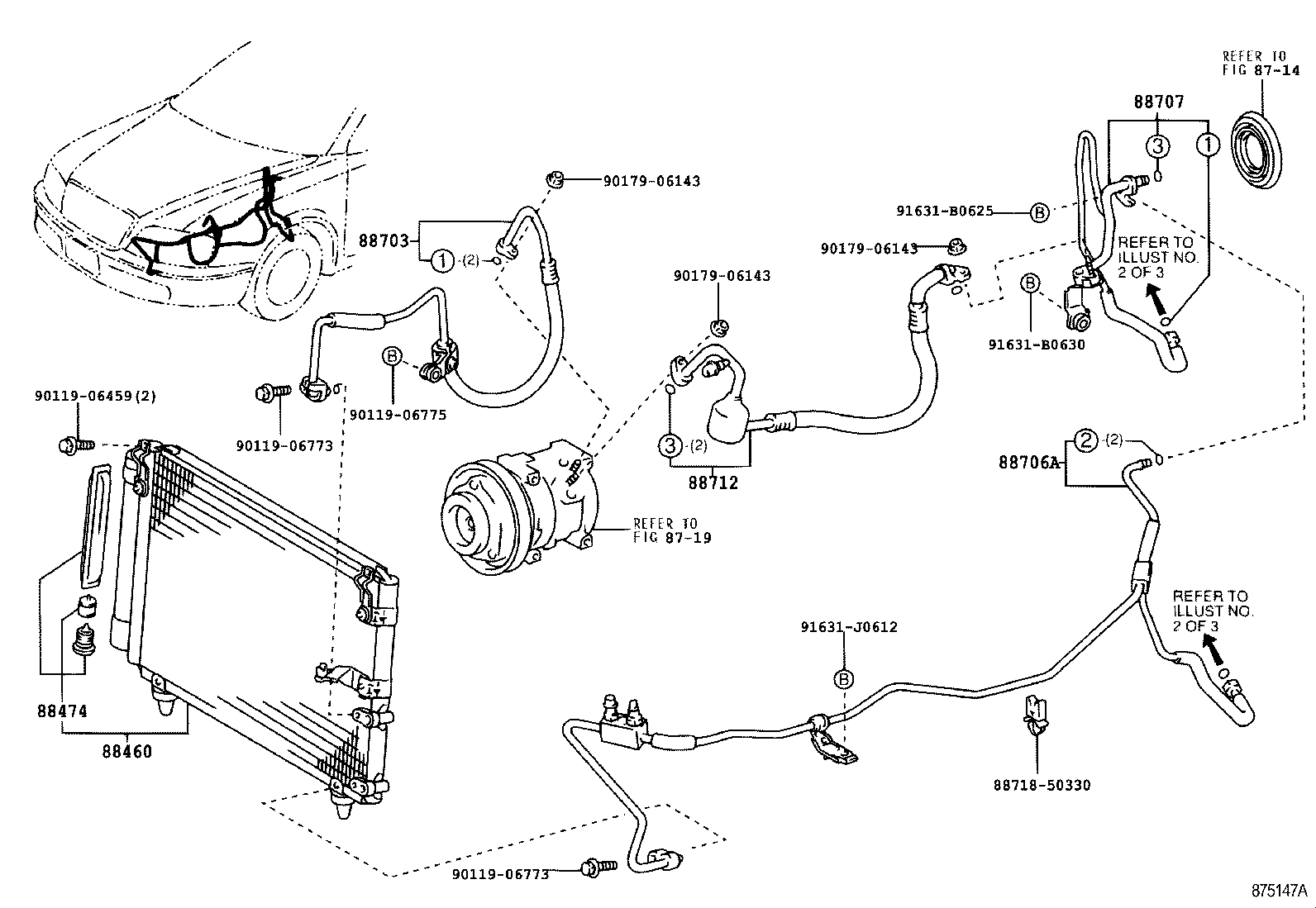

Figure 873764A 873764A 1999-09 → 2001-08 Figure 873765A 873765A 1999-09 → 2001-08 Figure 875144C 875144C 2001-08 → — Figure 875147A 875147A 2001-08 → — Figure 873790 873790 1999-09 → 2001-08 Figure 873712 873712 1999-09 → 2001-08 Figure 874585 874585 2001-08 → — Figure 875167 875167 2001-08 → —

Part groups

PNCDescription
88374B Valve, Service, NO.1
88375B Cap, Service Valve, NO.1
88375D Cap, Service Valve, NO.2
88460 Condenser Assy, Cooler
88467 Cushion, Cooler Condenser, NO.1
88474 Dryer, Cooler
88645H Switch, Pressure NO.1
88703 Hose Sub-assy, Discharge
88706A Tube Sub-assy, Liquid, A
88707 Pipe Sub-assy, Suction
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88726A Pipe, Cooler Refrigerant Liquid, A
88726B Pipe, Cooler Refrigerant Liquid, B
88726C Pipe, Cooler Refrigerant Liquid, C
88727 Tube, Suction, NO.2
88727B Pipe, Cooler Refrigerant Suction, B
88727C Pipe, Cooler Refrigerant Suction, C
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
