Toyota Crown
1999-09 → 2003-12 · chassis JZS175 · catalogue 3312A0 · General
Discontinued model
Data version 2003-12

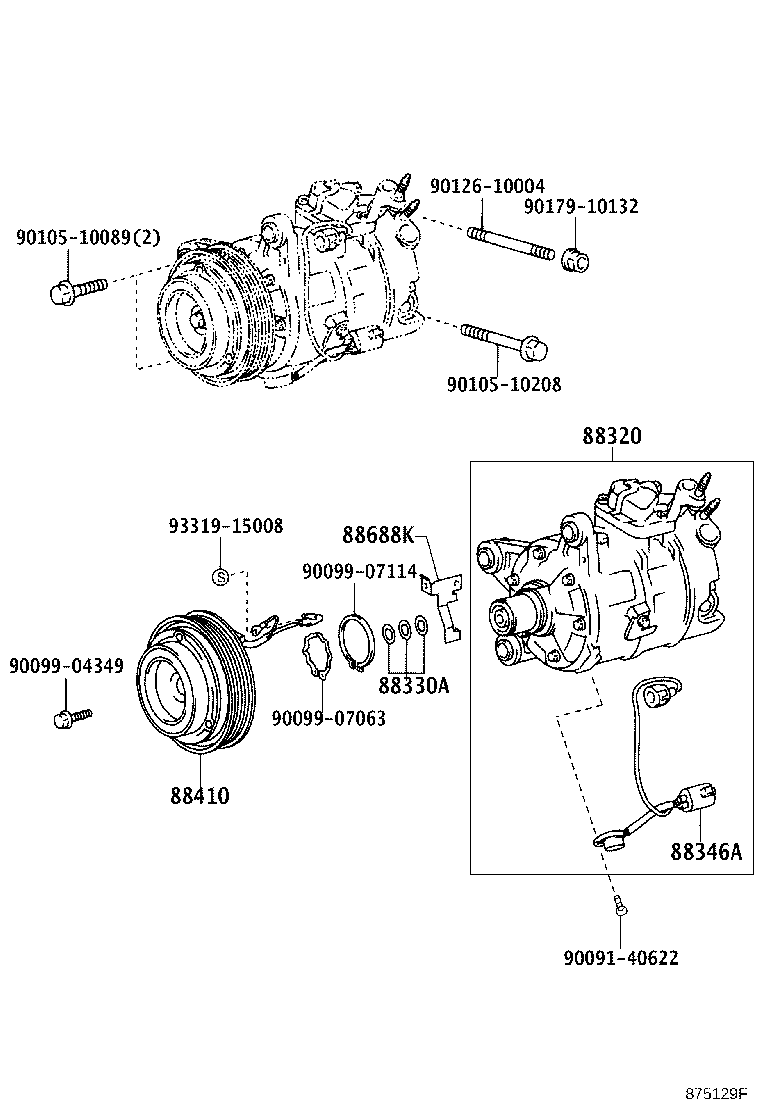

Heating & Air Conditioning - Compressor
8 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 88301 | Rotor Sub-assy, Magnet Clutch |
| 88302 | Stator Sub-assy, Magnet Clutch |
| 88320 | Compressor Assy, Cooler |
| 88330A | Washer (FOR MAGNET CLUTCH) |
| 88346A | Sensor, Compressor Pick UP |
| 88403 | Hub Sub-assy, Magnet Clutch |
| 88410 | Clutch Assy, Magnet |
| 88688K | Bracket, Cooler Compressor |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
