Toyota Crown
2004-11 → 2008-02 · chassis GRS182 · catalogue 3312B0 · General
Supported model
Data version 2008-07

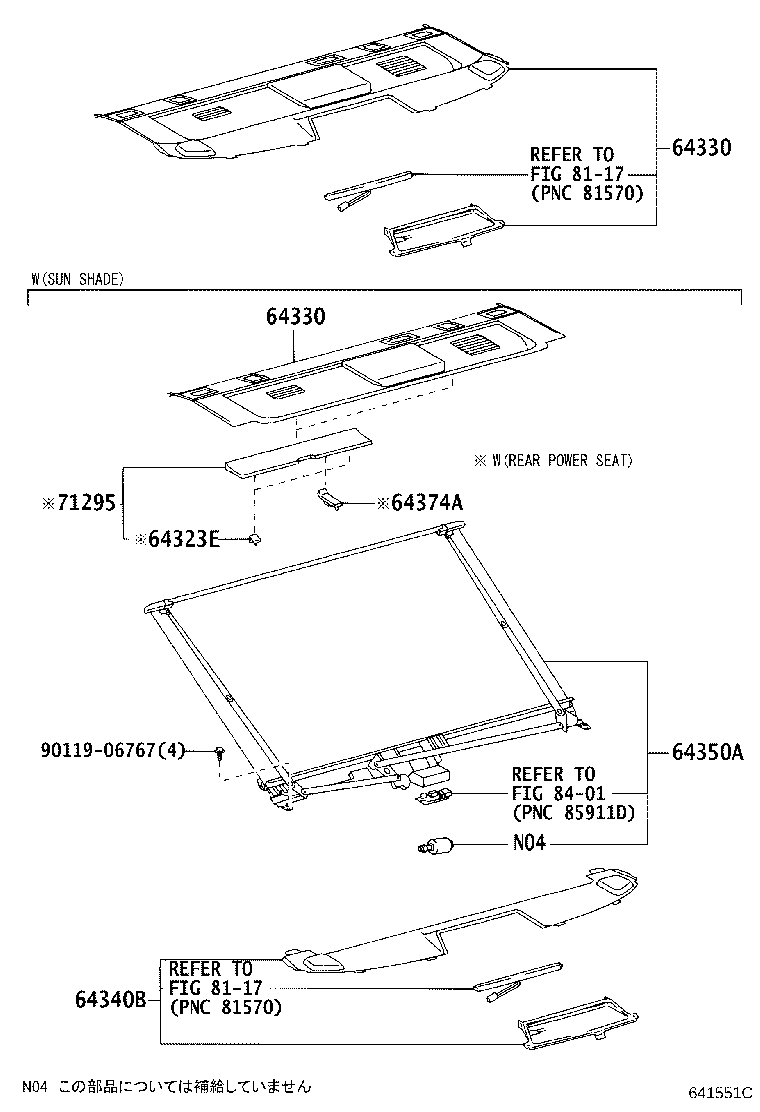

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 64323E — Clamp, Package Tray Trim | ||||
| 64323-30040 note |
Clamp, Package Tray Trim
2004-11 → 2005-09
ended
|
GRS182 | — | |
| 64323-30040 note |
Clamp, Package Tray Trim
2005-09 → 2008-02
ended
|
GRS182 | — | |
| 64330 — Panel Assy, Package Tray Trim | ||||
| 64330-30A10-A0 note |
Panel Assy, Package Tray Trim
2004-11 → 2005-09
ended
|
GRS182 | — | |
| 64330-30A10-B0 note |
Panel Assy, Package Tray Trim
2004-11 → 2005-09
ended
|
GRS182 | — | |
| 64330-30A40-A0 note |
Panel Assy, Package Tray Trim
2004-11 → 2005-09
ended
|
GRS182 | — | |
| 64330-30A40-B0 note |
Panel Assy, Package Tray Trim
2004-11 → 2005-09
ended
|
GRS182 | — | |
| 64330-30A50-A0 note |
Panel Assy, Package Tray Trim
2004-11 → 2005-09
ended
|
GRS182 | — | |
| 64330-30A50-B0 note |
Panel Assy, Package Tray Trim
2004-11 → 2005-09
ended
|
GRS182 | — | |
| 64330-30A10-A1 note |
Panel Assy, Package Tray Trim
2005-09 → 2008-02
ended
|
GRS182 | — | |
| 64330-30A10-B2 note |
Panel Assy, Package Tray Trim
2005-09 → 2008-02
ended
|
GRS182 | — | |
| 64330-30A40-A1 note |
Panel Assy, Package Tray Trim
2005-09 → 2008-02
ended
|
GRS182 | — | |
| 64330-30A40-B2 note |
Panel Assy, Package Tray Trim
2005-09 → 2008-02
ended
|
GRS182 | — | |
| 64330-30A50-A1 note |
Panel Assy, Package Tray Trim
2005-09 → 2008-02
ended
|
GRS182 | — | |
| 64330-30A50-B2 note |
Panel Assy, Package Tray Trim
2005-09 → 2008-02
ended
|
GRS182 | — | |
| 64340B — Panel Assy, Package Tray Trim, NO.2 | ||||
| 64340-30030-A0 note |
Panel Assy, Package Tray Trim, NO.2
2004-11 → 2005-09
ended
|
GRS182 | — | |
| 64340-30030-A0 note |
Panel Assy, Package Tray Trim, NO.2
2004-11 → 2005-09
ended
|
GRS182 | — | |
| 64340-30030-B0 note |
Panel Assy, Package Tray Trim, NO.2
2004-11 → 2005-09
ended
|
GRS182 | — | |
| 64340-30030-B0 note |
Panel Assy, Package Tray Trim, NO.2
2004-11 → 2005-09
ended
|
GRS182 | — | |
| 64340-30030-A1 note |
Panel Assy, Package Tray Trim, NO.2
2005-09 → 2008-02
ended
|
GRS182 | — | |
| 64340-30030-A1 note |
Panel Assy, Package Tray Trim, NO.2
2005-09 → 2008-02
ended
|
GRS182 | — | |
| 64340-30030-B2 note |
Panel Assy, Package Tray Trim, NO.2
2005-09 → 2008-02
ended
|
GRS182 | — | |
| 64340-30030-B2 note |
Panel Assy, Package Tray Trim, NO.2
2005-09 → 2008-02
ended
|
GRS182 | — | |
| 64350A — Shade Assy, Rear Window | ||||
| 64350-30030 note |
Shade Assy, Rear Window
2004-11 → 2005-09
ended
|
GRS182 | — | |
| 64350-30030 note |
Shade Assy, Rear Window
2004-11 → 2005-09
ended
|
GRS182 | — | |
| 64350-30080 note |
Shade Assy, Rear Window
2005-09 → 2008-02
ended
|
GRS182 | — | |
| 64350-30080 note |
Shade Assy, Rear Window
2005-09 → 2008-02
ended
|
GRS182 | — | |
| 64374A — Support, Package Tray Trim | ||||
| 64374-30040 note |
Support, Package Tray Trim
2004-11 → 2005-09
ended
|
GRS182 | — | |
| 64374-30040 note |
Support, Package Tray Trim
2005-09 → 2008-02
ended
|
GRS182 | — | |
| 71295 — Plate, Rear Seatback, Upper RH | ||||
| 71295-30100-A1 note |
Plate, Rear Seatback, Upper RH
2004-11 → 2005-09
ended
|
GRS182 | — | |
| 71295-30100-B2 note |
Plate, Rear Seatback, Upper RH
2004-11 → 2005-09
ended
|
GRS182 | — | |
| 71295-30100-A1 note |
Plate, Rear Seatback, Upper RH
2005-09 → 2008-02
ended
|
GRS182 | — | |
| 71295-30100-B3 note |
Plate, Rear Seatback, Upper RH
2005-09 → 2008-02
ended
|
GRS182 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
