Toyota Crown

2004-11 → 2008-02 · chassis GRS182 · catalogue 3312B0 · General

Supported model Data version 2008-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator & Water Outlet

45 part groups · 2 illustrations

Illustrations

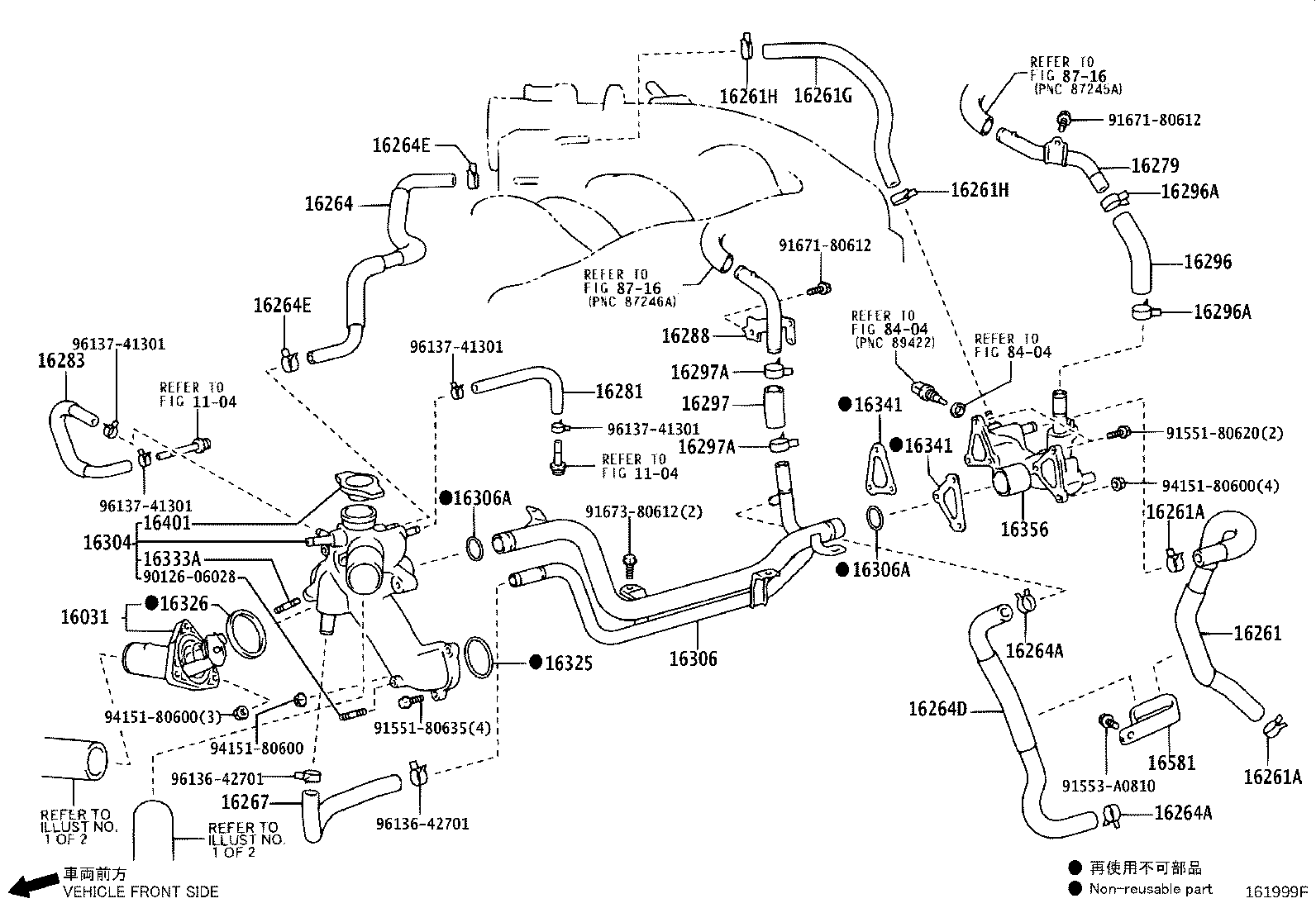

Figure 162782E 162782E 2004-11 → — Figure 161999F 161999F 2004-11 → —

Part groups

PNCDescription
16031 Water Inlet Sub-assy, W/Thermostat
16261 Hose, Water By-pass
16261A Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
16261G Hose, Water By-pass, NO.1
16261H Clip(FOR WATER BY-PASS HOSE NO.1)
16264 Hose, Water By-pass, NO.2
16264A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
16264D Hose, Water By-pass, NO.2
16264E Clip(FOR WATER BY-PASS HOSE NO.2)
16267 Hose, Water By-pass, NO.3
16279 Pipe, Water By-pass, NO.3
16281 Hose, Water By-pass, NO.4
16283 Hose, Water By-pass, NO.6
16288 Pipe, Water By-pass, NO.4
16296 Hose, Water By-pass, NO.8
16296A Clip(FOR WATER BY-PASS HOSE NO.8)
16297 Hose, Water By-pass, NO.9
16297A Clip(FOR WATER BY-PASS HOSE NO.9)
16304 Outlet Sub-assy, Water
16306 Pipe Sub-assy, Water Outlet
16306A Ring, O(FOR WATER OUTLET PIPE)
16325 Gasket, Water Inlet Housing, NO.1
16326 Gasket, Water Inlet Housing, NO.2
16333A Bolt, Stud(FOR WATER OUTLET HOUSING)
16341 Gasket, Water Outlet
16356 Joint, Water By-pass, Rear
16361 Fan
16361B Fan, NO.2
16363 Motor, Cooling Fan
16363A Motor, Cooling Fan, NO.2
16400 Radiator Assy
16400A Cock Sub-assy, Radiator Drain
16400F Packing(FOR RADIATOR DRAIN COCK)
16401 Cap Sub-assy, Radiator
16471 Cap Sub-assy, Reserve Tank
16523A Cushion, Radiator Support
16535 Support, Radiator, Lower
16565 Hose, Reserve Tank Inlet
16565A Clip
16571C Hose, Radiator, NO.1
16571D Clip, Radiator Hose, NO.1
16572D Hose, Radiator, NO.2
16572E Clip, Radiator Hose, NO.2
16581 Clamp, Hose(FOR WATER HOSE)
16711 Shroud, Fan
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
