Toyota Crown

2004-11 → 2008-02 · chassis GRS182 · catalogue 3312B0 · General

Supported model Data version 2008-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood Lock & Hinge

13 part groups · 2 illustrations

Illustrations

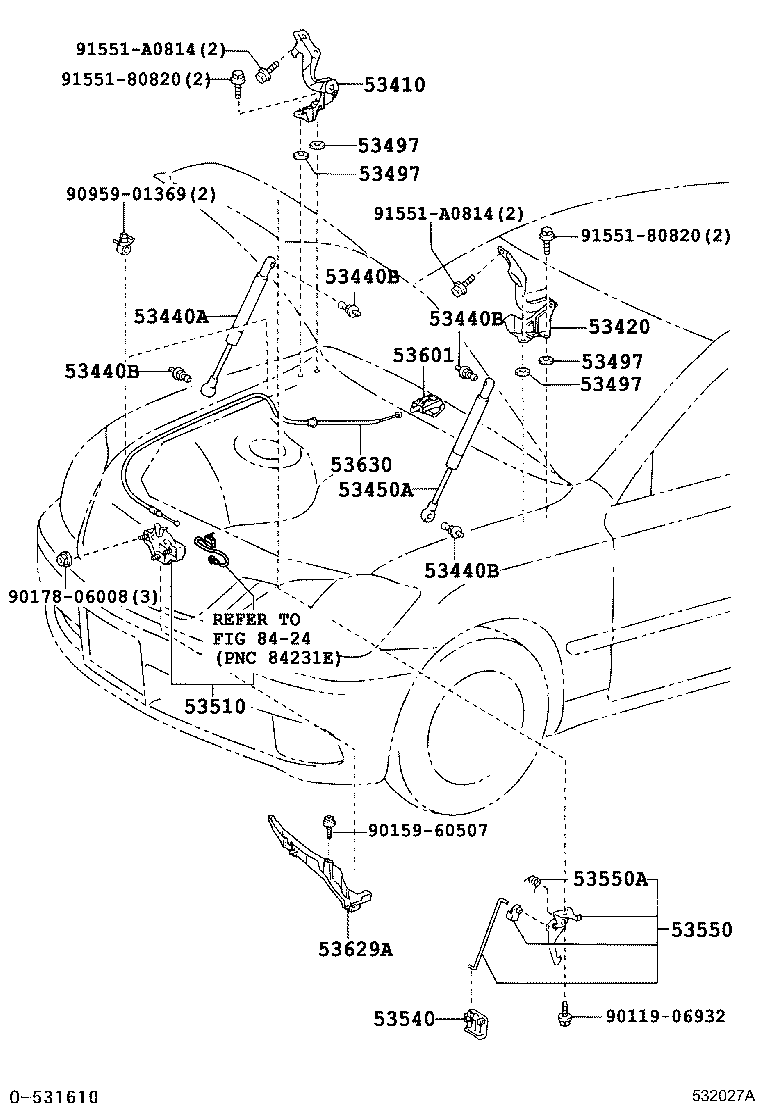

Figure 531610E 531610E 2004-11 → 2005-09 Figure 532027A 532027A 2005-09 → —

Part groups

PNCDescription
53410 Hinge Assy, Hood, RH
53420 Hinge Assy, Hood, LH
53440A Support Assy, Hood, RH
53440B Bolt, Hood Support, NO.1
53450A Support Assy, Hood, LH
53497 Pad, Hood Hinge, NO.1
53510 Lock Assy, Hood
53540 Lever Assy, Auxiliary Catch Release
53550 Hook Assy, Hood Auxiliary Catch
53550A Spring, Torsion(FOR HOOD LOCK HOOK)
53601 Lever Sub-assy, Hood Lock Control
53629A Cover, Hood Lock Control Cable
53630 Cable Assy, Hood Lock Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
