Toyota Crown

2004-11 → 2008-02 · chassis GRS182 · catalogue 3312B0 · General

Supported model Data version 2008-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Insulator

8 part groups · 2 illustrations

Illustrations

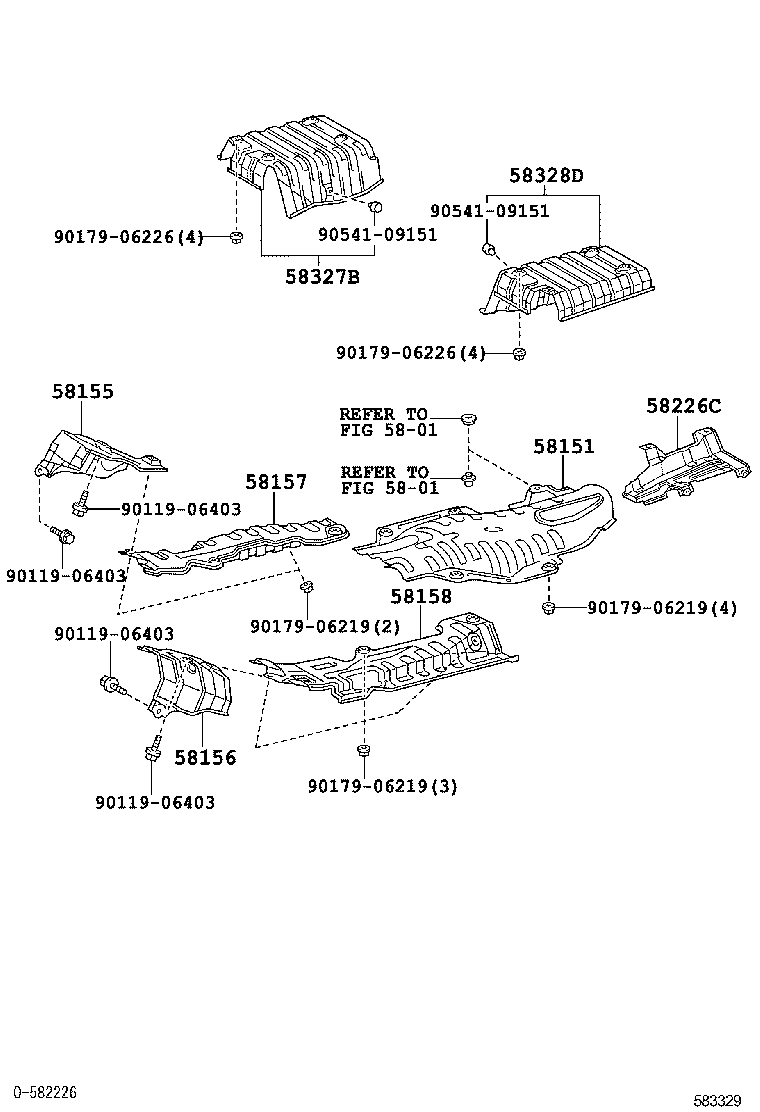

Figure 583286 583286 2004-11 → 2005-09 Figure 583329 583329 2005-09 → —

Part groups

PNCDescription
58151 Insulator, Front Floor Heat, NO.1
58155 Insulator, Front Floor Heat, NO.3
58156 Insulator, Front Floor Heat, NO.4
58157 Insulator, Front Floor Heat, NO.5
58158 Insulator, Front Floor Heat, NO.6
58226C Plate, Air Guide, Outside RH
58327B Insulator, Main Muffler Heat
58328D Insulator, Main Muffler Heat, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
