Toyota Crown

2004-11 → 2008-02 · chassis GRS182 · catalogue 3312B0 · General

Supported model Data version 2008-07

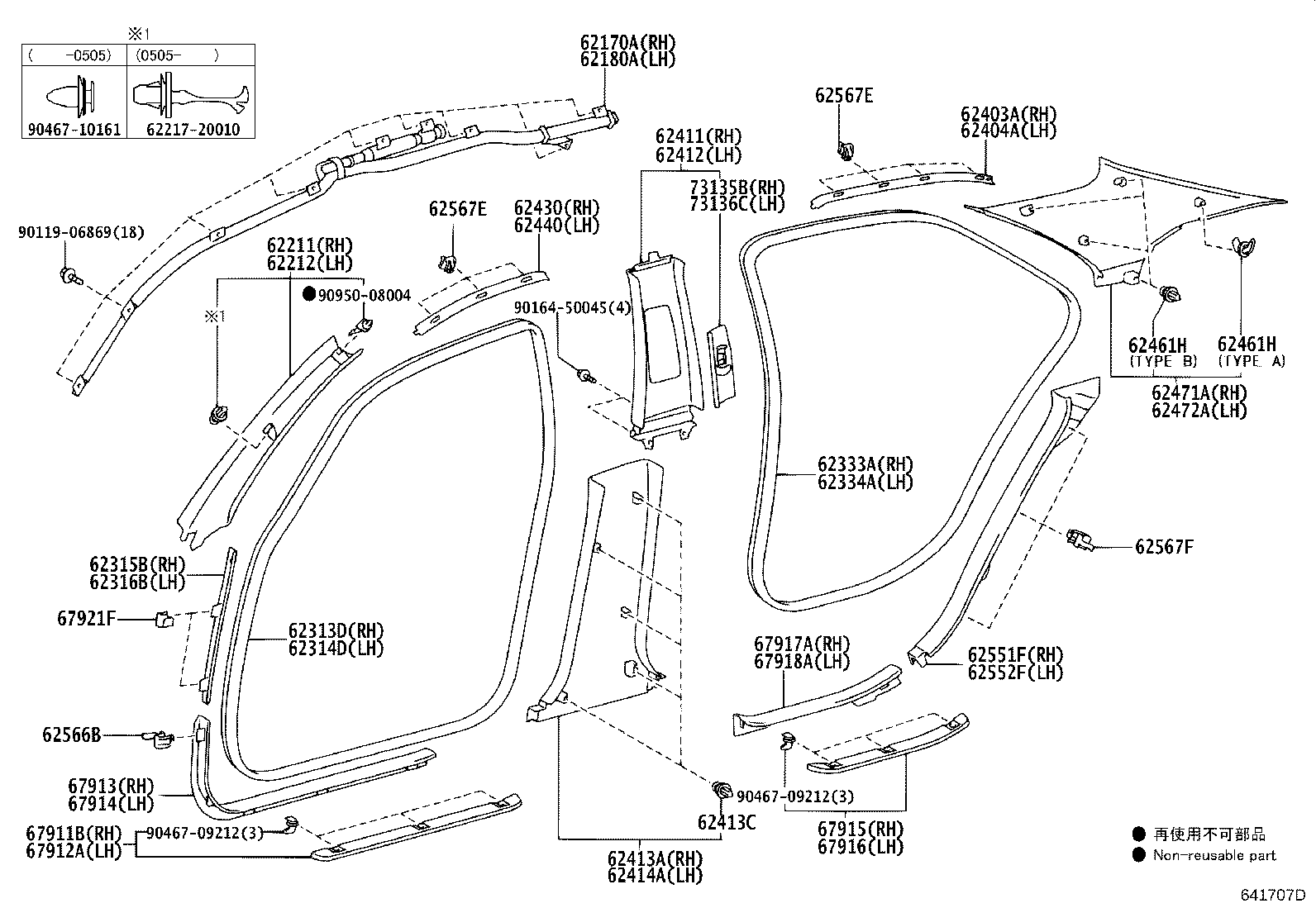

Inside Trim Board & Door Opening Trim Moulding

38 part groups · 2 illustrations

PNC	Description
62170A	Airbag Assy, Curtain Shield, RH
62180A	Airbag Assy, Curtain Shield, LH
62211	Garnish, Front Pillar, RH
62212	Garnish, Front Pillar, LH
62313D	Trim, Front Door Opening, RH
62314D	Trim, Front Door Opening, LH
62315B	Cover, Front Door Opening Trim, RH
62316B	Cover, Front Door Opening Trim, LH
62333A	Trim, Rear Door Opening, RH
62334A	Trim, Rear Door Opening, LH
62403A	Garnish Sub-assy, Roof Side Rail, RH
62404A	Garnish Sub-assy, Roof Side Rail, LH
62411	Garnish, Center Pillar, RH
62412	Garnish, Center Pillar, LH
62413A	Garnish, Center Pillar, Lower RH
62413C	Clip (FOR CENTER LOWER GARNISH)
62414A	Garnish, Center Pillar, Lower LH
62430	Garnish Assy, Roof Side Rail, RH
62440	Garnish Assy, Roof Side Rail, LH
62461H	Clip (FOR ROOF SIDE INNER GARNISH)
62471A	Garnish, Roof Side, Inner RH
62472A	Garnish, Roof Side, Inner LH
62551F	Garnish, Rear Seat Side, RH
62552F	Garnish, Rear Seat Side, LH
62566B	Clamp, Rocker Panel Inner Protecter, NO.1
62567E	Clamp, Rocker Panel Inner Protector, NO.2
62567F	Clamp, Rocker Panel Inner Protector, NO.2
67911B	Plate, Front Door Scuff, Outside, RH
67912A	Plate, Front Door Scuff, Outside LH
67913	Plate, Front Door Scuff, RH
67914	Plate, Front Door Scuff, LH
67915	Plate, Rear Door Scuff, Outside RH
67916	Plate, Rear Door Scuff, Outside LH
67917A	Plate, Rear Door Scuff, RH
67918A	Plate, Rear Door Scuff, LH
67921F	Retainer, Front Door Scuff Plate
73135B	Cover, Shoulder Belt Anchor, RH
73136C	Cover, Shoulder Belt Anchor, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
