Toyota Crown

2004-11 → 2008-02 · chassis GRS182 · catalogue 3312B0 · General

Supported model Data version 2008-07

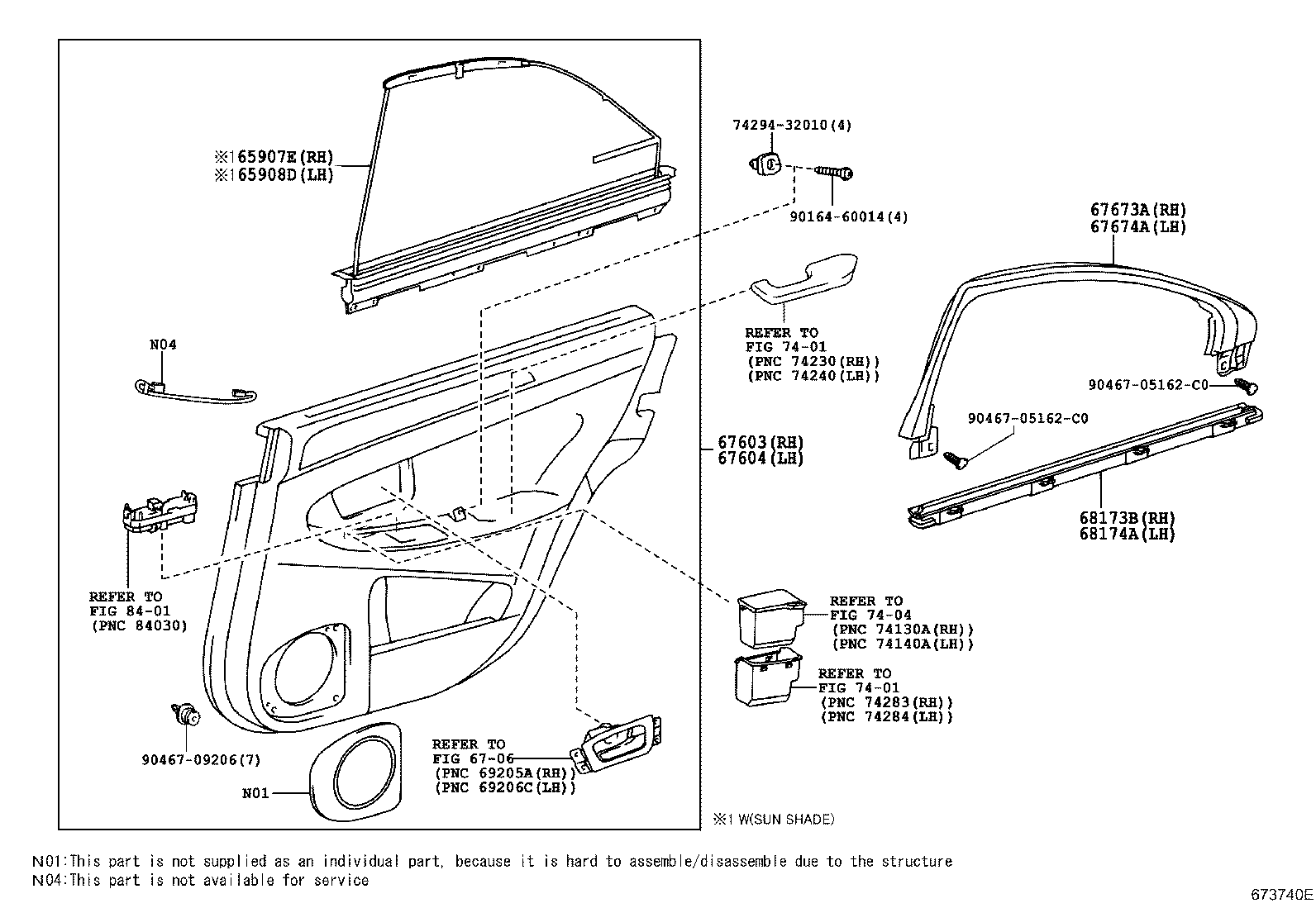

Rear Door Panel & Glass

39 part groups · 2 illustrations

PNC	Description
65907E	Curtain Sub-assy, Rear RH
65908D	Curtain Sub-assy, Rear LH
67003	Panel Sub-assy, Rear Door, RH
67003C	Cushion, Rear Door Panel
67004	Panel Sub-assy, Rear Door, LH
67113	Panel, Rear Door, Outer RH
67114	Panel, Rear Door, Outer LH
67407E	Bar Sub-assy, Rear Door Window Division, RH
67408E	Bar Sub-assy, Rear Door Window Division, LH
67603	Board Sub-assy, Rear Door Trim, RH
67604	Board Sub-assy, Rear Door Trim, LH
67673A	Garnish, Rear Door Frame, RH
67674A	Garnish, Rear Door Frame, LH
67841E	Cover, Rear Door Service Hole, RH
67842E	Cover, Rear Door Service Hole, LH
67857B	Protector, Rear Door Panel, RH
67858B	Protector, Rear Door Panel, LH
67867D	Retainer, Rear Door Weatherstrip, RH
67868D	Retainer, Rear Door Weatherstrip, LH
67869D	Clip, Door Weatherstrip
67871	Weatherstrip, Rear Door, RH
67872	Weatherstrip, Rear Door, LH
67895C	Weatherstrip, Rear Door, NO.3 RH
67896	Weatherstrip, Rear Door, NO.3 LH
67923B	Cushion, Rear Door Stiffener, NO.1
68103	Glass Sub-assy, Rear Door, RH
68104	Glass Sub-assy, Rear Door, LH
68123B	Glass, Rear Door Quarter Window, RH
68124B	Glass, Rear Door Quarter Window, LH
68142B	Run, Rear Door Window, RH
68152C	Run, Rear Door Glass, LH
68173B	Weatherstrip, Rear Door Glass, Inner RH
68174A	Weatherstrip, Rear Door Glass, Inner LH
68188	Weatherstrip, Rear Door Quarter Window, RH
68189	Weatherstrip, Rear Door Quarter Window, LH
68621C	Cover, Rear Door Check, RH
68622A	Cover, Rear Door Check, LH
68630D	Check Assy, Rear Door, RH
68640A	Check Assy, Rear Door, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
