Toyota Crown
2004-11 → 2008-02 · chassis GRS182 · catalogue 3312B0 · General
Supported model
Data version 2008-07
Rear Combination Lamp

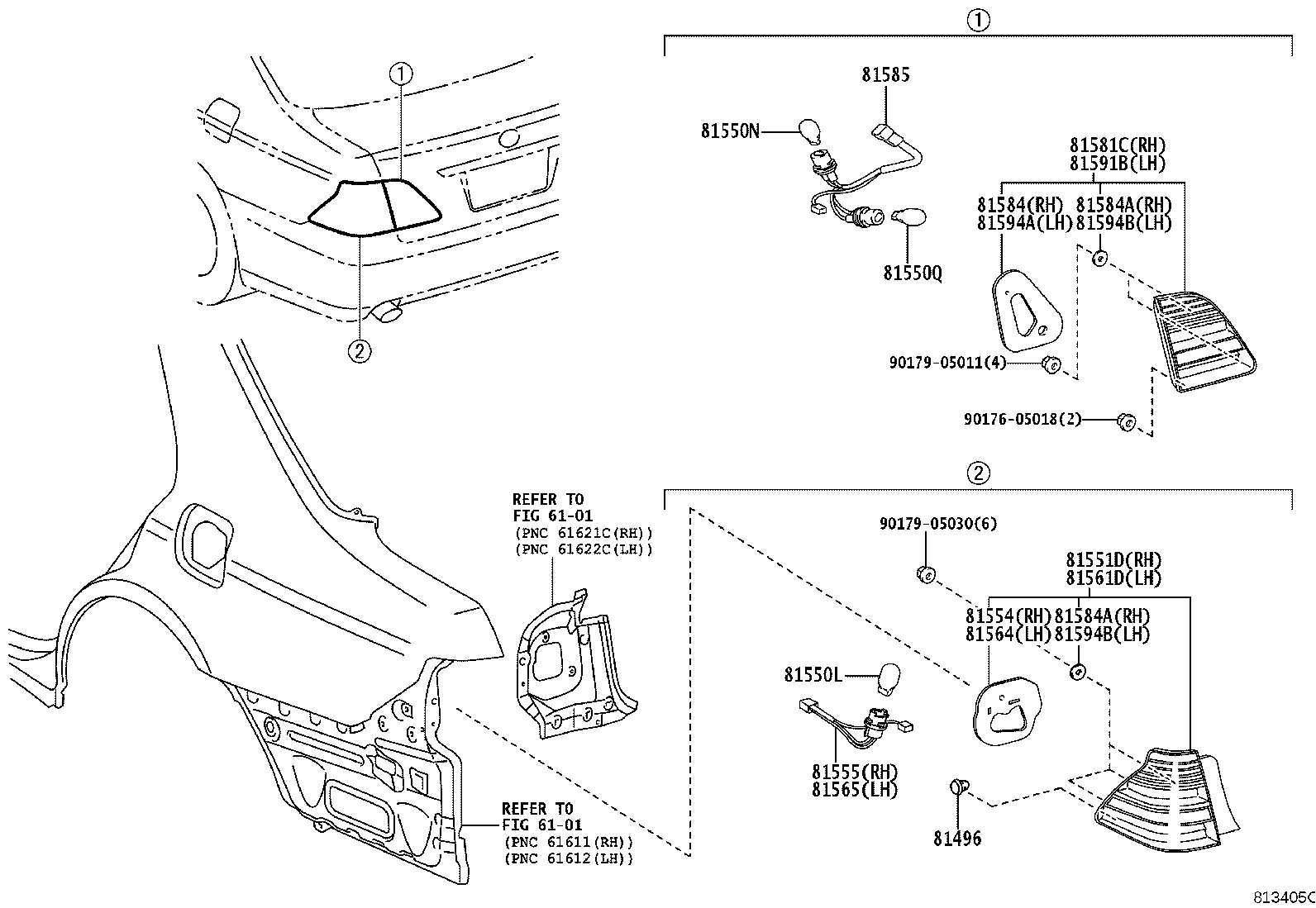

19 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 81496 | Guide, Rear Combination Lamp |
| 81550L | Bulb, Rear Turn Signal Lamp |
| 81550N | Bulb, Back UP Lamp |
| 81550Q | Bulb, Rear Fog Lamp, NO.1 |
| 81551A | Lens, Rear Combination Lamp, RH |
| 81551D | Lens & Body, Rear Combination Lamp, RH |
| 81554 | Gasket, Rear Combination Lamp Body, RH |
| 81555 | Socket & Wire Sub-assy, Rear Combination Lamp, RH |
| 81561A | Lens, Rear Combination Lamp, LH |
| 81561D | Lens & Body, Rear Combination Lamp, LH |
| 81564 | Gasket, Rear Combination Lamp Body, LH |
| 81565 | Socket & Wire Sub-assy, Rear Combination Lamp, LH |
| 81581C | Lens And Body, Rear Lamp, RH |
| 81584 | Packing, Rear Lamp RH |
| 81584A | Gasket, Rear Lamp RH |
| 81585 | Socket & Wire, Rear Lamp |
| 81591B | Lens And Body, Rear Lamp, LH |
| 81594A | Gasket, Rear Lamp LH |
| 81594B | Packing, Rear Lamp LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
