Toyota Crown

2004-11 → 2008-02 · chassis GRS182 · catalogue 3312B0 · General

Supported model Data version 2008-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

51 part groups · 9 illustrations

Illustrations

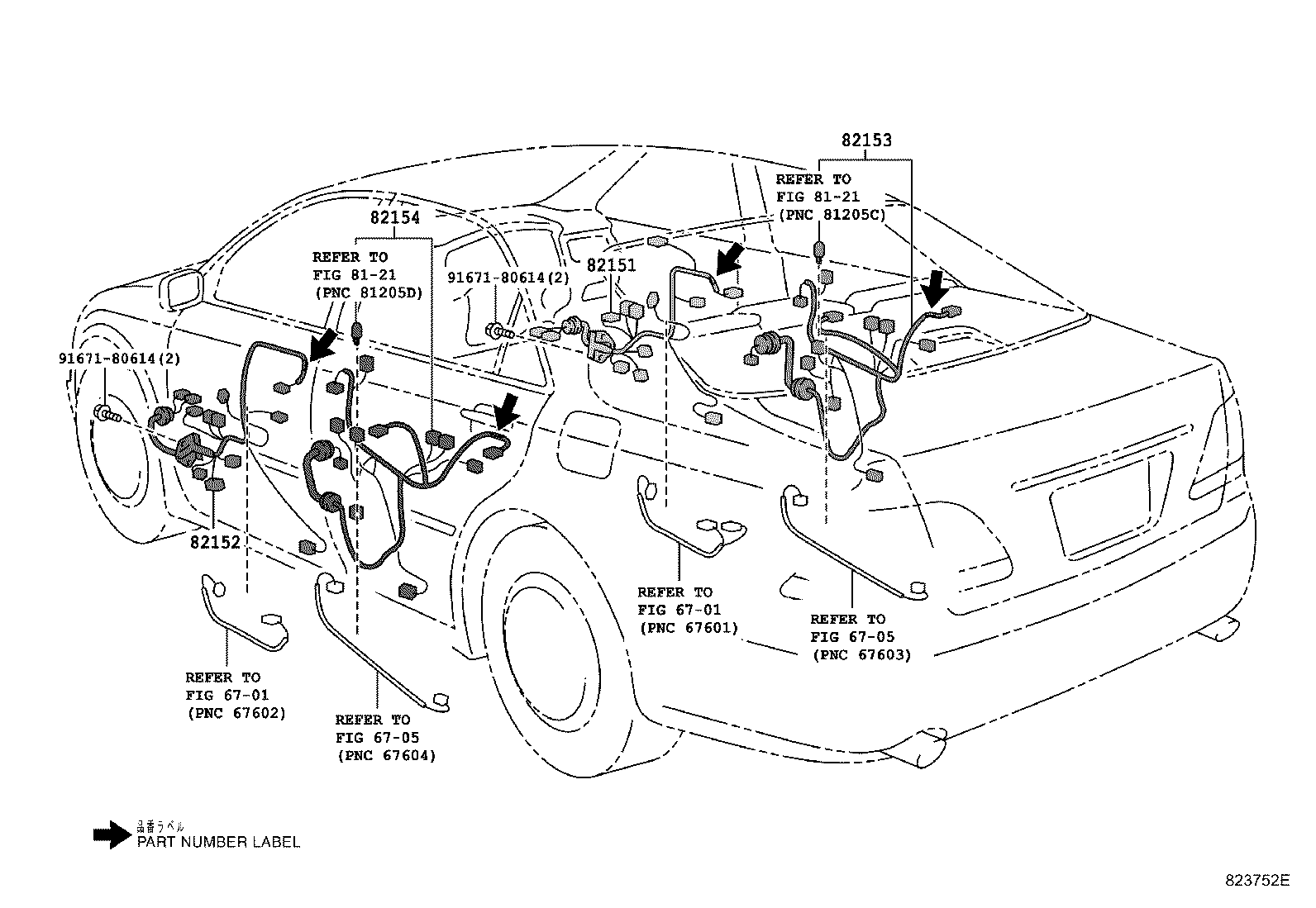

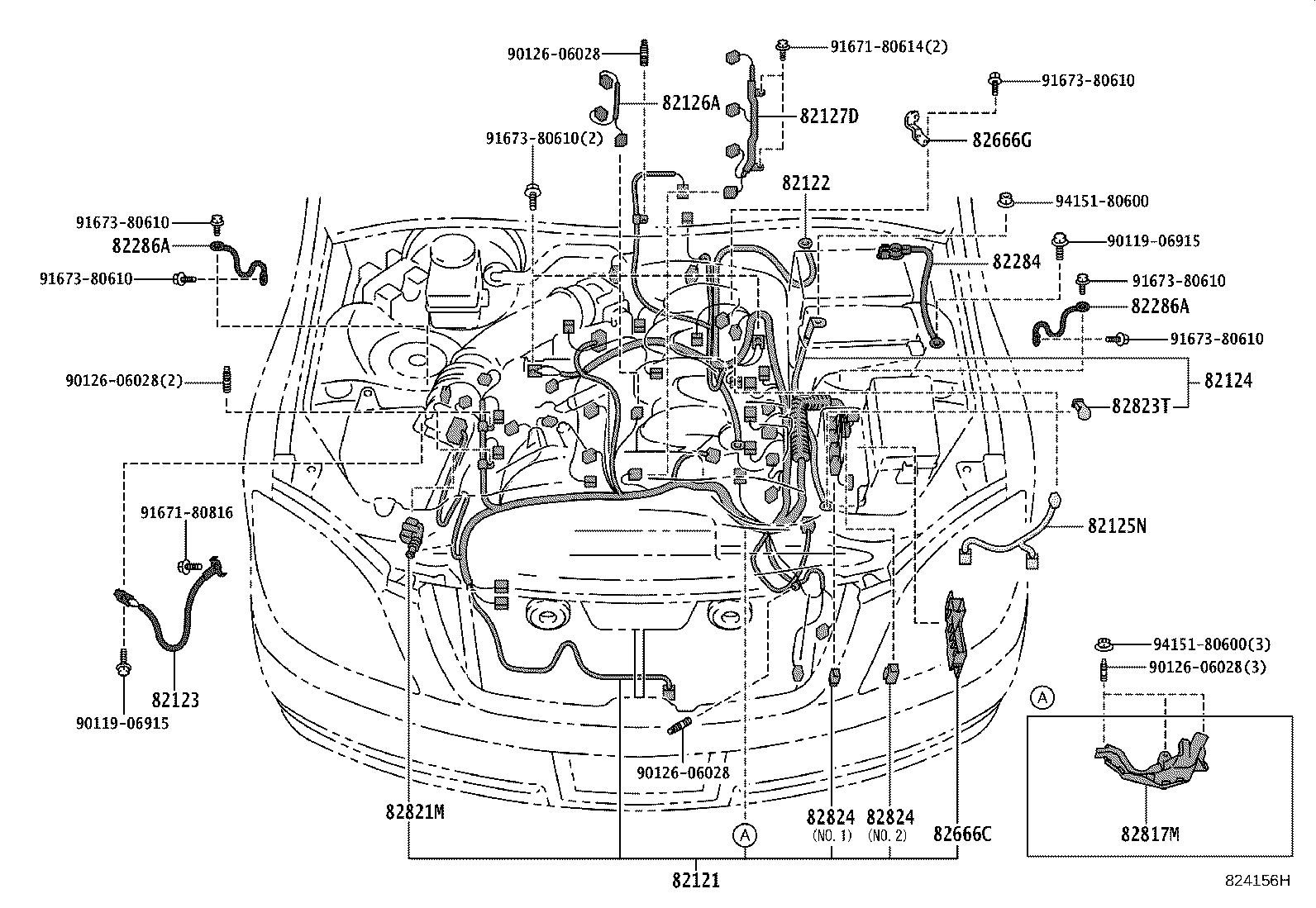

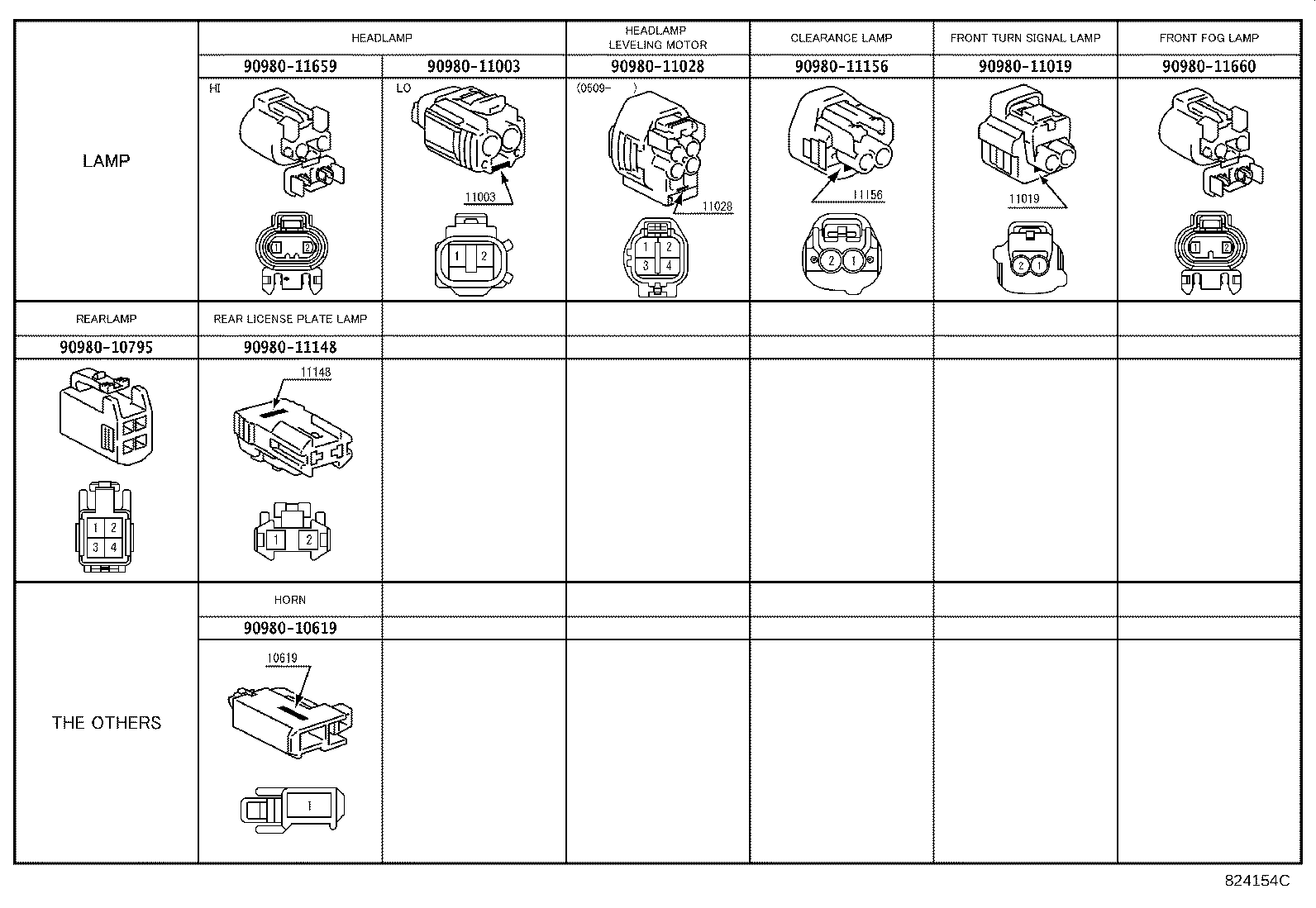

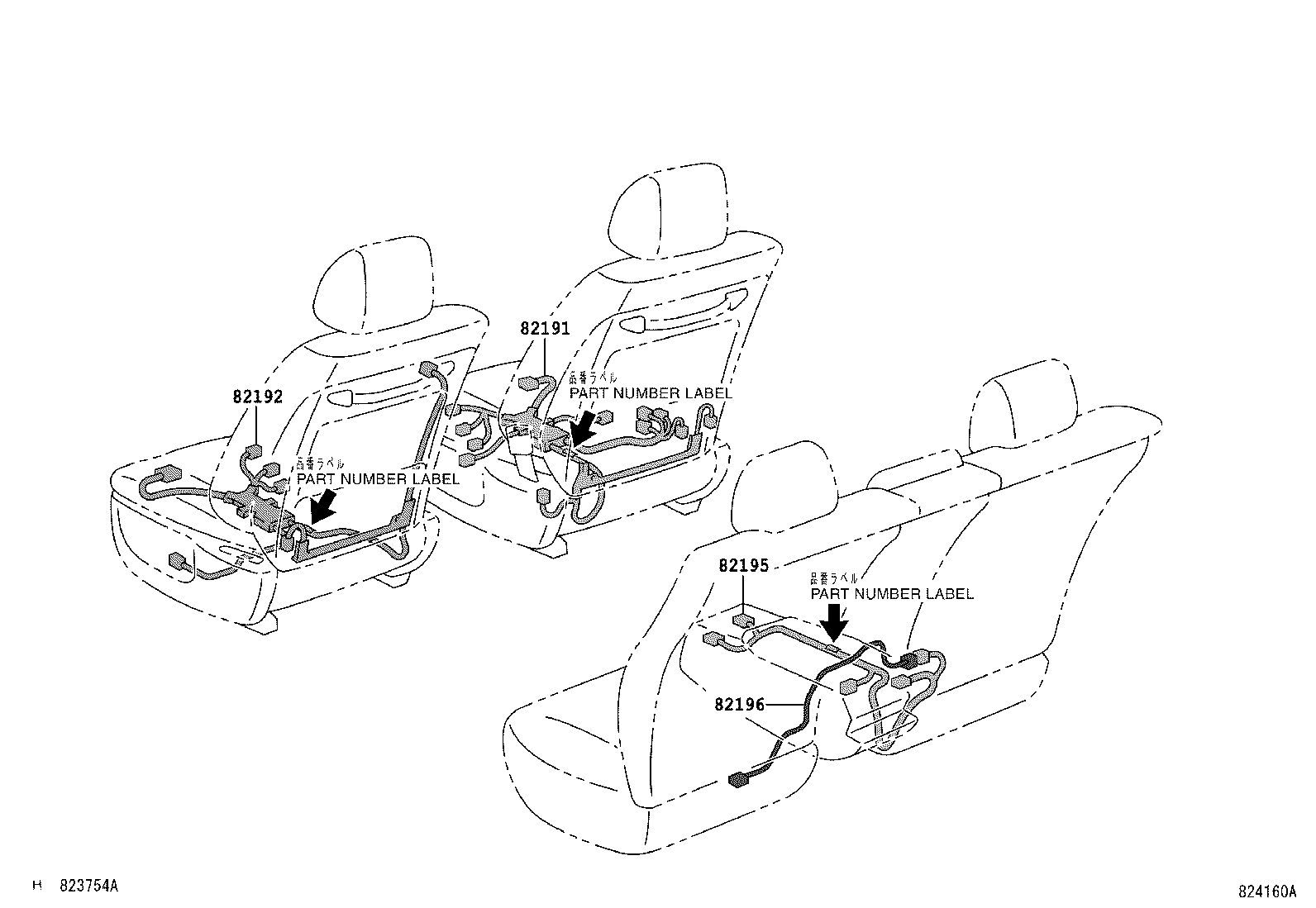

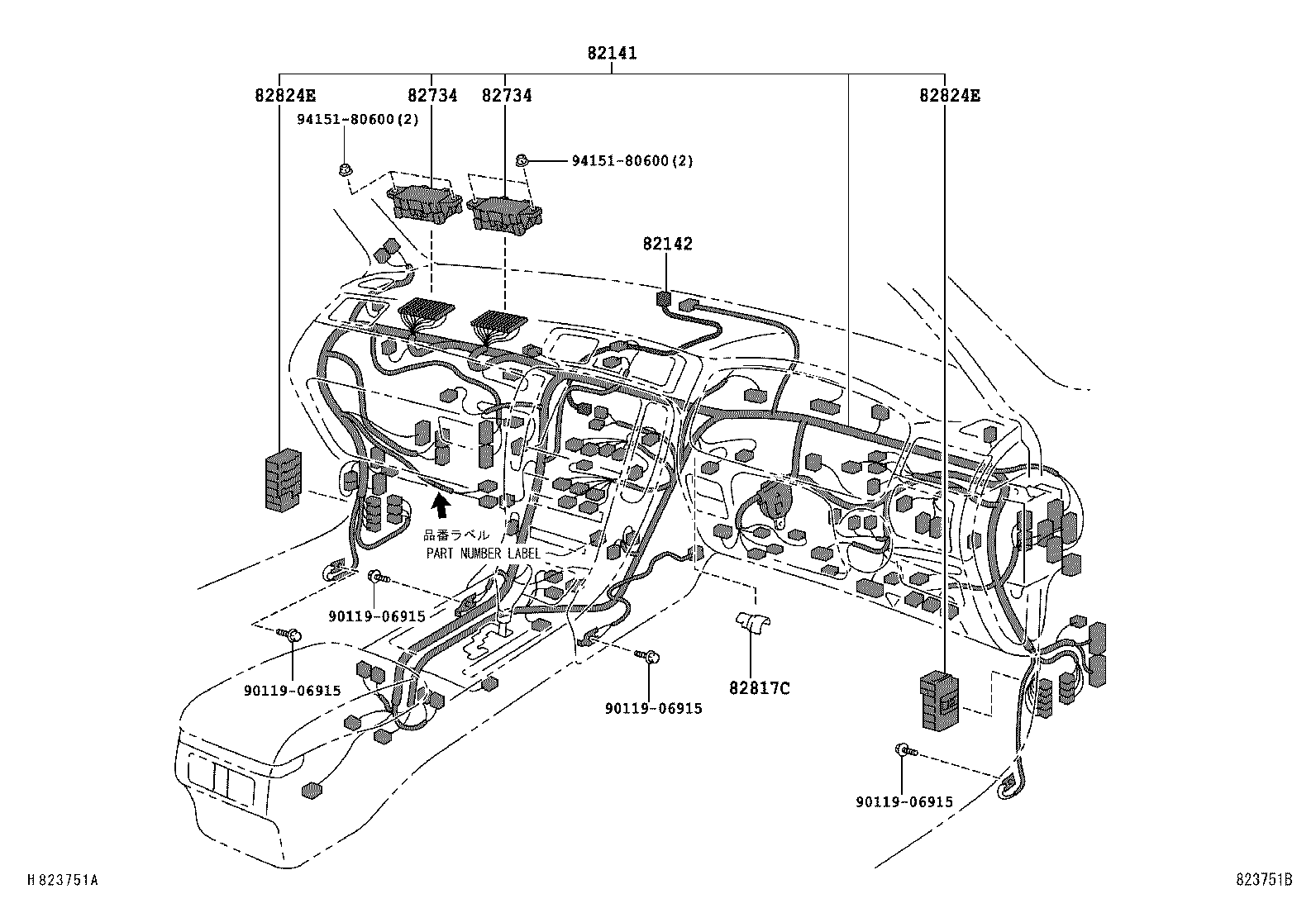

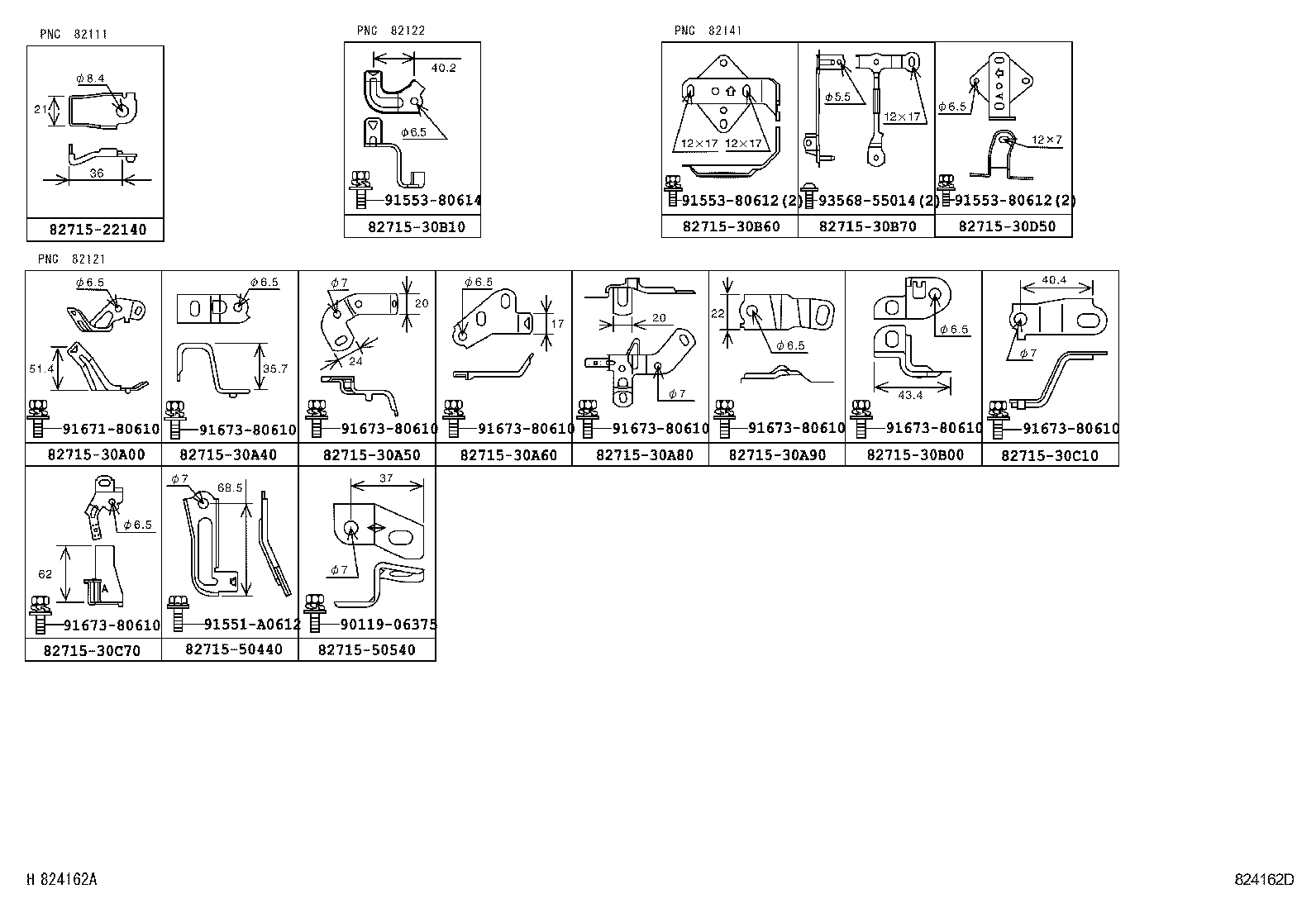

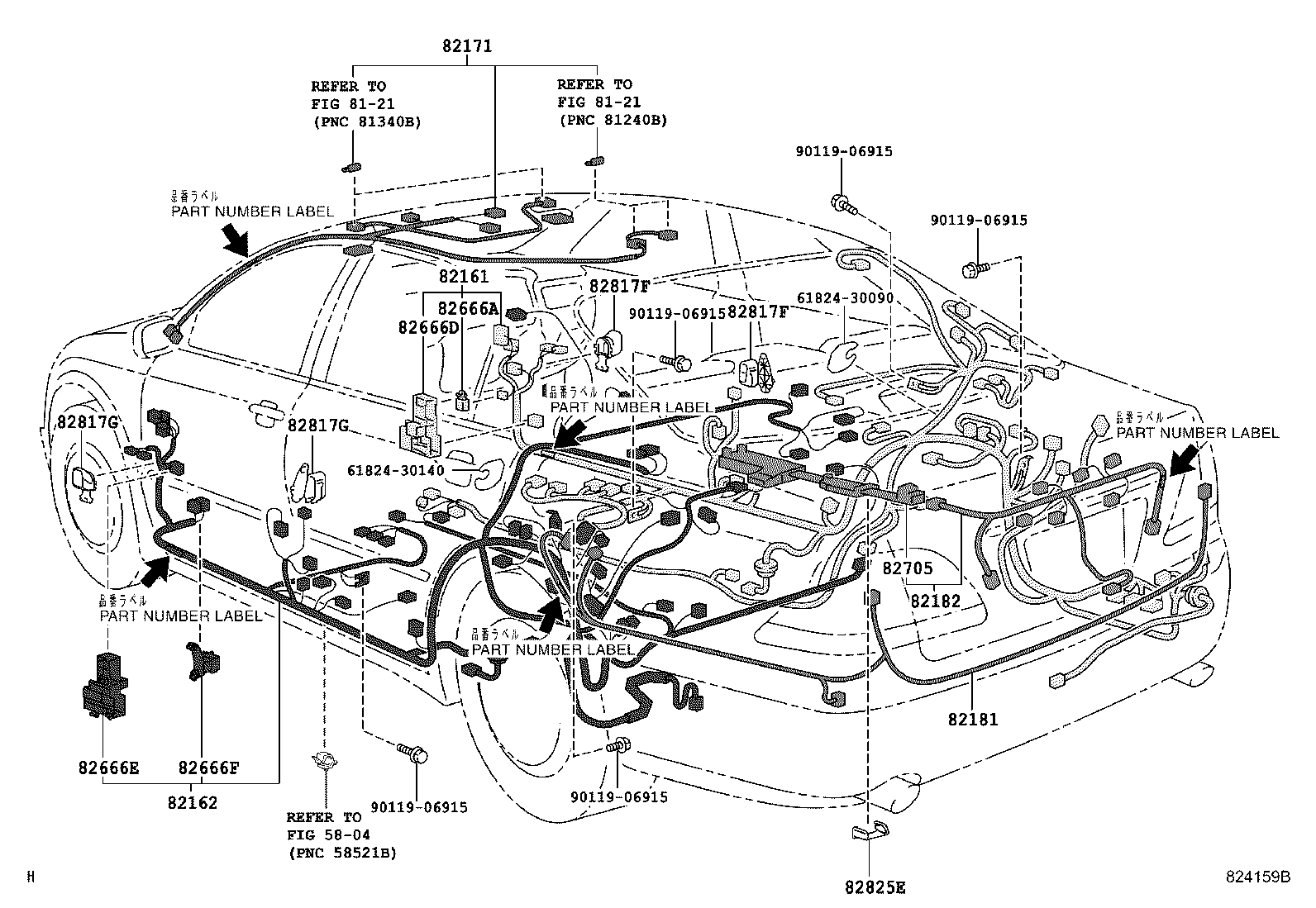

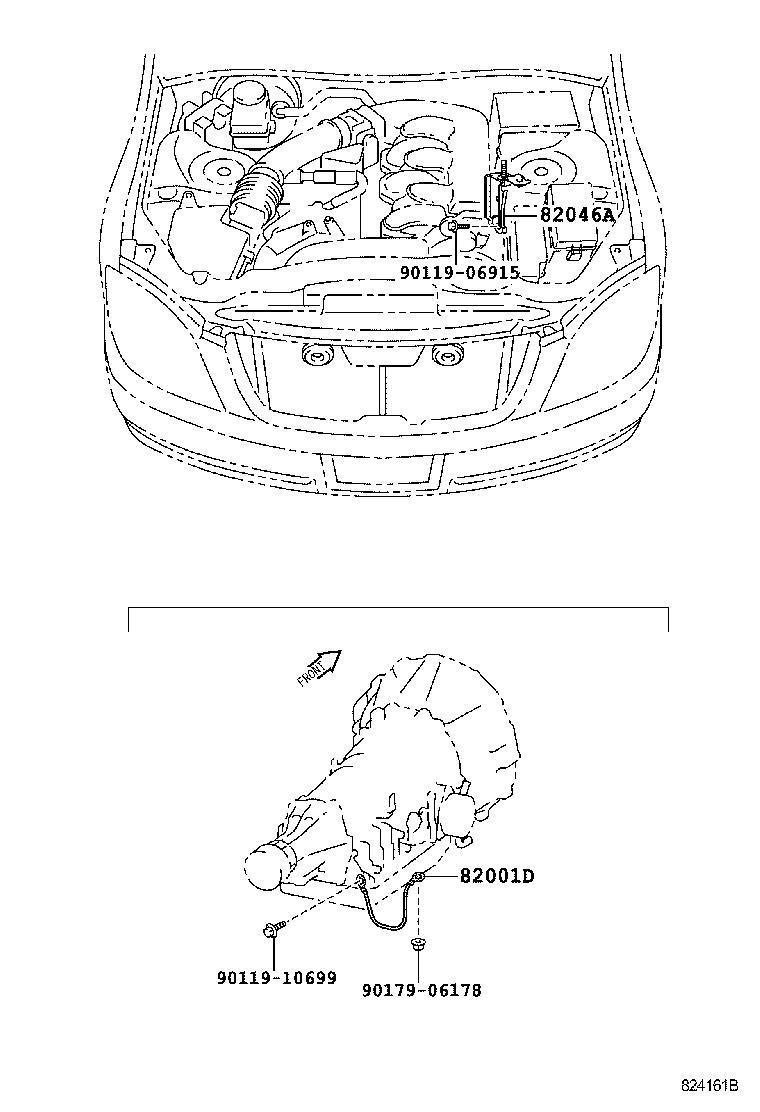

Figure 824522B 824522B 2004-11 → — Figure 824156H 824156H 2004-11 → — Figure 823751B 823751B 2004-11 → — Figure 823752E 823752E 2004-11 → — Figure 824159B 824159B 2004-11 → — Figure 824160A 824160A 2004-11 → — Figure 824162D 824162D 2004-11 → — Figure 824161B 824161B 2004-11 → — Figure 824154C 824154C 2004-11 → —

Part groups

PNCDescription
82001D Cable, Bond, NO.3
82046A Wire Sub-assy, Body Ground, NO.1
82111 Wire, Engine Room Main
82112 Wire, Engine Room, NO.2
82113 Wire, Engine Room, NO.3
82121 Wire, Engine
82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82125N Wire, Engine, NO.5
82126A Wire, Engine, NO.6
82127D Wire, Engine, NO.7
82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82162 Wire, Floor, NO.2
82171 Wire, Roof, NO.1
82181 Wire, Luggage Room, NO.1
82182 Wire, Luggage Room, NO.2
82191 Wire, Front Seat, RH
82192 Wire, Front Seat, LH
82195 Wire, Rear Seat, RH NO.2
82196 Wire, Rear Seat, LH NO.2
82284 Wire, Earth
82286A Wire, Earth, NO.2
82666A Holder, Connector NO.2
82666C Holder, Connector NO.4
82666D Holder, Connector NO.5
82666E Holder, Connector NO.6
82666F Holder, Connector NO.7
82666G Holder, Connector NO.8
82671 Block, Junction
82705 Spool Sub-assy, Wiring Harness
82734 Block, Center Junction
82817C Protector, Wiring Harness, NO.4
82817F Protector, Wiring Harness, NO.7
82817G Protector, Wiring Harness, NO.8
82817M Protector, Wiring Harness, NO.12
82821A Cover, Connector
82821E Cover, Connector
82821H Cover, Connector
82821M Cover, Connector
82823T Cap, Alternator Terminal
82824 Connector, Wiring Harness
82824E Connector, Wiring Harness
82825E Connector, Wiring Harness
89656A Wire, Power Steering Earth
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
