Toyota Crown

2004-11 → 2008-02 · chassis GRS182 · catalogue 3312B0 · General

Supported model Data version 2008-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp Cleaner

19 part groups · 2 illustrations

Illustrations

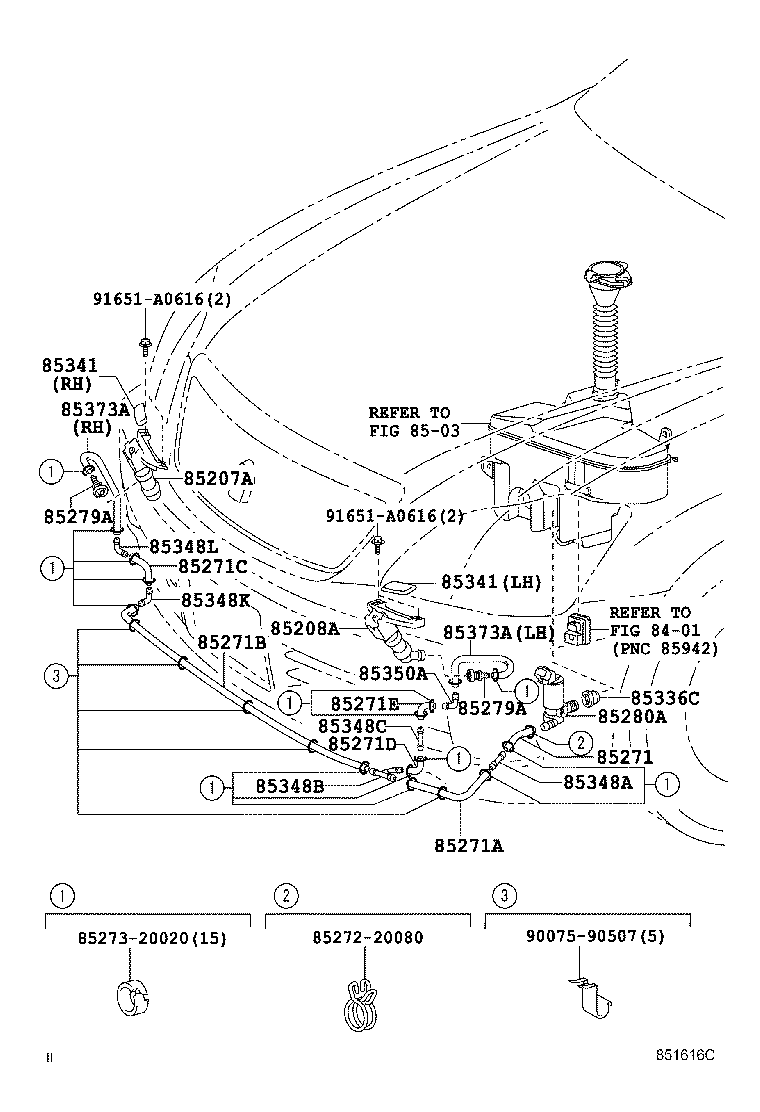

Figure 851520B 851520B 2004-11 → 2005-05 Figure 851616C 851616C 2005-05 → —

Part groups

PNCDescription
85207A Actuator Sub-assy, Headlamp Washer, RH
85208A Actuator Sub-assy, Headlamp Washer, LH
85271 Hose, Headlamp Cleaner, NO.1
85271A Hose, Headlamp Cleaner, NO.2
85271B Hose, Headlamp Cleaner, NO.3
85271C Hose, Headlamp Cleaner, NO.4
85271D Hose, Headlamp Cleaner, NO.5
85271E Hose, Headlamp Cleaner, NO.6
85279A Joint, Headlamp Cleaner Hose
85280A Motor And Pump Assy, Headlamp Cleaner
85336C Packing, Headlamp Cleaner Motor
85341 Nozzle, Headlamp Cleaner Washer
85348A Joint, Headlamp Cleaner Hose, NO.1
85348B Joint, Headlamp Cleaner Hose, NO.2
85348C Joint, Headlamp Cleaner Hose, NO.3
85348K Joint, Headlamp Cleaner Elbow, NO.1
85348L Joint, Headlamp Cleaner Elbow, NO.2
85350A Joint, Headlamp Cleaner Elbow, NO.3
85373A Hose, Headlamp Cleaner Washer (FROM JOINT TO NOZZLE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
