Heating & Air Conditioning - Cooler Piping

10 part groups · 3 illustrations

Illustrations

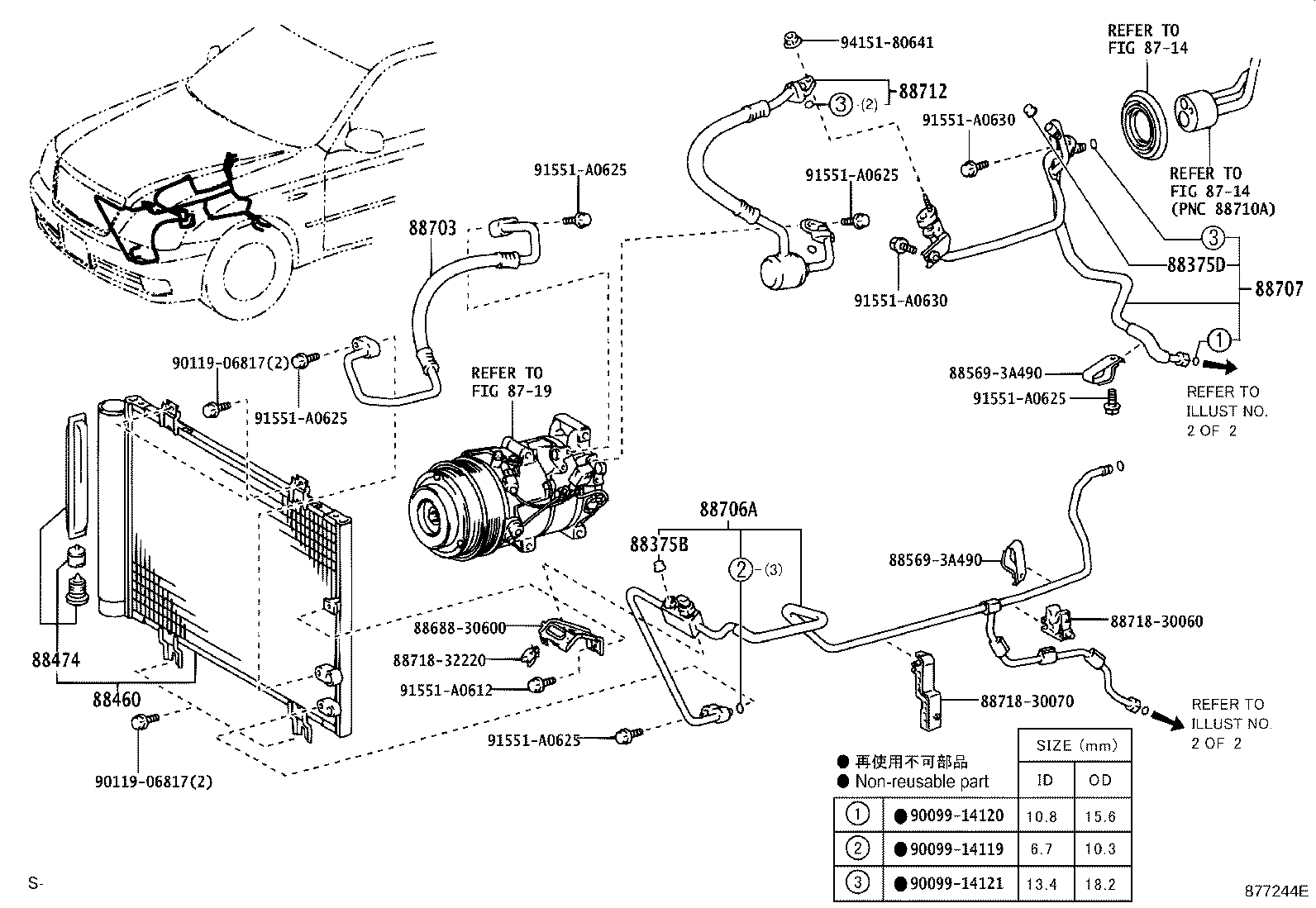

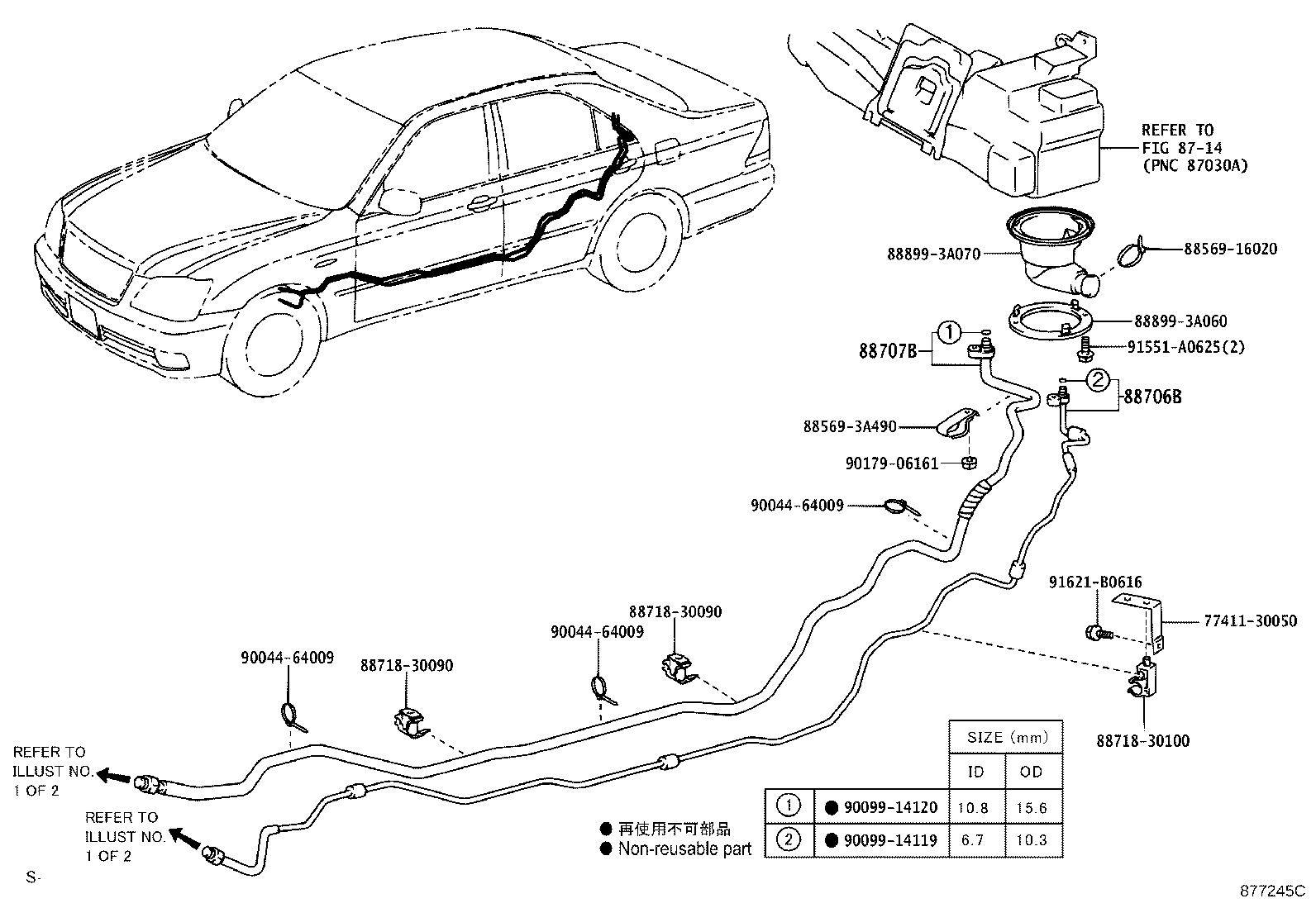

Figure 877243D 877243D 2004-11 → — Figure 877244E 877244E 2004-11 → — Figure 877245C 877245C 2004-11 → —

Part groups

PNCDescription
88375B Cap, Service Valve, NO.1
88375D Cap, Service Valve, NO.2
88460 Condenser Assy, Cooler
88474 Dryer, Cooler
88703 Hose Sub-assy, Discharge
88706A Tube Sub-assy, Liquid, A
88706B Tube Sub-assy, Liquid, B
88707 Pipe Sub-assy, Suction
88707B Tube Sub-assy, Suction, B
88712 Hose, Cooler Refrigerant Suction, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
