Toyota Crown

2010-09 → 2012-12 · chassis GRS202 · catalogue 3312C0 · General

Supported model Data version 2013-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

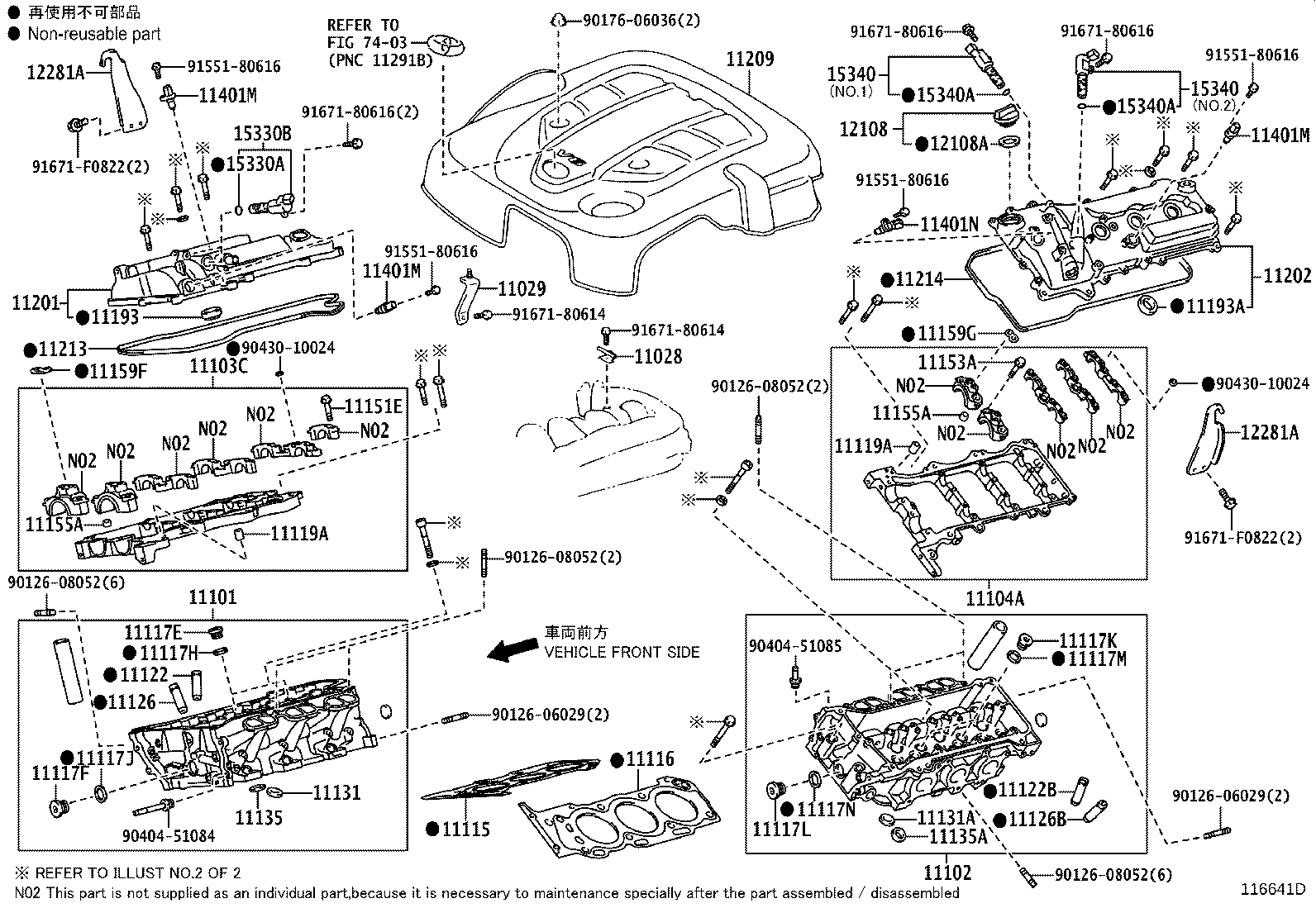

Exploded illustration 116641D 15340 — VALVE ASSY, CAM TIMING OIL CONTROL, LH (2 parts) 15340 — VALVE ASSY, CAM TIMING OIL CONTROL, LH (2 parts) 9155180616 — not listed in this catalogue 11401M — SENSOR, CRANK POSITION, NO.2 (1 parts) 9167180616 — not listed in this catalogue 11115 — GASKET, CYLINDER HEAD (1 parts) 11116 — GASKET, CYLINDER HEAD, NO.2 (1 parts) 11117H — GASKET(FOR WATER HOLE) (1 parts) 11122 — BUSH, INTAKE VALVE GUIDE (2 parts) 11126 — BUSH, EXHAUST VALVE GUIDE (2 parts) 11117J — GASKET(FOR CYLINDER HEAD SCREW PLUG) (1 parts) 11117F — PLUG, W/HEAD STRAIGHT SCREW, NO.2 (1 parts) 9012608052 — not listed in this catalogue 11117E — PLUG, W/HEAD STRAIGHT SCREW, NO.1 (1 parts) 11135 — SEAT, EXHAUST VALVE (2 parts) 11131 — SEAT, INTAKE VALVE (2 parts) 11101 — HEAD SUB-ASSY, CYLINDER (2 parts) 9012608052 — not listed in this catalogue 9012606029 — not listed in this catalogue 12281A — HANGER, ENGINE, NO.1 (1 parts) 9155180616 — not listed in this catalogue 11401M — SENSOR, CRANK POSITION, NO.2 (1 parts) 15330B — VALVE ASSY, CAM TIMING OIL CONTROL, RH (1 parts) 15330A — RING, O(FOR CAM TIMING OIL CONTROL VALVE) (1 parts) 91671F0822 — not listed in this catalogue 11201 — COVER SUB-ASSY, CYLINDER HEAD (1 parts) 11213 — GASKET, CYLINDER HEAD COVER (1 parts) 11159F — GASKET, CAMSHAFT BEARING CAP OIL HOLE, RH (1 parts) 11103C — HOUSING SUB-ASSY, CAMSHAFT, RH (1 parts) 11151E — BOLT(FOR CAMSHAFT BEARING CAP TO HOUSING RH, NO.1) (1 parts) 11119A — PIN, STRAIGHT, NO.1 (1 parts) 11155A — PIN, RING W/HEAD (1 parts) 11401N — SENSOR, CRANK POSITION, NO.3 (1 parts) 11214 — GASKET, CYLINDER HEAD COVER, NO.2 (1 parts) 12108 — CAP SUB-ASSY, OIL FILLER (1 parts) 11202 — COVER SUB-ASSY, CYLINDER HEAD, LH (1 parts) 11193A — GASKET, SPARK PLUG TUBE, LH (1 parts) 11401M — SENSOR, CRANK POSITION, NO.2 (1 parts) 9155180616 — not listed in this catalogue 15340A — RING, O(FOR CAM TIMING OIL CONTROL VALVE) (1 parts) 12108A — GASKET(FOR OIL FILLER CAP) (1 parts) 15340A — RING, O(FOR CAM TIMING OIL CONTROL VALVE) (1 parts) 9012608052 — not listed in this catalogue 11102 — HEAD, CYLINDER, LH (2 parts) 11117L — PLUG, W/HEAD STRAIGHT SCREW, LH NO.2 (1 parts) 11117N — GASKET(FOR CYLINDER HEAD SCREW PLUG NO.2) (1 parts) 9012606029 — not listed in this catalogue 9012608052 — not listed in this catalogue 11117K — PLUG, W/HEAD STRAIGHT SCREW, LH NO.1 (1 parts) 11117M — GASKET(FOR WATER HOLE NO.2) (1 parts) 11131A — SEAT, INTAKE VALVE, NO.2 (2 parts) 11122B — BUSH, INTAKE VALVE GUIDE, NO.2 (2 parts) 11126B — BUSH, EXHAUST VALVE GUIDE, NO.2 (2 parts) 11135A — SEAT, EXHAUST VALVE, NO.2 (2 parts) 11159G — GASKET, CAMSHAFT BEARING CAP OIL HOLE, LH (1 parts) 12281A — HANGER, ENGINE, NO.1 (1 parts) 91671F0822 — not listed in this catalogue 11104A — HOUSING SUB-ASSY, CAMSHAFT, LH (1 parts) 9043010024 — not listed in this catalogue 11155A — PIN, RING W/HEAD (1 parts) 11119A — PIN, STRAIGHT, NO.1 (1 parts) 11193 — GASKET, SPARK PLUG TUBE (1 parts) 11153A — BOLT(FOR CAMSHAFT BEARING CAP TO HOUSING LH, NO.1) (1 parts) 9043010024 — not listed in this catalogue 11209 — COVER SUB-ASSY, V-BANK (1 parts) 9167180616 — not listed in this catalogue 9167180616 — not listed in this catalogue 9155180616 — not listed in this catalogue 9017606036 — not listed in this catalogue 7403 — not listed in this catalogue 9167180614 — not listed in this catalogue 11029 — BRACKET SUB-ASSY, V-BANK COVER (1 parts) 11028 — BRACKET SUB-ASSY, V-BANK COVER, NO.2 (1 parts) 9167180614 — not listed in this catalogue 9040451085 — not listed in this catalogue 9040451084 — not listed in this catalogue
116641D · 53 callouts, 23 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
57 parts on this figure
Part number Description Fitment Price
11028 — Bracket Sub-assy, V-bank Cover, NO.2
11028-31010 Bracket Sub-assy, V-bank Cover, NO.2
2010-09 → 2012-12 ended
3GRFE GRS202 —
11029 — Bracket Sub-assy, V-bank Cover
11029-31030 Bracket Sub-assy, V-bank Cover
2010-09 → 2012-12 ended
3GRFE GRS202 —
11101 — Head Sub-assy, Cylinder
11101-39565 Head Sub-assy, Cylinder
2010-09 → 2011-09 ended
3GRFE GRS202 —
11101-39566 Head Sub-assy, Cylinder
2011-09 → 2012-12 ended
3GRFE GRS202 —
11102 — Head, Cylinder, LH
11102-39126 Head, Cylinder, LH
2010-09 → 2011-09 ended
3GRFE GRS202 —
11102-39127 Head, Cylinder, LH
2011-09 → 2012-12 ended
3GRFE GRS202 —
11103C — Housing Sub-assy, Camshaft, RH
11103-31032 Housing Sub-assy, Camshaft, RH
2010-09 → 2012-12 ended
3GRFE GRS202 —
11104A — Housing Sub-assy, Camshaft, LH
11104-31043 Housing Sub-assy, Camshaft, LH
2010-09 → 2012-12 ended
3GRFE GRS202 —
11115 — Gasket, Cylinder Head
11115-31041 Gasket, Cylinder Head
2010-09 → 2012-12 ended
3GRFE GRS202 —
11116 — Gasket, Cylinder Head, NO.2
11116-31021 Gasket, Cylinder Head, NO.2
2010-09 → 2012-12 ended
3GRFE GRS202 —
11117E — Plug, W/Head Straight Screw, NO.1
90341-20012 Plug, W/Head Straight Screw, NO.1
2010-09 → 2012-12 ended
3GRFE GRS202 —
11117F — Plug, W/Head Straight Screw, NO.2
90341-27006 Plug, W/Head Straight Screw, NO.2
2010-09 → 2012-12 ended
3GRFE GRS202 —
11117H — Gasket(FOR WATER HOLE)
90430-20004 Gasket(FOR WATER HOLE)
2010-09 → 2012-12 ended
3GRFE GRS202 —
11117J — Gasket(FOR CYLINDER HEAD SCREW PLUG)
90430-27005 Gasket(FOR CYLINDER HEAD SCREW PLUG)
2010-09 → 2012-12 ended
3GRFE GRS202 —
11117K — Plug, W/Head Straight Screw, LH NO.1
90341-20012 Plug, W/Head Straight Screw, LH NO.1
2010-09 → 2012-12 ended
3GRFE GRS202 —
11117L — Plug, W/Head Straight Screw, LH NO.2
90341-27006 Plug, W/Head Straight Screw, LH NO.2
2010-09 → 2012-12 ended
3GRFE GRS202 —
11117M — Gasket(FOR WATER HOLE NO.2)
90430-20004 Gasket(FOR WATER HOLE NO.2)
2010-09 → 2012-12 ended
3GRFE GRS202 —
11117N — Gasket(FOR CYLINDER HEAD SCREW PLUG NO.2)
90430-27005 Gasket(FOR CYLINDER HEAD SCREW PLUG NO.2)
2010-09 → 2012-12 ended
3GRFE GRS202 —
11119A — Pin, Straight, NO.1
90250-05021 note Pin, Straight, NO.1
2010-09 → 2012-12 ended
3GRFE GRS202 —
11122 — Bush, Intake Valve Guide
11122-31041 note Bush, Intake Valve Guide
2010-09 → 2012-12 ended
3GRFE GRS202 —
11123-31041 note Bush, Intake Valve Guide
2010-09 → 2012-12 ended
3GRFE GRS202 —
11122B — Bush, Intake Valve Guide, NO.2
11122-31041 note Bush, Intake Valve Guide, NO.2
2010-09 → 2012-12 ended
3GRFE GRS202 —
11123-31041 note Bush, Intake Valve Guide, NO.2
2010-09 → 2012-12 ended
3GRFE GRS202 —
11126 — Bush, Exhaust Valve Guide
11126-31030 note Bush, Exhaust Valve Guide
2010-09 → 2012-12 ended
3GRFE GRS202 —
11127-31030 note Bush, Exhaust Valve Guide
2010-09 → 2012-12 ended
3GRFE GRS202 —
11126B — Bush, Exhaust Valve Guide, NO.2
11126-31030 note Bush, Exhaust Valve Guide, NO.2
2010-09 → 2012-12 ended
3GRFE GRS202 —
11127-31030 note Bush, Exhaust Valve Guide, NO.2
2010-09 → 2012-12 ended
3GRFE GRS202 —
11131 — Seat, Intake Valve
11131-31020 note Seat, Intake Valve
2010-09 → 2012-12 ended
3GRFE GRS202 —
11132-31020 note Seat, Intake Valve
2010-09 → 2012-12 ended
3GRFE GRS202 —
11131A — Seat, Intake Valve, NO.2
11131-31020 note Seat, Intake Valve, NO.2
2010-09 → 2012-12 ended
3GRFE GRS202 —
11132-31020 note Seat, Intake Valve, NO.2
2010-09 → 2012-12 ended
3GRFE GRS202 —
11135 — Seat, Exhaust Valve
11135-31040 note Seat, Exhaust Valve
2010-09 → 2012-12 ended
3GRFE GRS202 —
11136-31040 note Seat, Exhaust Valve
2010-09 → 2012-12 ended
3GRFE GRS202 —
11135A — Seat, Exhaust Valve, NO.2
11135-31040 note Seat, Exhaust Valve, NO.2
2010-09 → 2012-12 ended
3GRFE GRS202 —
11136-31040 note Seat, Exhaust Valve, NO.2
2010-09 → 2012-12 ended
3GRFE GRS202 —
11151E — Bolt(FOR CAMSHAFT BEARING CAP TO HOUSING RH, NO.1)
90119-07009 Bolt(FOR CAMSHAFT BEARING CAP TO HOUSING RH, NO.1)
2010-09 → 2012-12 ended
3GRFE GRS202 —
11153A — Bolt(FOR CAMSHAFT BEARING CAP TO HOUSING LH, NO.1)
90119-07009 Bolt(FOR CAMSHAFT BEARING CAP TO HOUSING LH, NO.1)
2010-09 → 2012-12 ended
3GRFE GRS202 —
11155A — Pin, Ring W/Head
90253-11021 Pin, Ring W/Head
2010-09 → 2012-12 ended
3GRFE GRS202 —
11159F — Gasket, Camshaft Bearing Cap Oil Hole, RH
11159-31010 Gasket, Camshaft Bearing Cap Oil Hole, RH
2010-09 → 2012-12 ended
3GRFE GRS202 —
11159G — Gasket, Camshaft Bearing Cap Oil Hole, LH
11159-31010 Gasket, Camshaft Bearing Cap Oil Hole, LH
2010-09 → 2012-12 ended
3GRFE GRS202 —
11193 — Gasket, Spark Plug Tube
11193-70010 Gasket, Spark Plug Tube
2010-09 → 2012-12 ended
3GRFE GRS202 —
11193A — Gasket, Spark Plug Tube, LH
11193-70010 Gasket, Spark Plug Tube, LH
2010-09 → 2012-12 ended
3GRFE GRS202 —
11201 — Cover Sub-assy, Cylinder Head
11201-31242 Cover Sub-assy, Cylinder Head
2010-09 → 2012-12 ended
3GRFE GRS202 —
11202 — Cover Sub-assy, Cylinder Head, LH
11202-31022 Cover Sub-assy, Cylinder Head, LH
2010-09 → 2012-12 ended
3GRFE GRS202 —
11209 — Cover Sub-assy, V-bank
11209-31041 Cover Sub-assy, V-bank
2010-09 → 2012-12 ended
3GRFE GRS202 —
11213 — Gasket, Cylinder Head Cover
11213-31050 Gasket, Cylinder Head Cover
2010-09 → 2012-12 ended
3GRFE GRS202 —
11214 — Gasket, Cylinder Head Cover, NO.2
11214-31020 Gasket, Cylinder Head Cover, NO.2
2010-09 → 2012-12 ended
3GRFE GRS202 —
11401M — Sensor, Crank Position, NO.2
90919-05060 Sensor, Crank Position, NO.2
2010-09 → 2012-12 ended
3GRFE GRS202 —
11401N — Sensor, Crank Position, NO.3
90919-05061 Sensor, Crank Position, NO.3
2010-09 → 2012-12 ended
3GRFE GRS202 —
12108 — Cap Sub-assy, Oil Filler
12180-21010 Cap Sub-assy, Oil Filler
2010-09 → 2012-12 ended
3GRFE GRS202 —
12108A — Gasket(FOR OIL FILLER CAP)
90430-37140 Gasket(FOR OIL FILLER CAP)
2010-09 → 2012-12 ended
3GRFE GRS202 —
12281A — Hanger, Engine, NO.1
12281-31070 Hanger, Engine, NO.1
2010-09 → 2012-12 ended
3GRFE GRS202 —
15330A — Ring, O(FOR CAM TIMING OIL CONTROL VALVE)
90099-14137 Ring, O(FOR CAM TIMING OIL CONTROL VALVE)
2010-09 → 2012-12 ended
3GRFE GRS202 —
15330B — Valve Assy, Cam Timing Oil Control, RH
15330-38010 Valve Assy, Cam Timing Oil Control, RH
2010-09 → 2012-12 ended
3GRFE GRS202 —
15340 — Valve Assy, Cam Timing Oil Control, LH
15330-38010 note Valve Assy, Cam Timing Oil Control, LH
2010-09 → 2012-12 ended
3GRFE GRS202 —
15340-31020 note Valve Assy, Cam Timing Oil Control, LH
2010-09 → 2012-12 ended
3GRFE GRS202 —
15340A — Ring, O(FOR CAM TIMING OIL CONTROL VALVE)
90099-14137 Ring, O(FOR CAM TIMING OIL CONTROL VALVE)
2010-09 → 2012-12 ended
3GRFE GRS202 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
