Toyota Crown
2010-09 → 2012-12 · chassis GRS202 · catalogue 3312C0 · General
Supported model
Data version 2013-01

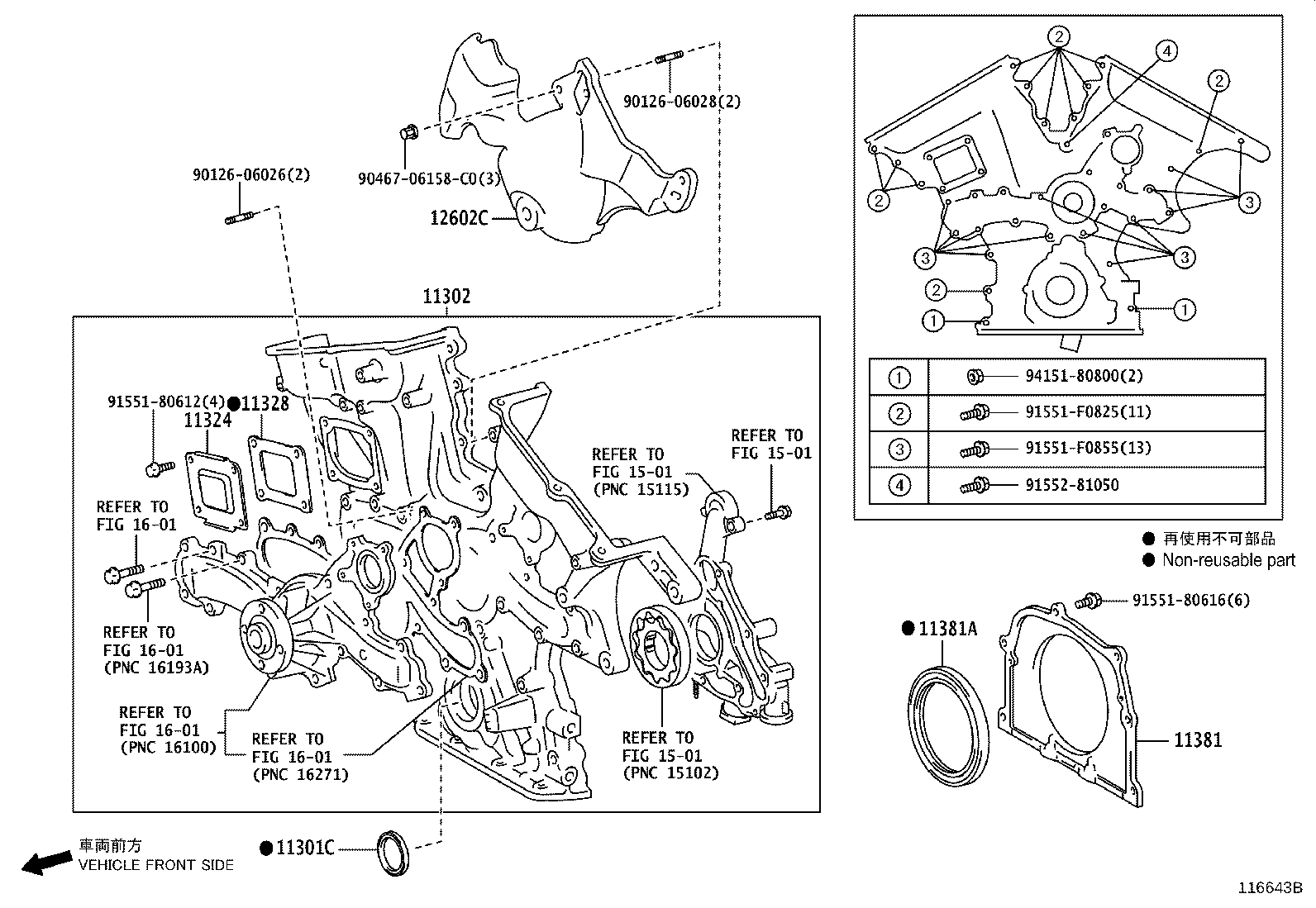

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 11301C — Seal, Oil(FOR TIMING GEAR CASE OR TIMING CHAIN CASE) | ||||
| 90311-42045 |
Seal, Oil(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
2010-09 → 2012-12
ended
|
3GRFE GRS202 | — | |
| 11302 — Cover Sub-assy, Timing Chain OR Belt | ||||
| 11310-31042 |
Cover Sub-assy, Timing Chain OR Belt
2010-09 → 2012-12
ended
|
3GRFE GRS202 | — | |
| 11324 — Plate, Timing Chain Cover | ||||
| 11324-31020 |
Plate, Timing Chain Cover
2010-09 → 2012-12
ended
|
3GRFE GRS202 | — | |
| 11328 — Gasket, Timing Gear OR Chain Cover | ||||
| 11328-31030 |
Gasket, Timing Gear OR Chain Cover
2010-09 → 2012-12
ended
|
3GRFE GRS202 | — | |
| 11381 — Retainer, Engine Rear Oil Seal | ||||
| 11381-31021 |
Retainer, Engine Rear Oil Seal
2010-09 → 2012-12
ended
|
3GRFE GRS202 | — | |
| 11381A — Seal, Engine Rear Oil | ||||
| 90311-92010 |
Seal, Engine Rear Oil
2010-09 → 2012-12
ended
|
3GRFE GRS202 | — | |
| 12602C — Cover, Engine, NO.2 | ||||
| 12602-31012 |
Cover, Engine, NO.2
2010-09 → 2011-05
ended
|
3GRFE GRS202 | — | |
| 12602-31013 |
Cover, Engine, NO.2
2011-05 → 2012-12
ended
|
3GRFE GRS202 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
