Toyota Crown
2010-09 → 2012-12 · chassis GRS202 · catalogue 3312C0 · General
Supported model
Data version 2013-01

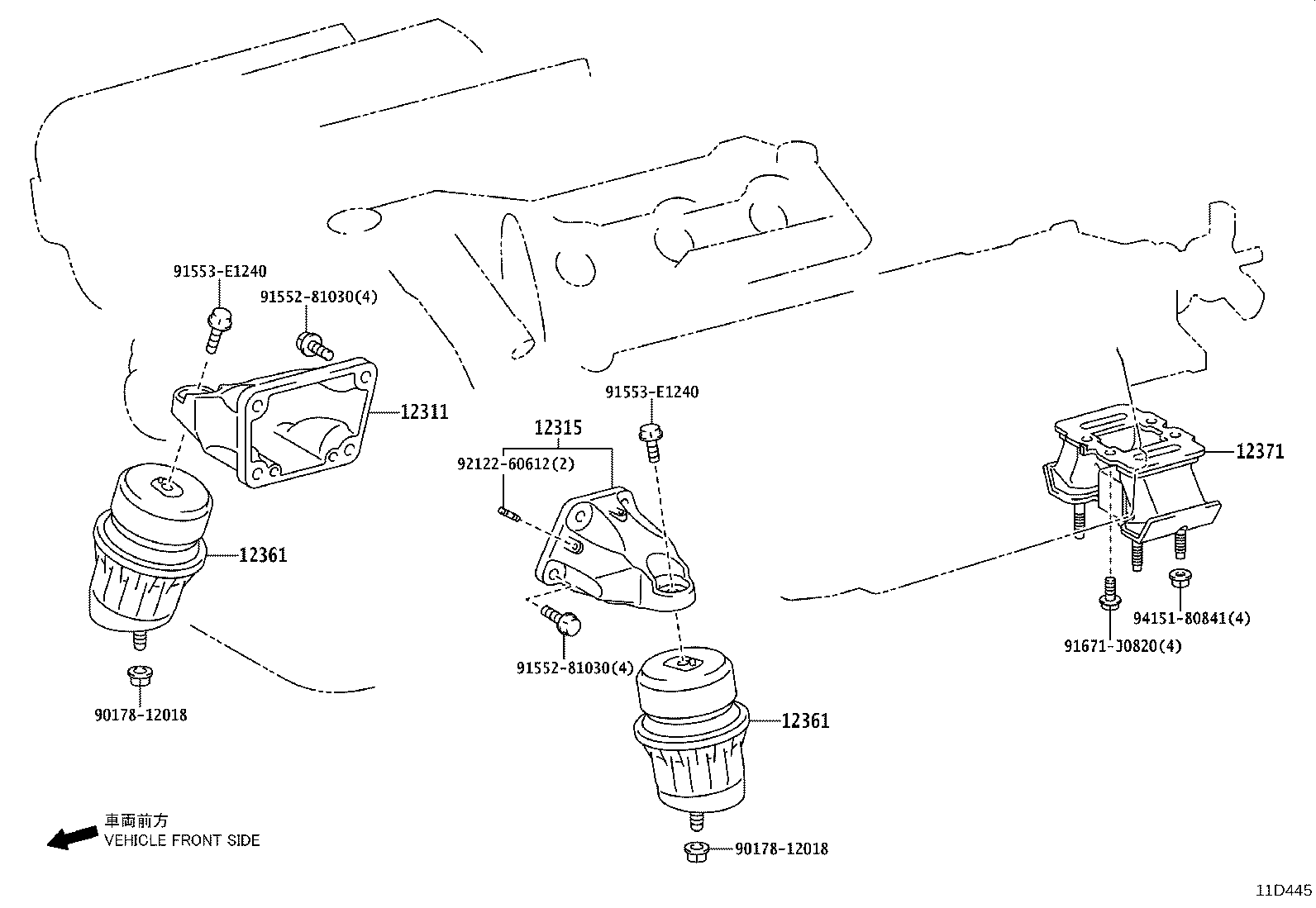

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 12311 — Bracket, Engine Mounting, Front NO.1 RH | ||||
| 12311-31040 |
Bracket, Engine Mounting, Front NO.1 RH
2010-09 → 2012-12
ended
|
3GRFE GRS202 | — | |
| 12315 — Bracket, Engine Mounting, Front NO.1 LH | ||||
| 12302-31010 |
Bracket, Engine Mounting, Front NO.1 LH
2010-09 → 2012-12
ended
|
3GRFE GRS202 | — | |
| 12361 — Insulator, Engine Mounting, Front | ||||
| 12361-31200 |
Insulator, Engine Mounting, Front
2010-09 → 2012-12
ended
|
3GRFE GRS202 | — | |
| 12371 — Insulator, Engine Mounting, Rear NO.1 | ||||
| 12371-31070 |
Insulator, Engine Mounting, Rear NO.1
2010-09 → 2012-12
ended
|
3GRFE GRS202 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
