Toyota Crown

2010-09 → 2012-12 · chassis GRS202 · catalogue 3312C0 · General

Supported model Data version 2013-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

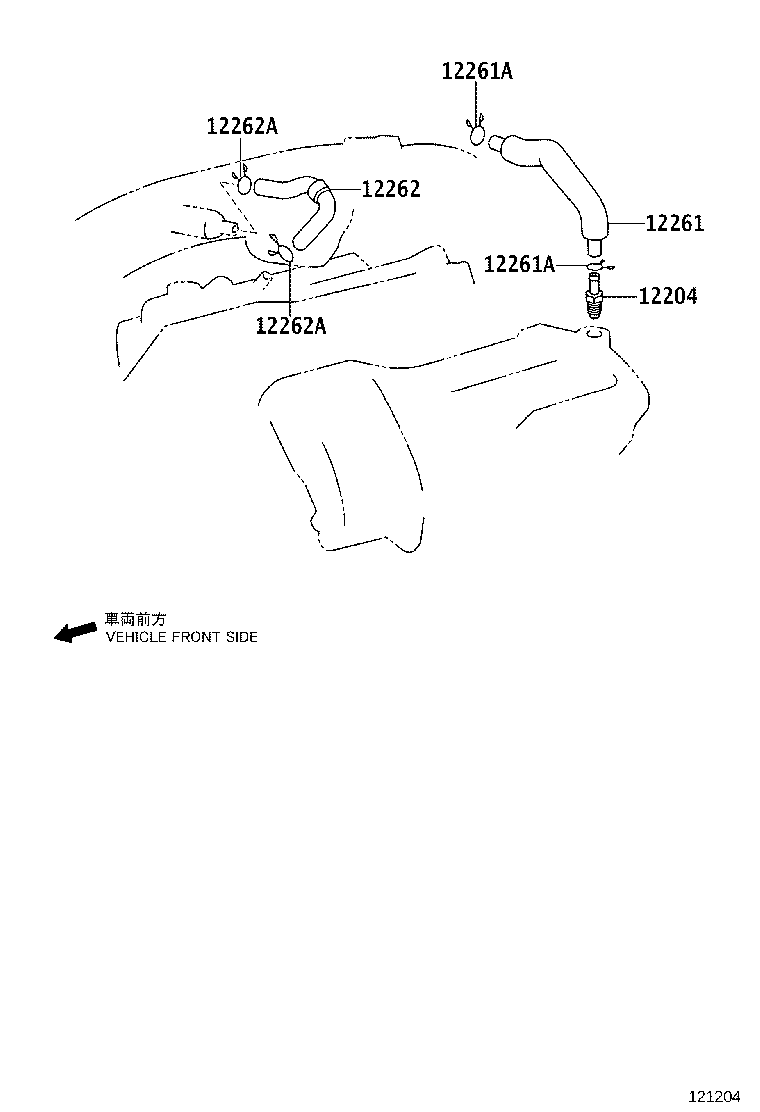

Exploded illustration 121204 12261A — CLIP OR CLAMP(FOR VENTILATION HOSE) (1 parts) 12261A — CLIP OR CLAMP(FOR VENTILATION HOSE) (1 parts) 12262A — CLIP(FOR VENTILATION HOSE NO.2) (1 parts) 12262A — CLIP(FOR VENTILATION HOSE NO.2) (1 parts) 12262 — HOSE, VENTILATION, NO.2 (1 parts) 12261 — HOSE, VENTILATION (1 parts) 12204 — VALVE SUB-ASSY, VENTILATION (1 parts)
121204 · 7 callouts Full size ↗
5 parts on this figure
Part number Description Fitment Price
12204 — Valve Sub-assy, Ventilation
12204-31040 Valve Sub-assy, Ventilation
2010-09 → 2012-12 ended
3GRFE GRS202 —
12261 — Hose, Ventilation
12261-31040 Hose, Ventilation
2010-09 → 2012-12 ended
3GRFE GRS202 —
12261A — Clip OR Clamp(FOR VENTILATION HOSE)
90467-14017 Clip OR Clamp(FOR VENTILATION HOSE)
2010-09 → 2012-12 ended
3GRFE GRS202 —
12262 — Hose, Ventilation, NO.2
12262-31040 Hose, Ventilation, NO.2
2010-09 → 2012-12 ended
3GRFE GRS202 —
12262A — Clip(FOR VENTILATION HOSE NO.2)
90467-21004 Clip(FOR VENTILATION HOSE NO.2)
2010-09 → 2012-12 ended
3GRFE GRS202 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
