Toyota Crown

2010-09 → 2012-12 · chassis GRS202 · catalogue 3312C0 · General

Supported model Data version 2013-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

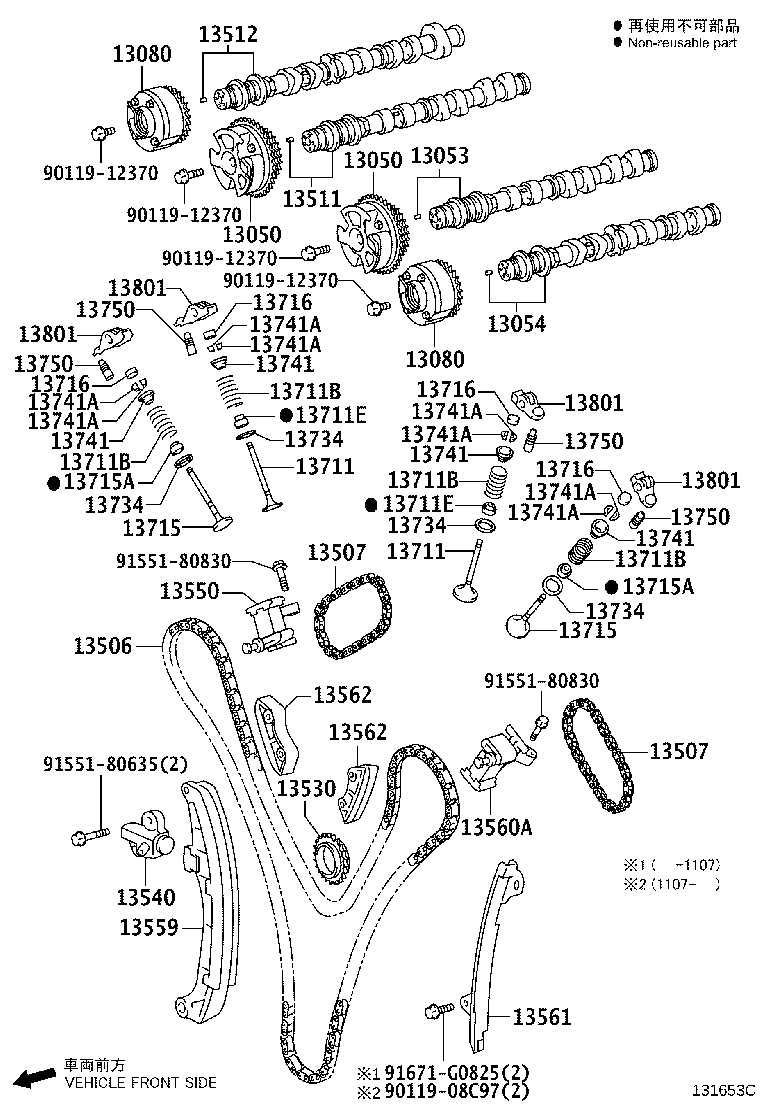

Exploded illustration 131653C 13080 — GEAR ASSY, CAMSHAFT TIMING EXHAUST, LH (1 parts) 13050 — GEAR ASSY, CAMSHAFT TIMING (2 parts) 13050 — GEAR ASSY, CAMSHAFT TIMING (2 parts) 13801 — ARM SUB-ASSY, VALVE ROCKER, NO.1 (1 parts) 13750 — ADJUSTER ASSY, VALVE LASH (1 parts) 13716 — CAP, VALVE STEM (1 parts) 13741 — RETAINER, VALVE SPRING (1 parts) 13741A — LOCK, VALVE SPRING RETAINER (1 parts) 13741A — LOCK, VALVE SPRING RETAINER (1 parts) 13711 — VALVE, INTAKE (1 parts) 13711B — SPRING, COMPRESSION(FOR INNER) (1 parts) 13711E — SEAL, INTAKE VALVE STEM OIL (1 parts) 13734 — SEAT, VALVE SPRING (1 parts) 13080 — GEAR ASSY, CAMSHAFT TIMING EXHAUST, LH (1 parts) 13716 — CAP, VALVE STEM (1 parts) 13801 — ARM SUB-ASSY, VALVE ROCKER, NO.1 (1 parts) 13750 — ADJUSTER ASSY, VALVE LASH (1 parts) 13741A — LOCK, VALVE SPRING RETAINER (1 parts) 13741A — LOCK, VALVE SPRING RETAINER (1 parts) 13741 — RETAINER, VALVE SPRING (1 parts) 13711B — SPRING, COMPRESSION(FOR INNER) (1 parts) 13715A — SEAL, EXHAUST VALVE STEM OIL (1 parts) 13734 — SEAT, VALVE SPRING (1 parts) 13715 — VALVE, EXHAUST (1 parts) 13716 — CAP, VALVE STEM (1 parts) 13801 — ARM SUB-ASSY, VALVE ROCKER, NO.1 (1 parts) 13750 — ADJUSTER ASSY, VALVE LASH (1 parts) 13741A — LOCK, VALVE SPRING RETAINER (1 parts) 13741A — LOCK, VALVE SPRING RETAINER (1 parts) 13741 — RETAINER, VALVE SPRING (1 parts) 13711B — SPRING, COMPRESSION(FOR INNER) (1 parts) 13711E — SEAL, INTAKE VALVE STEM OIL (1 parts) 13734 — SEAT, VALVE SPRING (1 parts) 13507 — CHAIN SUB-ASSY, NO.2 (1 parts) 13550 — TENSIONER ASSY, CHAIN, NO.2 (1 parts) 13562 — DAMPER, CHAIN VIBRATION, NO.2 (1 parts) 13562 — DAMPER, CHAIN VIBRATION, NO.2 (1 parts) 13506 — CHAIN SUB-ASSY (1 parts) 13561 — DAMPER, CHAIN VIBRATION, NO.1 (1 parts) 13559 — SLIPPER, CHAIN TENSIONER (1 parts) 13540 — TENSIONER ASSY, CHAIN, NO.1 (2 parts) 13530 — SPROCKET ASSY, IDLE (1 parts) 13560A — TENSIONER ASSY, CHAIN, NO.3 (1 parts) 13507 — CHAIN SUB-ASSY, NO.2 (1 parts) 91671G0825 — not listed in this catalogue 9011908C97 — not listed in this catalogue 13711 — VALVE, INTAKE (1 parts) 13741A — LOCK, VALVE SPRING RETAINER (1 parts) 13741A — LOCK, VALVE SPRING RETAINER (1 parts) 13716 — CAP, VALVE STEM (1 parts) 13801 — ARM SUB-ASSY, VALVE ROCKER, NO.1 (1 parts) 13750 — ADJUSTER ASSY, VALVE LASH (1 parts) 13741 — RETAINER, VALVE SPRING (1 parts) 13711B — SPRING, COMPRESSION(FOR INNER) (1 parts) 13715A — SEAL, EXHAUST VALVE STEM OIL (1 parts) 13734 — SEAT, VALVE SPRING (1 parts) 13715 — VALVE, EXHAUST (1 parts) 9155180830 — not listed in this catalogue 9155180830 — not listed in this catalogue 9011912370 — not listed in this catalogue 9011912370 — not listed in this catalogue 9011912370 — not listed in this catalogue 9011912370 — not listed in this catalogue 13512 — CAMSHAFT, NO.2 (1 parts) 13511 — CAMSHAFT (1 parts) 13053 — CAMSHAFT SUB-ASSY, NO.3 (1 parts) 13054 — CAMSHAFT SUB-ASSY, NO.4 (1 parts) 9155180635 — not listed in this catalogue
131653C · 59 callouts, 9 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
28 parts on this figure
Part number Description Fitment Price
13050 — Gear Assy, Camshaft Timing
13050-31121 Gear Assy, Camshaft Timing
2010-09 → 2012-07 ended
3GRFE GRS202 —
13050-31122 Gear Assy, Camshaft Timing
2012-07 → 2012-12 ended
3GRFE GRS202 —
13053 — Camshaft Sub-assy, NO.3
13053-31041 Camshaft Sub-assy, NO.3
2010-09 → 2012-12 ended
3GRFE GRS202 —
13054 — Camshaft Sub-assy, NO.4
13054-31040 Camshaft Sub-assy, NO.4
2010-09 → 2012-12 ended
3GRFE GRS202 —
13080 — Gear Assy, Camshaft Timing Exhaust, LH
13080-31030 Gear Assy, Camshaft Timing Exhaust, LH
2010-09 → 2012-12 ended
3GRFE GRS202 —
13506 — Chain Sub-assy
13506-31031 Chain Sub-assy
2010-09 → 2012-12 ended
3GRFE GRS202 —
13507 — Chain Sub-assy, NO.2
13507-31020 Chain Sub-assy, NO.2
2010-09 → 2012-12 ended
3GRFE GRS202 —
13511 — Camshaft
13501-31071 Camshaft
2010-09 → 2012-12 ended
3GRFE GRS202 —
13512 — Camshaft, NO.2
13502-31031 Camshaft, NO.2
2010-09 → 2012-12 ended
3GRFE GRS202 —
13530 — Sprocket Assy, Idle
13530-31021 Sprocket Assy, Idle
2010-09 → 2012-12 ended
3GRFE GRS202 —
13540 — Tensioner Assy, Chain, NO.1
13540-31040 Tensioner Assy, Chain, NO.1
2010-09 → 2011-08 ended
3GRFE GRS202 —
13540-31041 Tensioner Assy, Chain, NO.1
2011-08 → 2012-12 ended
3GRFE GRS202 —
13550 — Tensioner Assy, Chain, NO.2
13550-31020 Tensioner Assy, Chain, NO.2
2010-09 → 2012-12 ended
3GRFE GRS202 —
13559 — Slipper, Chain Tensioner
13559-31020 Slipper, Chain Tensioner
2010-09 → 2012-12 ended
3GRFE GRS202 —
13560A — Tensioner Assy, Chain, NO.3
13560-31020 Tensioner Assy, Chain, NO.3
2010-09 → 2012-12 ended
3GRFE GRS202 —
13561 — Damper, Chain Vibration, NO.1
13561-31021 Damper, Chain Vibration, NO.1
2010-09 → 2012-12 ended
3GRFE GRS202 —
13562 — Damper, Chain Vibration, NO.2
13562-31020 Damper, Chain Vibration, NO.2
2010-09 → 2012-12 ended
3GRFE GRS202 —
13711 — Valve, Intake
13711-31090 Valve, Intake
2010-09 → 2012-12 ended
3GRFE GRS202 —
13711B — Spring, Compression(FOR INNER)
90501-30030 Spring, Compression(FOR INNER)
2010-09 → 2012-12 ended
3GRFE GRS202 —
13711E — Seal, Intake Valve Stem Oil
90913-02101 Seal, Intake Valve Stem Oil
2010-09 → 2012-12 ended
3GRFE GRS202 —
13715 — Valve, Exhaust
13715-31130 Valve, Exhaust
2010-09 → 2012-12 ended
3GRFE GRS202 —
13715A — Seal, Exhaust Valve Stem Oil
90913-02112 Seal, Exhaust Valve Stem Oil
2010-09 → 2012-12 ended
3GRFE GRS202 —
13716 — Cap, Valve Stem
13716-75020 Cap, Valve Stem
2010-09 → 2012-12 ended
3GRFE GRS202 —
13734 — Seat, Valve Spring
13734-62020 Seat, Valve Spring
2010-09 → 2012-12 ended
3GRFE GRS202 —
13741 — Retainer, Valve Spring
13741-31020 Retainer, Valve Spring
2010-09 → 2012-12 ended
3GRFE GRS202 —
13741A — Lock, Valve Spring Retainer
90913-03028 Lock, Valve Spring Retainer
2010-09 → 2012-12 ended
3GRFE GRS202 —
13750 — Adjuster Assy, Valve Lash
13750-31030 Adjuster Assy, Valve Lash
2010-09 → 2012-12 ended
3GRFE GRS202 —
13801 — Arm Sub-assy, Valve Rocker, NO.1
13801-23011 Arm Sub-assy, Valve Rocker, NO.1
2010-09 → 2012-12 ended
3GRFE GRS202 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
