Toyota Crown

2010-09 → 2012-12 · chassis GRS202 · catalogue 3312C0 · General

Supported model Data version 2013-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

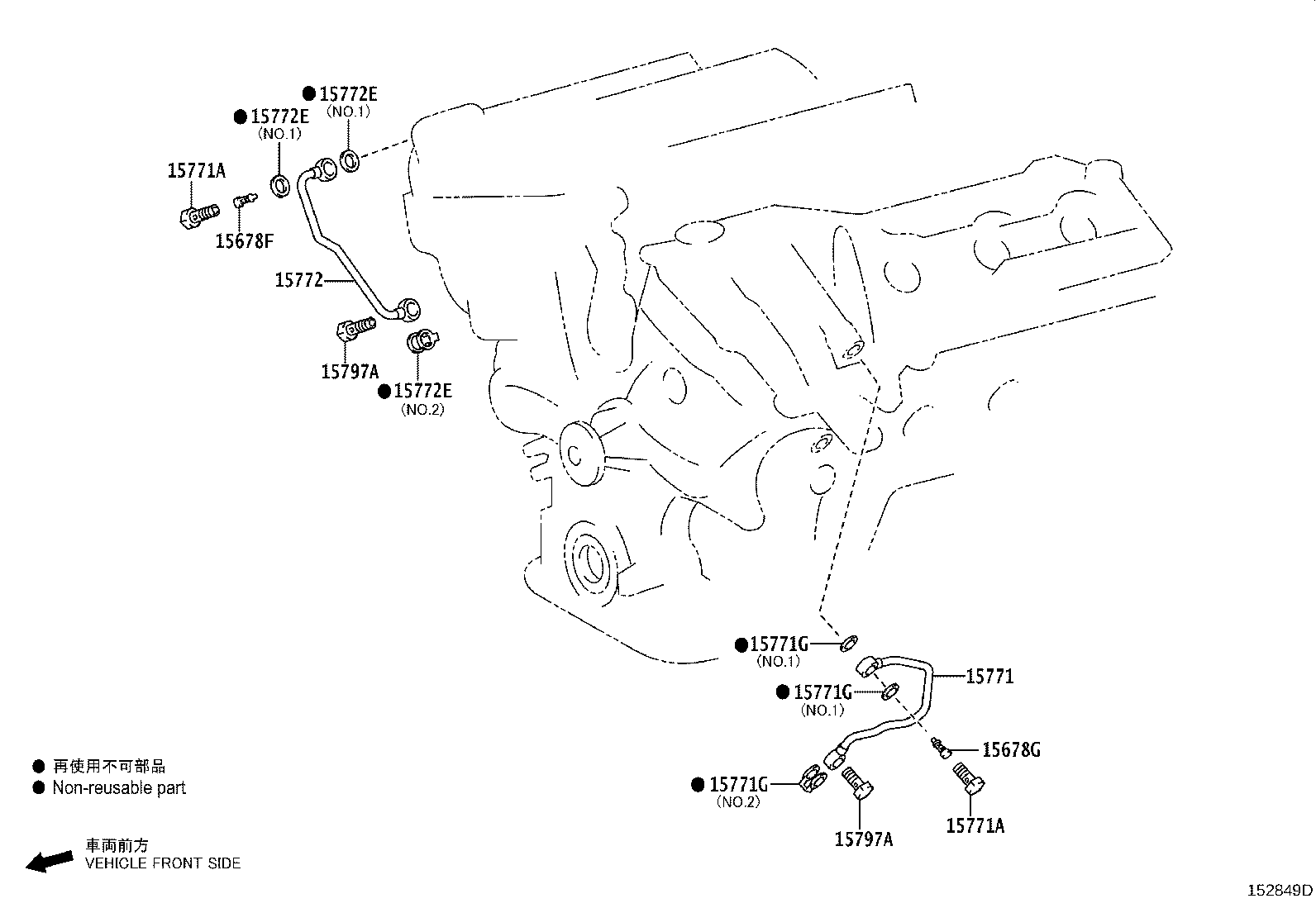

Exploded illustration 152849D 15678F — FILTER, OIL CONTROL VALVE, RH (1 parts) 15772E — GASKET(FOR OIL PIPE) (2 parts) 15772E — GASKET(FOR OIL PIPE) (2 parts) 15771A — UNION(FOR OIL PIPE) (1 parts) 15772E — GASKET(FOR OIL PIPE) (2 parts) 15797A — BOLT, OIL CHECK VALVE (1 parts) 15771G — GASKET (2 parts) 15771G — GASKET (2 parts) 15771G — GASKET (2 parts) 15771 — PIPE, OIL, NO.1 (1 parts) 15797A — BOLT, OIL CHECK VALVE (1 parts) 15678G — FILTER, OIL CONTROL VALVE, LH (1 parts) 15771A — UNION(FOR OIL PIPE) (1 parts) 15772 — PIPE, OIL, NO.2 (1 parts)
152849D · 14 callouts Full size ↗
10 parts on this figure
Part number Description Fitment Price
15678F — Filter, Oil Control Valve, RH
15678-46020 Filter, Oil Control Valve, RH
2010-09 → 2012-12 ended
3GRFE GRS202 —
15678G — Filter, Oil Control Valve, LH
15678-46020 Filter, Oil Control Valve, LH
2010-09 → 2012-12 ended
3GRFE GRS202 —
15771 — Pipe, Oil, NO.1
15771-31010 Pipe, Oil, NO.1
2010-09 → 2012-12 ended
3GRFE GRS202 —
15771A — Union(FOR OIL PIPE)
90401-16043 Union(FOR OIL PIPE)
2010-09 → 2012-12 ended
3GRFE GRS202 —
15771G — Gasket
90430-16012 note Gasket
2010-09 → 2012-12 ended
3GRFE GRS202 —
90430-16016 note Gasket
2010-09 → 2012-12 ended
3GRFE GRS202 —
15772 — Pipe, Oil, NO.2
15772-31010 Pipe, Oil, NO.2
2010-09 → 2012-12 ended
3GRFE GRS202 —
15772E — Gasket(FOR OIL PIPE)
90430-16012 note Gasket(FOR OIL PIPE)
2010-09 → 2012-12 ended
3GRFE GRS202 —
90430-16016 note Gasket(FOR OIL PIPE)
2010-09 → 2012-12 ended
3GRFE GRS202 —
15797A — Bolt, Oil Check Valve
15797-31010 Bolt, Oil Check Valve
2010-09 → 2012-12 ended
3GRFE GRS202 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
