Toyota Crown
2010-09 → 2012-12 · chassis GRS202 · catalogue 3312C0 · General
Supported model
Data version 2013-01

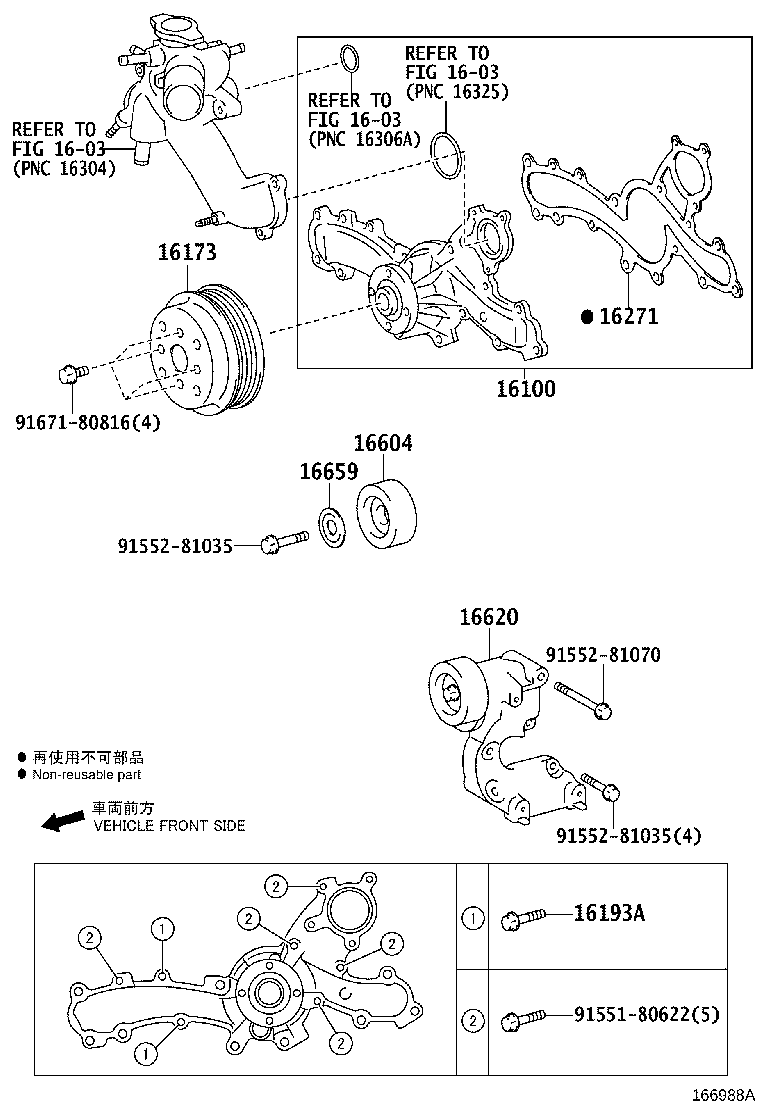

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 16100 — Pump Assy, Engine Water | ||||
| 16100-39436 |
Pump Assy, Engine Water
2010-09 → 2012-12
ended
|
3GRFE GRS202 | — | |
| 16173 — Pulley, Water Pump | ||||
| 16173-31010 |
Pulley, Water Pump
2010-09 → 2012-12
ended
|
3GRFE GRS202 | — | |
| 16193A — Bolt(FOR WATER PUMP COVER) | ||||
| 16193-31080 |
Bolt(FOR WATER PUMP COVER)
2010-09 → 2012-12
ended
|
3GRFE GRS202 | — | |
| 16271 — Gasket, Water Pump | ||||
| 16271-31020 |
Gasket, Water Pump
2010-09 → 2012-12
ended
|
3GRFE GRS202 | — | |
| 16604 — Pulley Sub-assy, Idler, NO.2 | ||||
| 16604-31010 note |
Pulley Sub-assy, Idler, NO.2
2010-09 → 2012-12
ended
|
3GRFE GRS202 | — | |
| 16620 — Tensioner Assy, V-ribbed Belt | ||||
| 16620-31021 |
Tensioner Assy, V-ribbed Belt
2010-09 → 2012-12
ended
|
3GRFE GRS202 | — | |
| 16659 — Plate, Idler Pulley Cover, NO.2 | ||||
| 16659-31011 |
Plate, Idler Pulley Cover, NO.2
2010-09 → 2012-12
ended
|
3GRFE GRS202 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
