Toyota Crown

2010-09 → 2012-12 · chassis GRS202 · catalogue 3312C0 · General

Supported model Data version 2013-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

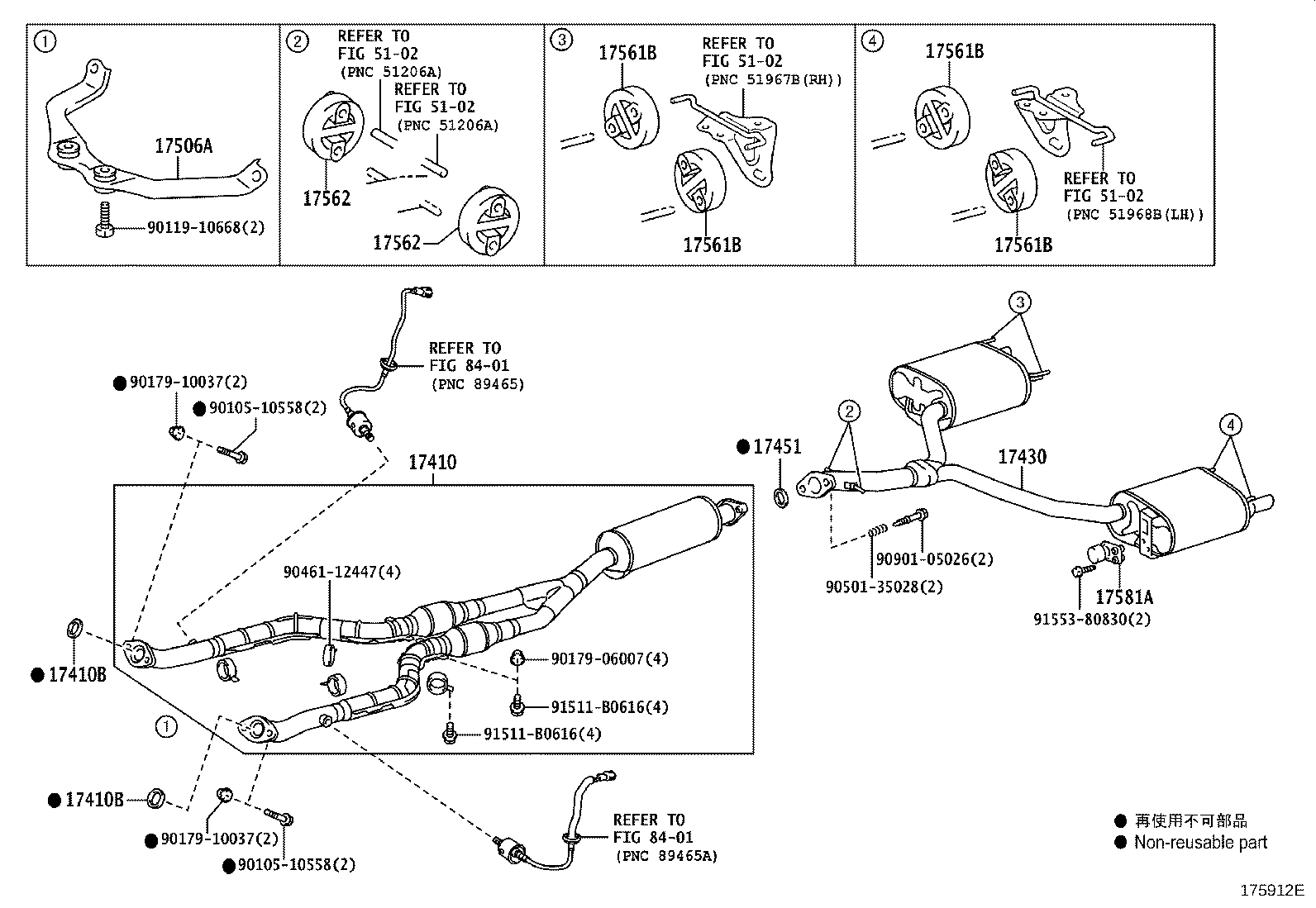

Exploded illustration 175912E 8401 — not listed in this catalogue 8401 — not listed in this catalogue 5102 — not listed in this catalogue 5102 — not listed in this catalogue 5102 — not listed in this catalogue 5102 — not listed in this catalogue 9011910668 — not listed in this catalogue 17410B — GASKET, EXHAUST PIPE (1 parts) 17410B — GASKET, EXHAUST PIPE (1 parts) 17451 — GASKET, EXHAUST PIPE (2 parts) 17506A — BRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT (1 parts) 17562 — SUPPORT, EXHAUST PIPE, NO.2 (1 parts) 17562 — SUPPORT, EXHAUST PIPE, NO.2 (1 parts) 9017910037 — not listed in this catalogue 9017910037 — not listed in this catalogue 9050135028 — not listed in this catalogue 9090105026 — not listed in this catalogue 9010510558 — not listed in this catalogue 9046112447 — not listed in this catalogue 17410 — PIPE ASSY, EXHAUST, FRONT (1 parts) 17581A — DAMPER, EXHAUST PIPE (1 parts) 9155380830 — not listed in this catalogue 17430 — PIPE ASSY, EXHAUST, TAIL (1 parts) 17561B — SUPPORT, EXHAUST PIPE, NO.1 (1 parts) 17561B — SUPPORT, EXHAUST PIPE, NO.1 (1 parts) 17561B — SUPPORT, EXHAUST PIPE, NO.1 (1 parts) 17561B — SUPPORT, EXHAUST PIPE, NO.1 (1 parts) 91511B0616 — not listed in this catalogue 91511B0616 — not listed in this catalogue 9017906007 — not listed in this catalogue 9010510558 — not listed in this catalogue
175912E · 13 callouts, 18 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
9 parts on this figure
Part number Description Fitment Price
17410 — Pipe Assy, Exhaust, Front
17410-31B40 Pipe Assy, Exhaust, Front
2010-09 → 2012-12 ended
3GRFE GRS202 —
17410B — Gasket, Exhaust Pipe
90917-06078 Gasket, Exhaust Pipe
2010-09 → 2012-12 ended
3GRFE GRS202 —
17430 — Pipe Assy, Exhaust, Tail
17430-31A50 Pipe Assy, Exhaust, Tail
2010-09 → 2012-12 ended
3GRFE GRS202 —
17451 — Gasket, Exhaust Pipe
17451-31011 Gasket, Exhaust Pipe
2010-09 → 2011-02 ended
3GRFE GRS202 —
17451-31012 Gasket, Exhaust Pipe
2011-03 → 2012-12 ended
3GRFE GRS202 —
17506A — Bracket Sub-assy, Exhaust Pipe NO.1 Support
17506-31030 Bracket Sub-assy, Exhaust Pipe NO.1 Support
2010-09 → 2012-12 ended
3GRFE GRS202 —
17561B — Support, Exhaust Pipe, NO.1
17565-22030 Support, Exhaust Pipe, NO.1
2010-09 → 2012-12 ended
3GRFE GRS202 —
17562 — Support, Exhaust Pipe, NO.2
17565-22040 Support, Exhaust Pipe, NO.2
2010-09 → 2012-12 ended
3GRFE GRS202 —
17581A — Damper, Exhaust Pipe
17581-46140 Damper, Exhaust Pipe
2010-09 → 2012-12 ended
3GRFE GRS202 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
