Toyota Crown
2010-09 → 2012-12 · chassis GRS202 · catalogue 3312C0 · General
Supported model
Data version 2013-01

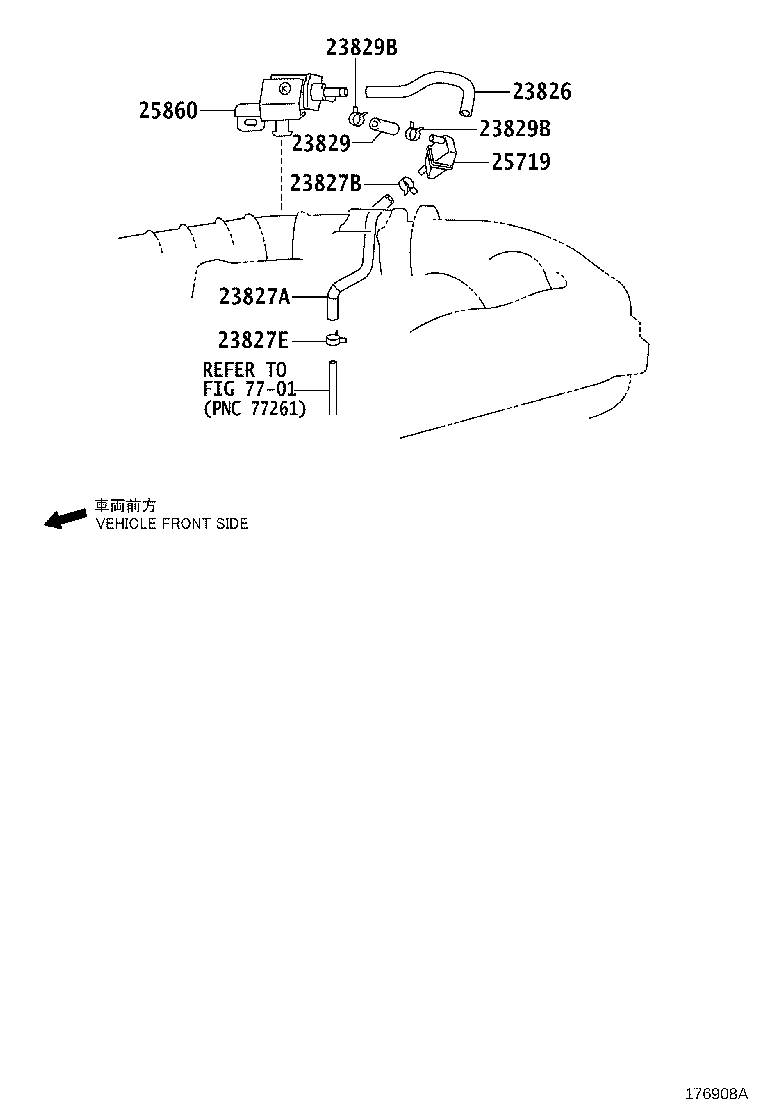

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 23826 — Hose, Fuel Vapor Feed, NO.1 | ||||
| 23826-31050 |
Hose, Fuel Vapor Feed, NO.1
2010-09 → 2012-12
ended
|
3GRFE GRS202 | — | |
| 23827A — Hose, Fuel Vapor Feed, NO.2 | ||||
| 23827-31060 |
Hose, Fuel Vapor Feed, NO.2
2010-09 → 2012-12
ended
|
3GRFE GRS202 | — | |
| 23827B — Clip(FOR FUEL VAPOR FEED HOSE, NO.2) | ||||
| 96132-51300 |
Clip(FOR FUEL VAPOR FEED HOSE, NO.2)
2010-09 → 2012-12
ended
|
3GRFE GRS202 | — | |
| 23827E — Clip(FOR FUEL VAPOR FEED HOSE, NO.2) | ||||
| 96132-41500 |
Clip(FOR FUEL VAPOR FEED HOSE, NO.2)
2010-09 → 2012-12
ended
|
3GRFE GRS202 | — | |
| 23829 — Hose, Fuel Vapor Feed, NO.3 | ||||
| 23829-31010 |
Hose, Fuel Vapor Feed, NO.3
2010-09 → 2012-12
ended
|
3GRFE GRS202 | — | |
| 23829B — Clip(FOR FUEL VAPOR FEED HOSE) | ||||
| 96132-51300 |
Clip(FOR FUEL VAPOR FEED HOSE)
2010-09 → 2012-12
ended
|
3GRFE GRS202 | — | |
| 25719 — Tank, Vacuum Surge | ||||
| 25719-31010 |
Tank, Vacuum Surge
2010-09 → 2012-12
ended
|
3GRFE GRS202 | — | |
| 25860 — Valve Assy, Vacuum Switching, NO.1 | ||||
| 25860-31040 |
Valve Assy, Vacuum Switching, NO.1
2010-09 → 2012-12
ended
|
3GRFE GRS202 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
