Toyota Crown
2010-09 → 2012-12 · chassis GRS202 · catalogue 3312C0 · General
Supported model
Data version 2013-01

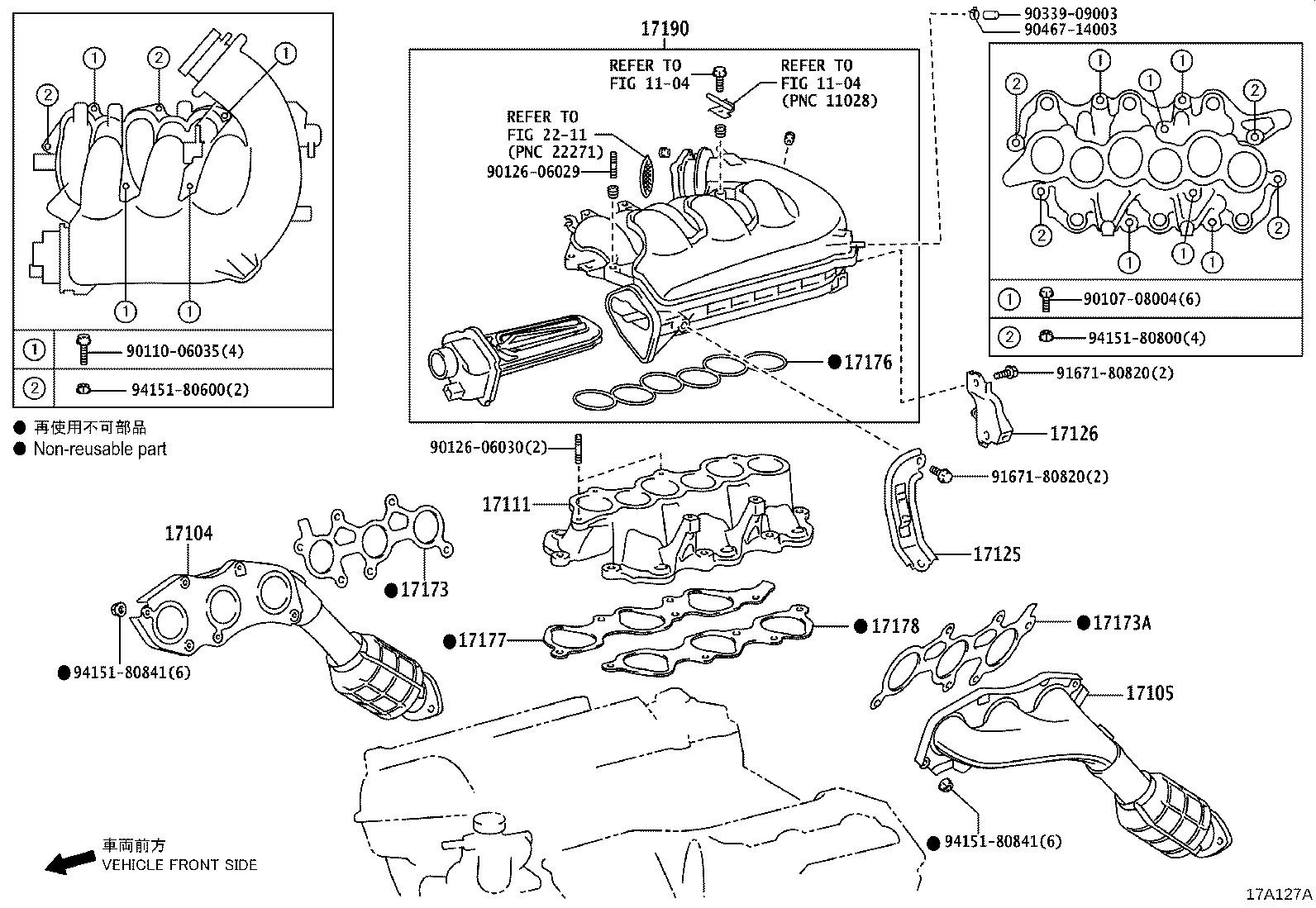

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 17104 — Manifold Sub-assy, Exhaust, RH | ||||
| 17140-31710 |
Manifold Sub-assy, Exhaust, RH
2010-09 → 2012-12
ended
|
3GRFE GRS202 | — | |
| 17105 — Manifold Sub-assy, Exhaust, LH | ||||
| 17150-31710 |
Manifold Sub-assy, Exhaust, LH
2010-09 → 2012-12
ended
|
3GRFE GRS202 | — | |
| 17111 — Manifold, Intake | ||||
| 17111-31120 |
Manifold, Intake
2010-09 → 2012-12
ended
|
3GRFE GRS202 | — | |
| 17125 — Stay, Surge Tank, NO.1 | ||||
| 17125-31030 |
Stay, Surge Tank, NO.1
2010-09 → 2012-12
ended
|
3GRFE GRS202 | — | |
| 17126 — Stay, Surge Tank, NO.2 | ||||
| 17126-31020 |
Stay, Surge Tank, NO.2
2010-09 → 2012-12
ended
|
3GRFE GRS202 | — | |
| 17173 — Gasket, Exhaust Manifold TO Head | ||||
| 17173-31020 |
Gasket, Exhaust Manifold TO Head
2010-09 → 2012-12
ended
|
3GRFE GRS202 | — | |
| 17173A — Gasket, Exhaust Manifold TO Head, LH | ||||
| 17173-31020 |
Gasket, Exhaust Manifold TO Head, LH
2010-09 → 2012-12
ended
|
3GRFE GRS202 | — | |
| 17176 — Gasket, Air Surge Tank TO Intake Manifold | ||||
| 17176-31030 |
Gasket, Air Surge Tank TO Intake Manifold
2010-09 → 2012-12
ended
|
3GRFE GRS202 | — | |
| 17177 — Gasket, Intake Manifold TO Head, NO.1 | ||||
| 17177-31030 |
Gasket, Intake Manifold TO Head, NO.1
2010-09 → 2012-12
ended
|
3GRFE GRS202 | — | |
| 17178 — Gasket, Intake Manifold TO Head, NO.2 | ||||
| 17178-31020 |
Gasket, Intake Manifold TO Head, NO.2
2010-09 → 2012-12
ended
|
3GRFE GRS202 | — | |
| 17190 — Tank Assy, Intake Air Surge | ||||
| 17190-31030 |
Tank Assy, Intake Air Surge
2010-09 → 2012-12
ended
|
3GRFE GRS202 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
