Toyota Crown
2010-09 → 2012-12 · chassis GRS202 · catalogue 3312C0 · General
Supported model
Data version 2013-01

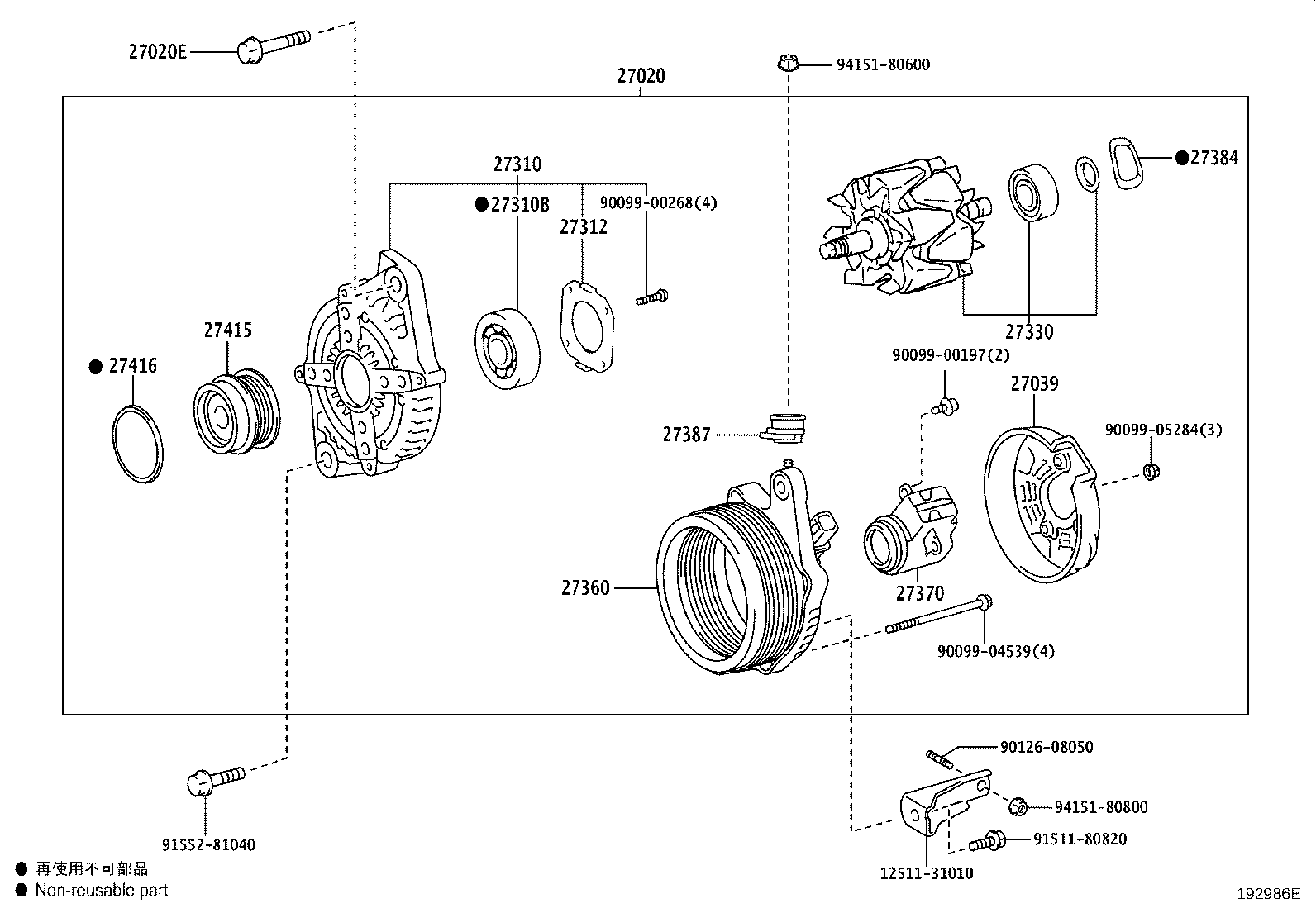

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 27020 — Alternator Assy | ||||
| 27060-31211 note |
Alternator Assy
2010-09 → 2012-05
ended
|
3GRFE GRS202 | — | |
| 27060-31212 note |
Alternator Assy
2012-06 → 2012-12
ended
|
3GRFE GRS202 | — | |
| 27020E — Bolt(FOR ALTERNATOR) | ||||
| 91552-81070 |
Bolt(FOR ALTERNATOR)
2010-09 → 2012-12
ended
|
3GRFE GRS202 | — | |
| 27039 — Cover, Alternator Rear End | ||||
| 27039-31390 |
Cover, Alternator Rear End
2010-09 → 2012-12
ended
|
3GRFE GRS202 | — | |
| 27310 — Frame Assy, Drive End, Alternator | ||||
| 27310-31220 |
Frame Assy, Drive End, Alternator
2010-09 → 2012-12
ended
|
3GRFE GRS202 | — | |
| 27310B — Bearing(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10223 |
Bearing(FOR ALTERNATOR DRIVE END FRAME)
2010-09 → 2012-12
ended
|
3GRFE GRS202 | — | |
| 27312 — Plate, Retainer | ||||
| 27312-72100 |
Plate, Retainer
2010-09 → 2012-12
ended
|
3GRFE GRS202 | — | |
| 27330 — Rotor Assy, Alternator | ||||
| 27330-58460 |
Rotor Assy, Alternator
2010-09 → 2012-12
ended
|
3GRFE GRS202 | — | |
| 27360 — Coil Assy, Alternator | ||||
| 27360-31420 |
Coil Assy, Alternator
2010-09 → 2012-12
ended
|
3GRFE GRS202 | — | |
| 27370 — Holder Assy, Alternator Brush | ||||
| 27370-31220 |
Holder Assy, Alternator Brush
2010-09 → 2012-12
ended
|
3GRFE GRS202 | — | |
| 27384 — Washer | ||||
| 27384-50030 |
Washer
2010-09 → 2012-12
ended
|
3GRFE GRS202 | — | |
| 27387 — Insulator, Terminal | ||||
| 27387-20130 |
Insulator, Terminal
2010-09 → 2012-12
ended
|
3GRFE GRS202 | — | |
| 27415 — Pulley, Alternator W/Clutch | ||||
| 27415-0W130 |
Pulley, Alternator W/Clutch
2010-09 → 2012-12
ended
|
3GRFE GRS202 | — | |
| 27416 — Cap, Alternator Pulley | ||||
| 27416-0W050 |
Cap, Alternator Pulley
2010-09 → 2012-12
ended
|
3GRFE GRS202 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
