Toyota Crown
2010-09 → 2012-12 · chassis GRS202 · catalogue 3312C0 · General
Supported model
Data version 2013-01

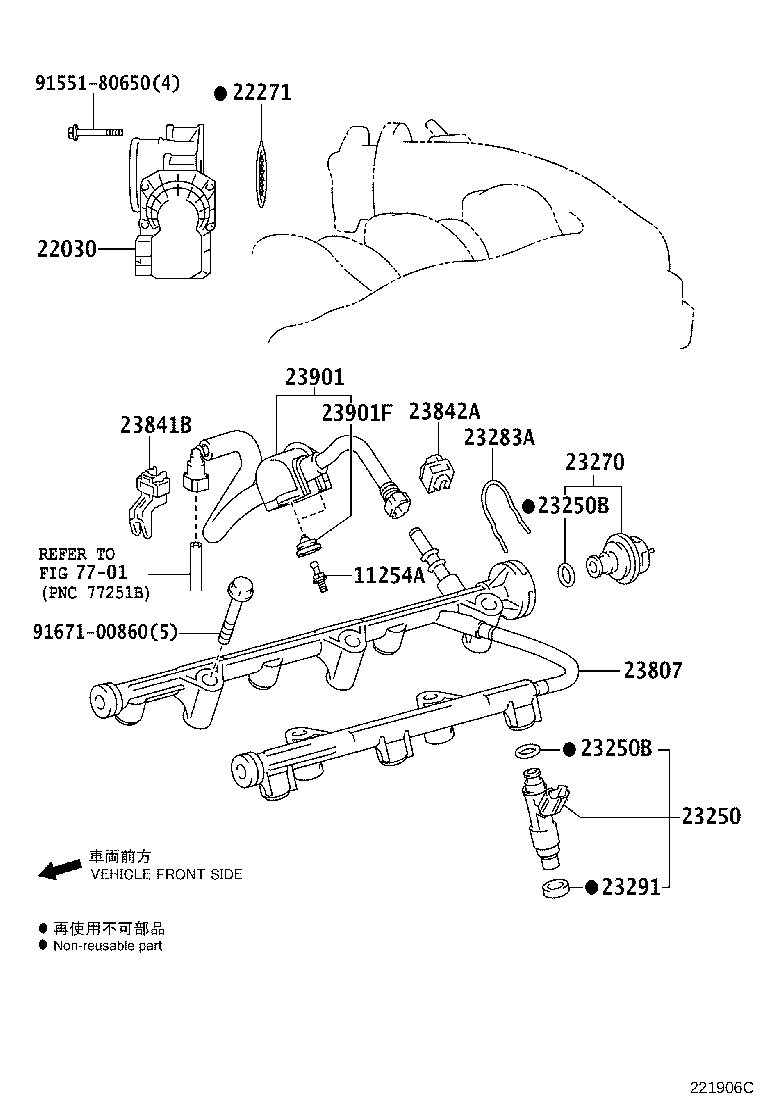

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 11254A — Bracket, V-bank Cover | ||||
| 11254-31020 |
Bracket, V-bank Cover
2010-09 → 2012-12
ended
|
3GRFE GRS202 | — | |
| 22030 — Body Assy, Throttle W/Throttle Position Sensor | ||||
| 22030-31050 |
Body Assy, Throttle W/Throttle Position Sensor
2010-09 → 2012-12
ended
|
3GRFE GRS202 | — | |
| 22271 — Gasket, Throttle Body | ||||
| 22271-31030 |
Gasket, Throttle Body
2010-09 → 2012-12
ended
|
3GRFE GRS202 | — | |
| 23250 — Injector Assy, Fuel | ||||
| 23209-39225 |
Injector Assy, Fuel
2010-09 → 2012-12
ended
|
3GRFE GRS202 | — | |
| 23250B — Ring, O(FOR FUEL INJECTOR) | ||||
| 90301-07033 |
Ring, O(FOR FUEL INJECTOR)
2010-09 → 2012-12
ended
|
3GRFE GRS202 | — | |
| 23270 — Damper Assy, Fuel Pressure Pulsation | ||||
| 23270-31080 |
Damper Assy, Fuel Pressure Pulsation
2010-09 → 2010-12
ended
|
3GRFE GRS202 | — | |
| 23270-31100 |
Damper Assy, Fuel Pressure Pulsation
2010-12 → 2012-12
ended
|
3GRFE GRS202 | — | |
| 23283A — Holder, Fuel Pressure Regulator | ||||
| 23283-31010 |
Holder, Fuel Pressure Regulator
2010-09 → 2012-12
ended
|
3GRFE GRS202 | — | |
| 23291 — Insulator, Injector Vibration | ||||
| 23291-23010 |
Insulator, Injector Vibration
2010-09 → 2012-12
ended
|
3GRFE GRS202 | — | |
| 23807 — Pipe Sub-assy, Fuel Delivery | ||||
| 23807-31030 |
Pipe Sub-assy, Fuel Delivery
2010-09 → 2012-12
ended
|
3GRFE GRS202 | — | |
| 23841B — Clamp, Fuel Pipe, NO.1(FOR EFI) | ||||
| 23841-21050 |
Clamp, Fuel Pipe, NO.1(FOR EFI)
2010-09 → 2012-12
ended
|
3GRFE GRS202 | — | |
| 23842A — Clamp, Fuel Pipe, NO.2(FOR EFI) | ||||
| 23842-31020 |
Clamp, Fuel Pipe, NO.2(FOR EFI)
2010-09 → 2012-12
ended
|
3GRFE GRS202 | — | |
| 23901 — Tube Sub-assy, Fuel | ||||
| 23901-31131 |
Tube Sub-assy, Fuel
2010-09 → 2010-12
ended
|
3GRFE GRS202 | — | |
| 23901-31170 |
Tube Sub-assy, Fuel
2010-12 → 2012-12
ended
|
3GRFE GRS202 | — | |
| 23901F — Grommet(FOR FUEL TUBE) | ||||
| 90480-22024 |
Grommet(FOR FUEL TUBE)
2010-09 → 2012-12
ended
|
3GRFE GRS202 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
