Toyota Crown
2010-09 → 2012-12 · chassis GRS202 · catalogue 3312C0 · General
Supported model
Data version 2013-01

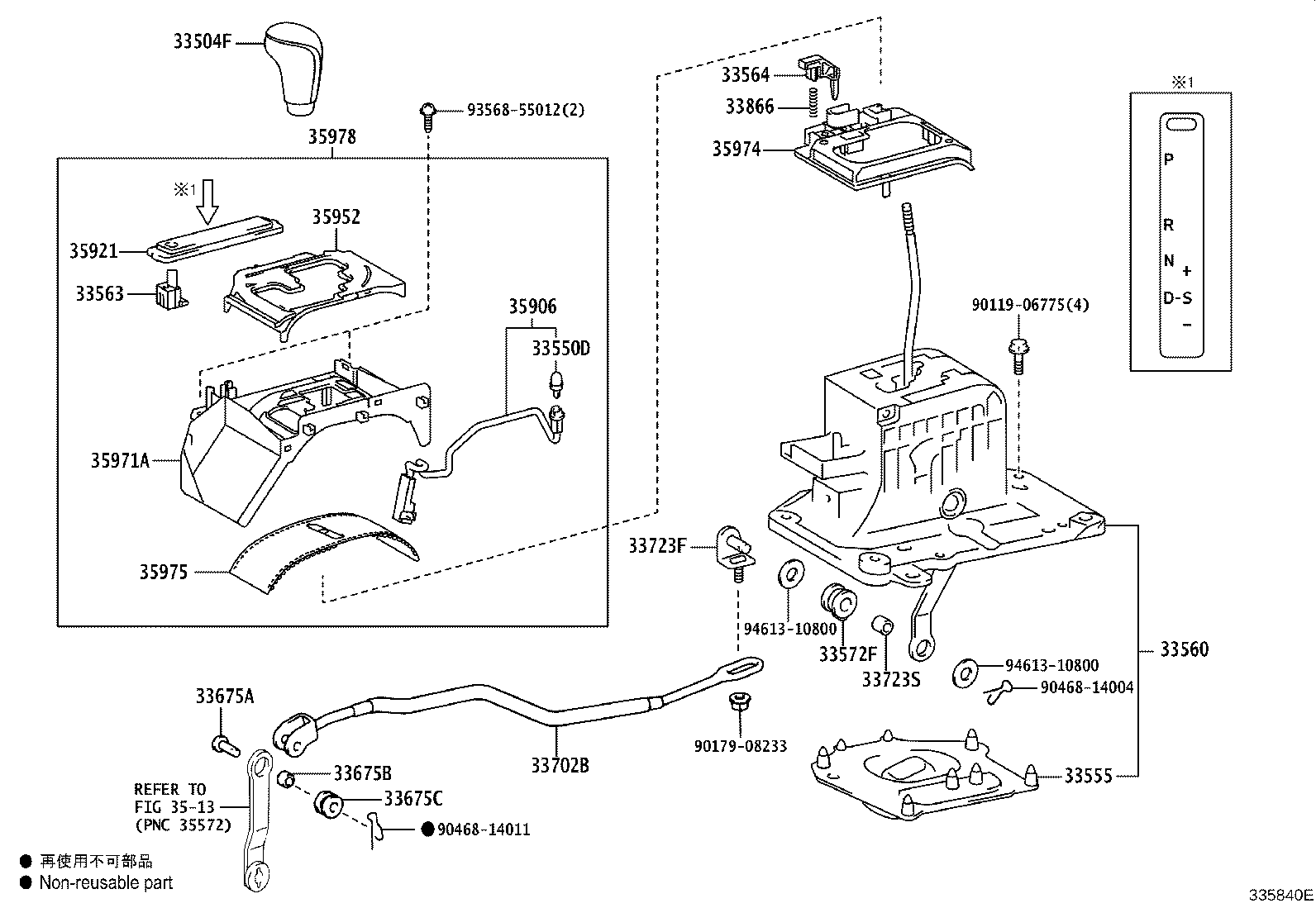

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 33504F — Knob Sub-assy, Shift Lever | ||||
| 33504-30390-C2 note |
Knob Sub-assy, Shift Lever
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 33504-30390-E2 note |
Knob Sub-assy, Shift Lever
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 33550D — Bulb, Position Indicator Lamp | ||||
| 81936-30240 note |
Bulb, Position Indicator Lamp
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 33555 — Boot, Shift Lever | ||||
| 33555-30410 |
Boot, Shift Lever
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 33560 — Unit Assy, Shift Lock Control | ||||
| 33560-30100 |
Unit Assy, Shift Lock Control
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 33563 — Button, Shift Lock Release | ||||
| 33563-30230 |
Button, Shift Lock Release
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 33564 — Link, Shift Lock Release, NO.1 | ||||
| 33564-30180 |
Link, Shift Lock Release, NO.1
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 33572F — Bush, Control Shaft Lower | ||||
| 33572-30060 |
Bush, Control Shaft Lower
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 33675A — Pin, W/Hole (FOR TRANSMISSION CONTROL ROD) | ||||
| 33726-30020 |
Pin, W/Hole (FOR TRANSMISSION CONTROL ROD)
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 33675B — Bush (FOR TRANSMISSION CONTROL ROD) | ||||
| 90560-08091 |
Bush (FOR TRANSMISSION CONTROL ROD)
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 33675C — Grommet (FOR TRANSMISSION CONTROL ROD) | ||||
| 90480-17013 |
Grommet (FOR TRANSMISSION CONTROL ROD)
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 33702B — Rod Sub-assy, Gear Shifting, NO.1 (FOR FLOOR SHIFT) | ||||
| 33702-22140 |
Rod Sub-assy, Gear Shifting, NO.1 (FOR FLOOR SHIFT)
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 33723F — Swivel, Connecting Rod (FOR FLOOR SHIFT) | ||||
| 33723-30100 |
Swivel, Connecting Rod (FOR FLOOR SHIFT)
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 33723S — Bush (FOR CONNECTING ROD SWIVEL) | ||||
| 33514-30090 |
Bush (FOR CONNECTING ROD SWIVEL)
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 33866 — Spring, Shift Lock Release | ||||
| 33866-50010 |
Spring, Shift Lock Release
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 35906 — Wire Sub-assy, Indicator Lamp | ||||
| 35906-30181 |
Wire Sub-assy, Indicator Lamp
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 35921 — Plate, Control Position Indicator | ||||
| 35921-30500 |
Plate, Control Position Indicator
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 35952 — Lens, Position Indicator | ||||
| 35952-30160 |
Lens, Position Indicator
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 35971A — Housing, Position Indicator, Upper | ||||
| 35971-30530 |
Housing, Position Indicator, Upper
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 35974 — Housing, Position Indicator, Lower | ||||
| 35974-30190 |
Housing, Position Indicator, Lower
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 35975 — Cover, Slide (FOR POSITION INDICATOR) | ||||
| 35975-30290 |
Cover, Slide (FOR POSITION INDICATOR)
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 35978 — Indicator, Shift Position | ||||
| 35978-30041 |
Indicator, Shift Position
2010-09 → 2012-12
ended
|
GRS202 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
