Toyota Crown
2010-09 → 2012-12 · chassis GRS202 · catalogue 3312C0 · General
Supported model
Data version 2013-01

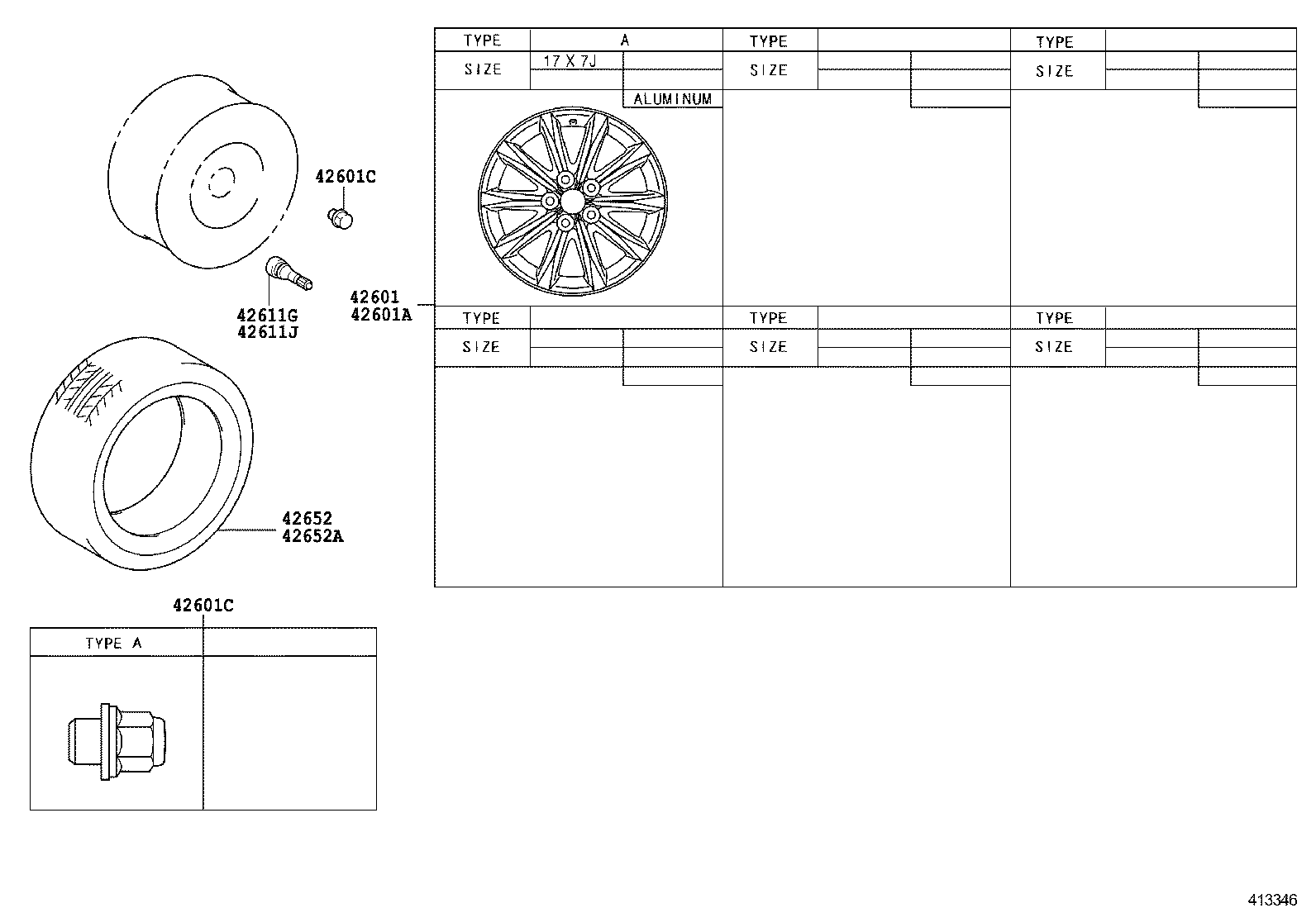

| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 42601 — Wheel, Disc | ||||
| 42611-30B60 note |
Wheel, Disc
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 42601A — Wheel, Disc (FOR SPARE) | ||||
| 42611-30B60 note |
Wheel, Disc (FOR SPARE)
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 42601C — Nut, Hub (FOR AXLE) | ||||
| 90942-01033 note |
Nut, Hub (FOR AXLE)
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 42611G — Valve (FOR TUBELESS TIRE) | ||||
| 90942-05009 |
Valve (FOR TUBELESS TIRE)
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 42611J — Valve (FOR TUBELESS TIRE SPARE) | ||||
| 90942-05009 |
Valve (FOR TUBELESS TIRE SPARE)
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 42652 — Tire | ||||
| 42652-30C40 note |
Tire
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 42652-30C50 note |
Tire
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 42652-30C60 note |
Tire
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 42652A — Tire (FOR SPARE) | ||||
| 42652-30C40 note |
Tire (FOR SPARE)
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 42652-30C50 note |
Tire (FOR SPARE)
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 42652-30C60 note |
Tire (FOR SPARE)
2010-09 → 2012-12
ended
|
GRS202 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
