Toyota Crown
2010-09 → 2012-12 · chassis GRS202 · catalogue 3312C0 · General
Supported model
Data version 2013-01

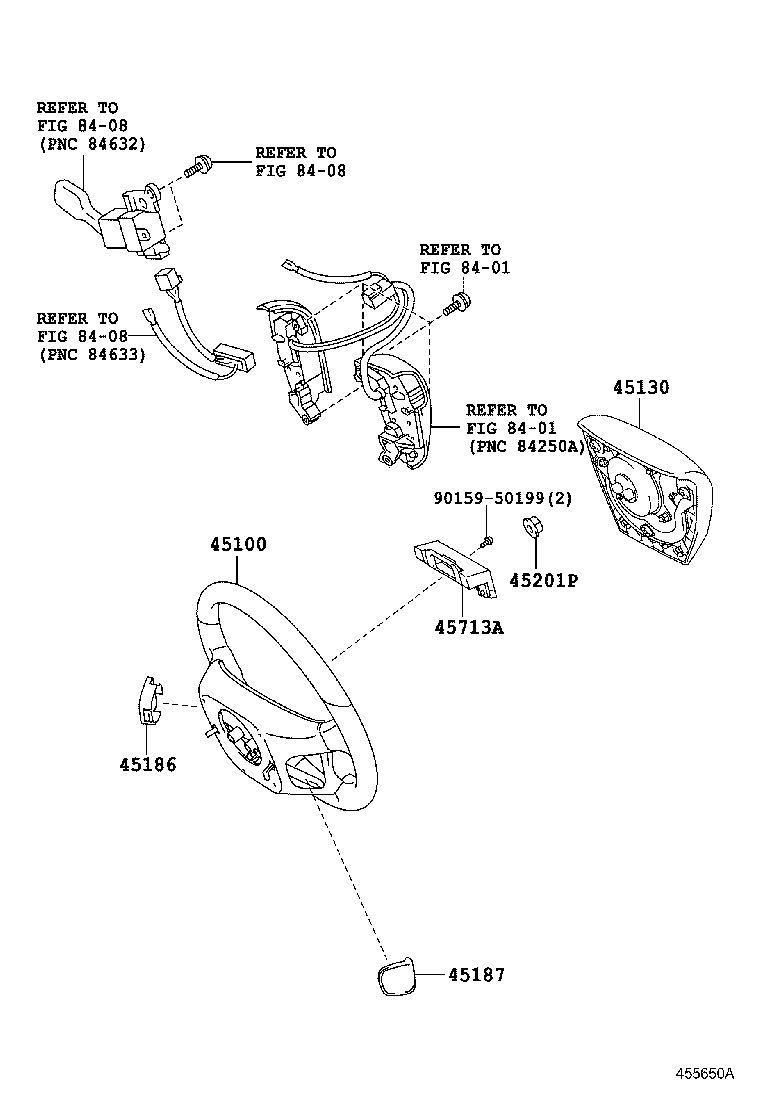

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 45100 — Wheel Assy, Steering | ||||
| 45100-30A60-C2 note |
Wheel Assy, Steering
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 45100-30A60-E2 note |
Wheel Assy, Steering
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 45130 — Button Assy, Horn | ||||
| 45130-30680-C0 note |
Button Assy, Horn
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 45130-30680-E0 note |
Button Assy, Horn
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 45186 — Cover, Steering Wheel, Lower NO.2 | ||||
| 45186-30170-C0 note |
Cover, Steering Wheel, Lower NO.2
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 45186-30170-E0 note |
Cover, Steering Wheel, Lower NO.2
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 45187 — Cover, Steering Wheel, Lower NO.3 | ||||
| 45187-30110-C0 note |
Cover, Steering Wheel, Lower NO.3
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 45187-30110-E0 note |
Cover, Steering Wheel, Lower NO.3
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 45201P — Nut, Steering Wheel Set | ||||
| 90179-12071 |
Nut, Steering Wheel Set
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 45713A — Damper, Steering Shake | ||||
| 45713-30170 |
Damper, Steering Shake
2010-09 → 2012-12
ended
|
GRS202 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
