Toyota Crown
2010-09 → 2012-12 · chassis GRS202 · catalogue 3312C0 · General
Supported model
Data version 2013-01

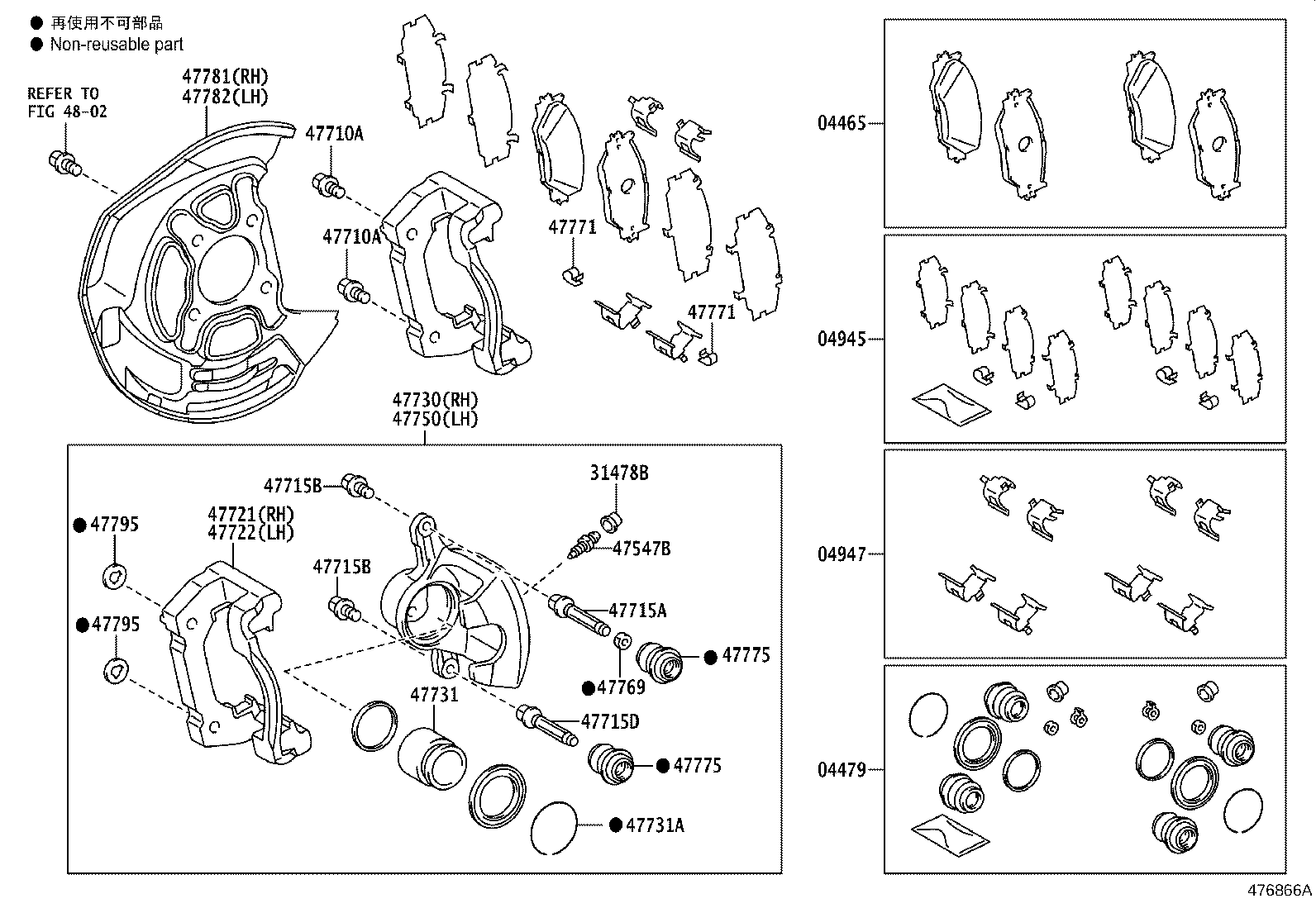

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 04465 — Pad Kit, Disc Brake, Front | ||||
| 04465-30330 note |
Pad Kit, Disc Brake, Front
2010-09 → 2011-12
ended
|
GRS202 | — | |
| 04465-30480 note |
Pad Kit, Disc Brake, Front
2011-12 → 2012-12
ended
|
GRS202 | — | |
| 04479 — Cylinder Kit, Disc Brake, Front | ||||
| 04478-30260 |
Cylinder Kit, Disc Brake, Front
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 04945 — Shim Kit, Anti Squeal, Front | ||||
| 04945-30170 |
Shim Kit, Anti Squeal, Front
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 04947 — Fitting Kit, Disc Brake, Front | ||||
| 04947-30140 |
Fitting Kit, Disc Brake, Front
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 31478B — Cap, Bleeder Plug(FOR FRONT DISC BRAKE) | ||||
| 31478-30010 |
Cap, Bleeder Plug(FOR FRONT DISC BRAKE)
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 47547B — Plug, Bleeder(FOR FRONT DISC BRAKE) | ||||
| 47547-27030 |
Plug, Bleeder(FOR FRONT DISC BRAKE)
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 47710A — Bolt, Hexagon(FOR FRONT DISC BRAKE CALIPER) | ||||
| 90119-12415 note |
Bolt, Hexagon(FOR FRONT DISC BRAKE CALIPER)
2011-11 → 2012-12
ended
|
GRS202 | — | |
| 91552-K1240 note |
Bolt, Hexagon(FOR FRONT DISC BRAKE CALIPER)
2010-09 → 2011-11
ended
|
GRS202 | — | |
| 47715A — Pin, Front Disc Brake Cylinder Slide | ||||
| 47715-22070 |
Pin, Front Disc Brake Cylinder Slide
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 47715B — Bolt(FOR FRONT DISC BRAKE CYLINDER SLIDE) | ||||
| 90105-08164 |
Bolt(FOR FRONT DISC BRAKE CYLINDER SLIDE)
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 47715D — Pin, Front Disc Brake Cylinder Slide, NO.2 | ||||
| 47715-33050 |
Pin, Front Disc Brake Cylinder Slide, NO.2
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 47721 — Mounting, Front Disc Brake Cylinder, RH | ||||
| 47721-30521 |
Mounting, Front Disc Brake Cylinder, RH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 47722 — Mounting, Front Disc Brake Cylinder, LH | ||||
| 47721-30521 |
Mounting, Front Disc Brake Cylinder, LH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 47730 — Cylinder Assy, Front Disc Brake, RH | ||||
| 47730-30521 |
Cylinder Assy, Front Disc Brake, RH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 47731 — Piston, Front Disc Brake | ||||
| 47731-33070 |
Piston, Front Disc Brake
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 47731A — Ring, Set(FOR FRONT DISC BRAKE PISTON) | ||||
| 90520-86005 |
Ring, Set(FOR FRONT DISC BRAKE PISTON)
2010-09 → 2011-12
ended
|
GRS202 | — | |
| 47750 — Cylinder Assy, Disc Brake, LH | ||||
| 47750-30521 |
Cylinder Assy, Disc Brake, LH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 47769 — Bush, Cylinder Slide, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47769-50010 |
Bush, Cylinder Slide, NO.1(FOR FRONT DISC BRAKE)
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 47771 — Plate, Pad Wear Indicator, NO.1 | ||||
| 47771-30090 |
Plate, Pad Wear Indicator, NO.1
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 47775 — Boot, Bush Dust(FOR FRONT DISC BRAKE) | ||||
| 47775-50010 |
Boot, Bush Dust(FOR FRONT DISC BRAKE)
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 47781 — Cover, Disc Brake Dust, Front RH | ||||
| 47781-30220 |
Cover, Disc Brake Dust, Front RH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 47782 — Cover, Disc Brake Dust, Front LH | ||||
| 47782-30220 |
Cover, Disc Brake Dust, Front LH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 47795 — Plate, Front Disc Brake Caliper, NO.1 | ||||
| 47795-30520 |
Plate, Front Disc Brake Caliper, NO.1
2010-09 → 2012-12
ended
|
GRS202 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
