Toyota Crown
2010-09 → 2012-12 · chassis GRS202 · catalogue 3312C0 · General
Supported model
Data version 2013-01

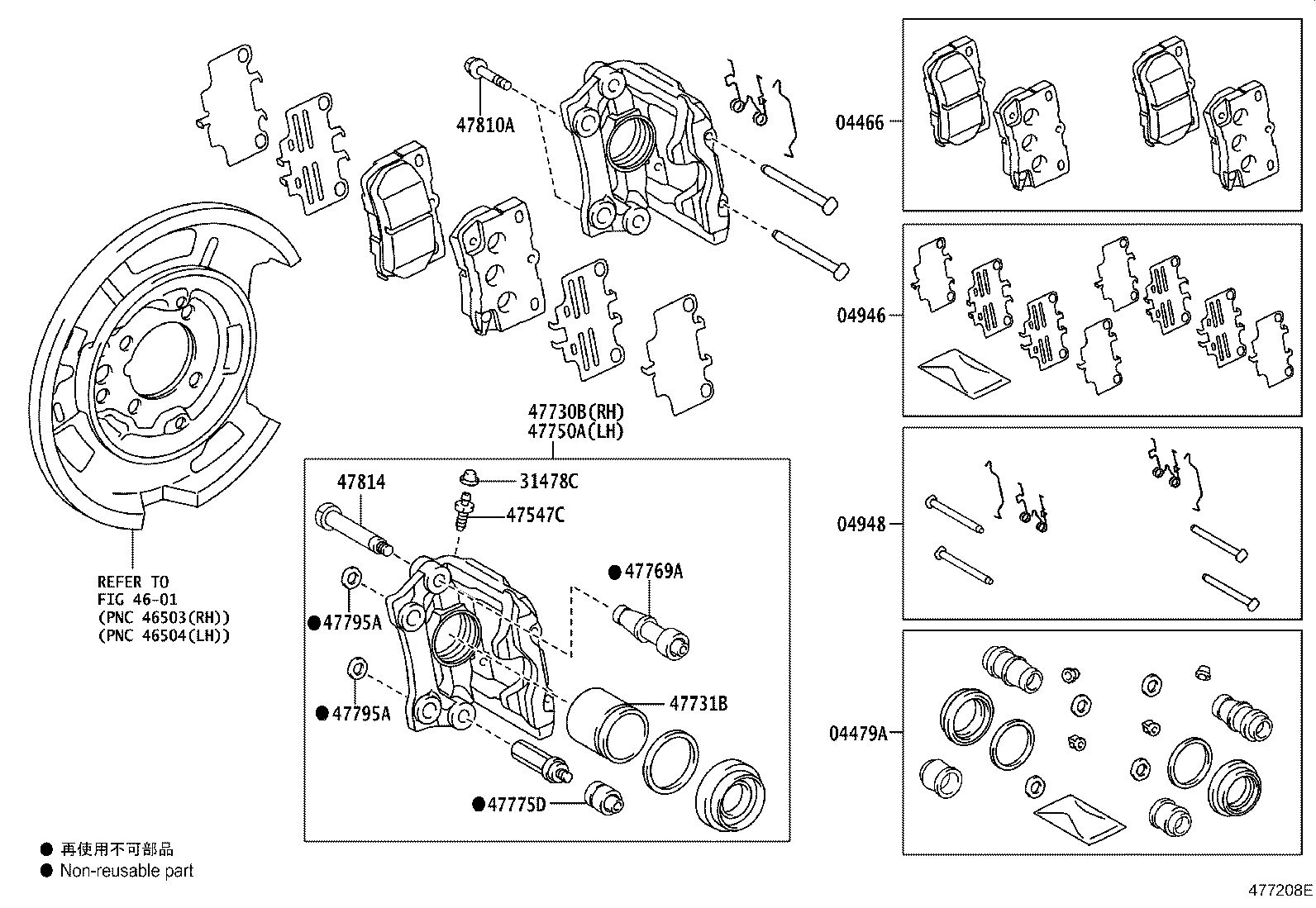

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 04466 — Pad Kit, Disc Brake, Rear | ||||
| 04466-30230 note |
Pad Kit, Disc Brake, Rear
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 04479A — Cylinder Kit, Disc Brake, Rear | ||||
| 04479-30510 |
Cylinder Kit, Disc Brake, Rear
2010-09 → 2011-04
ended
|
GRS202 | — | |
| 04479-53070 |
Cylinder Kit, Disc Brake, Rear
2011-04 → 2012-12
ended
|
GRS202 | — | |
| 04946 — Shim Kit, Anti Squeal(FOR REAR DISC BRAKE) | ||||
| 04946-30110 |
Shim Kit, Anti Squeal(FOR REAR DISC BRAKE)
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 04948 — Fitting Kit, Disc Brake, Rear | ||||
| 04948-30220 |
Fitting Kit, Disc Brake, Rear
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 31478C — Cap, Bleeder Plug(FOR REAR DISC BRAKE) | ||||
| 31478-30010 |
Cap, Bleeder Plug(FOR REAR DISC BRAKE)
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 47547C — Plug, Bleeder(FOR REAR DISC BRAKE) | ||||
| 47547-27030 |
Plug, Bleeder(FOR REAR DISC BRAKE)
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 47730B — Cylinder Assy, Rear Disc Brake, RH | ||||
| 47830-53051 note |
Cylinder Assy, Rear Disc Brake, RH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 47731B — Piston, Rear Disc Brake | ||||
| 47831-30300 |
Piston, Rear Disc Brake
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 47750A — Cylinder Assy, Disc Brake, Rear LH | ||||
| 47850-53051 note |
Cylinder Assy, Disc Brake, Rear LH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 47769A — Bush, Cylinder Slide, NO.1(FOR REAR DISC BRAKE) | ||||
| 47879-30300 |
Bush, Cylinder Slide, NO.1(FOR REAR DISC BRAKE)
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 47775D — Boot, Bush Dust(FOR REAR DISC BRAKE) | ||||
| 47875-30340 |
Boot, Bush Dust(FOR REAR DISC BRAKE)
2010-09 → 2011-04
ended
|
GRS202 | — | |
| 47875-30341 |
Boot, Bush Dust(FOR REAR DISC BRAKE)
2011-04 → 2012-12
ended
|
GRS202 | — | |
| 47795A — Plate, Rear Disc Brake Caliper, NO.1 | ||||
| 47895-30300 |
Plate, Rear Disc Brake Caliper, NO.1
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 47810A — Bolt, Hexagon(FOR REAR CALIPER) | ||||
| 90105-10525 |
Bolt, Hexagon(FOR REAR CALIPER)
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 47814 — Pin, Cylinder Slide, NO.1(FOR REAR DISC BRAKE) | ||||
| 47814-30300 |
Pin, Cylinder Slide, NO.1(FOR REAR DISC BRAKE)
2010-09 → 2012-12
ended
|
GRS202 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
