Toyota Crown
2010-09 → 2012-12 · chassis GRS202 · catalogue 3312C0 · General
Supported model
Data version 2013-01

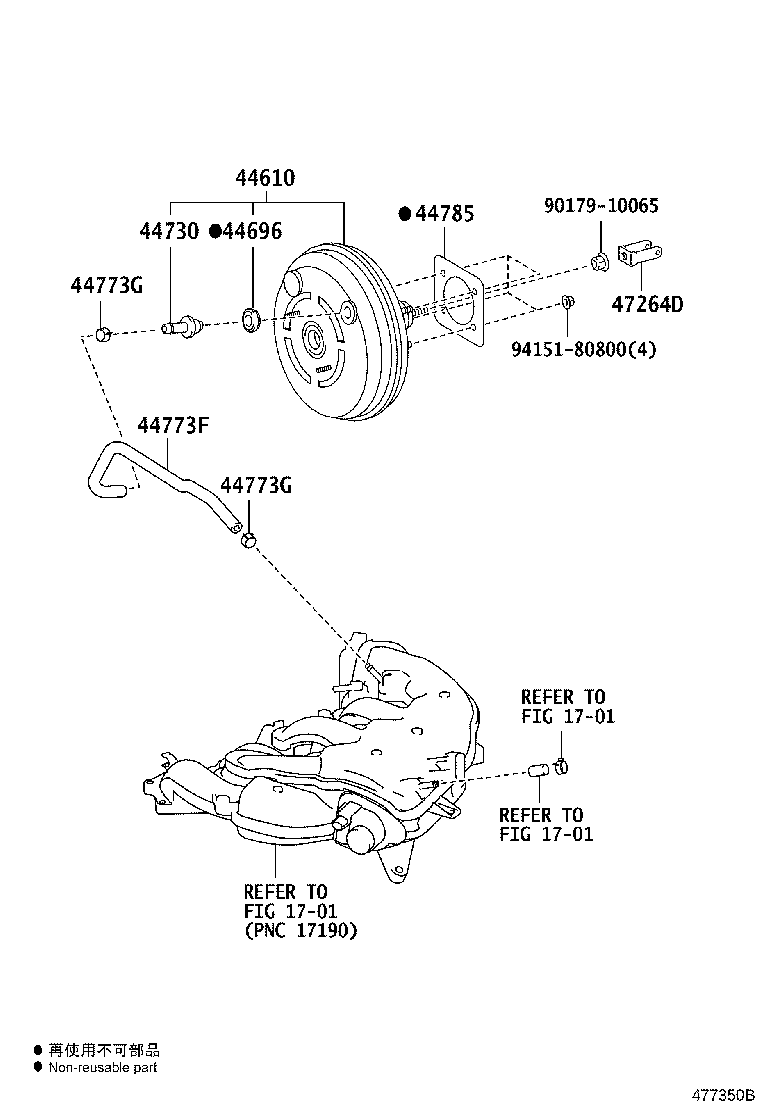

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 44610 — Booster Assy, Brake | ||||
| 44610-30B21 |
Booster Assy, Brake
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 44696 — Grommet, Check Valve | ||||
| 90480-24439 |
Grommet, Check Valve
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 44730 — Valve Assy, Vacuum Check(FOR BRAKE) | ||||
| 44730-22150 |
Valve Assy, Vacuum Check(FOR BRAKE)
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 44773F — Hose, Union TO Check Valve | ||||
| 44773-30660 |
Hose, Union TO Check Valve
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 44773G — Clip(FOR UNION TO CHECK VALVE HOSE) | ||||
| 90467-16014 |
Clip(FOR UNION TO CHECK VALVE HOSE)
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 44785 — Gasket, Brake Booster | ||||
| 44785-47010 |
Gasket, Brake Booster
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 47264D — Clevis, Brake Master Cylinder Push Rod | ||||
| 47264-22040 |
Clevis, Brake Master Cylinder Push Rod
2010-09 → 2012-12
ended
|
GRS202 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
