Toyota Crown

2010-09 → 2012-12 · chassis GRS202 · catalogue 3312C0 · General

Supported model Data version 2013-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

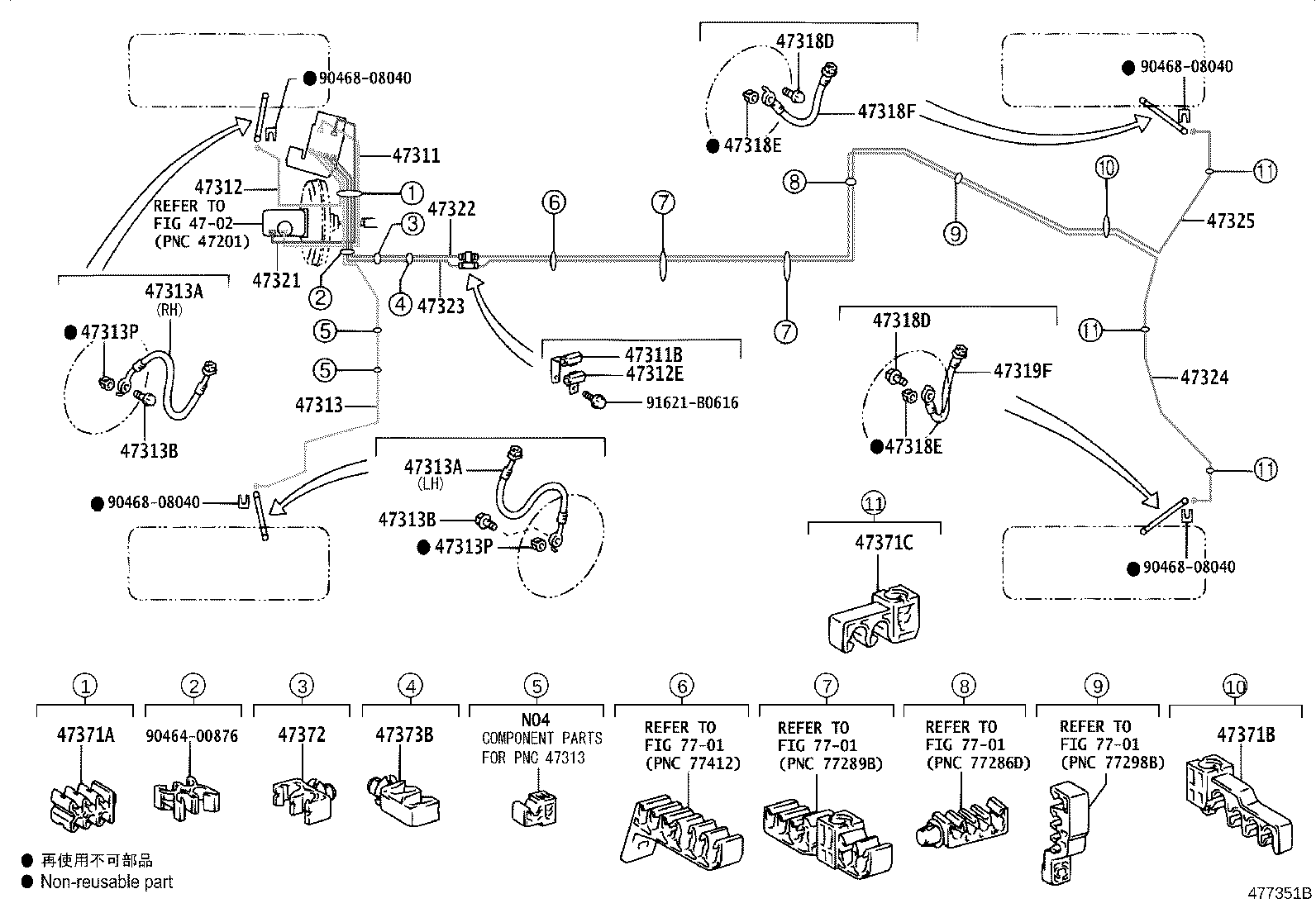

Exploded illustration 477351B 47371B — CLAMP, BRAKE TUBE, NO.6 (1 parts) 9046808040 — not listed in this catalogue 47312 — TUBE, FRONT BRAKE, NO.2 (1 parts) 47311 — TUBE, FRONT BRAKE, NO.1 (1 parts) 47373B — CLAMP, BRAKE TUBE, NO.3 (1 parts) 47372 — CLAMP, BRAKE TUBE, NO.2 (1 parts) 9046400876 — not listed in this catalogue 47371A — CLAMP, BRAKE TUBE, NO.1 (1 parts) 9046808040 — not listed in this catalogue 47313P — GASKET(FOR FRONT FLEXIBLE HOSE) (1 parts) 47313B — BOLT, UNION(FOR FRONT FLEXIBLE HOSE) (1 parts) 47313A — HOSE, FLEXIBLE, NO.1(FOR FRONT) (1 parts) 47371C — CLAMP, BRAKE TUBE, NO.7 (1 parts) 47318E — GASKET(FOR REAR FLEXIBLE HOSE) (1 parts) 47318D — BOLT, UNION(FOR REAR FLEXIBLE HOSE) (1 parts) 47319F — HOSE, FLEXIBLE(FOR REAR LH) (1 parts) 47311B — WAY, NO.1(FOR FRONT BRAKE TUBE) (1 parts) 47312E — WAY, NO.2(FOR FRONT BRAKE TUBE) (1 parts) 91621B0616 — not listed in this catalogue 47318E — GASKET(FOR REAR FLEXIBLE HOSE) (1 parts) 47318F — HOSE, FLEXIBLE(FOR REAR RH) (1 parts) 9046808040 — not listed in this catalogue 9046808040 — not listed in this catalogue 47318D — BOLT, UNION(FOR REAR FLEXIBLE HOSE) (1 parts) 47313B — BOLT, UNION(FOR FRONT FLEXIBLE HOSE) (1 parts) 47313P — GASKET(FOR FRONT FLEXIBLE HOSE) (1 parts) 47313A — HOSE, FLEXIBLE, NO.1(FOR FRONT) (1 parts) 47321 — TUBE, REAR BRAKE, NO.1 (1 parts) 47313 — TUBE, FRONT BRAKE, NO.3 (1 parts) 47323 — TUBE, REAR BRAKE, NO.3 (1 parts) 47322 — TUBE, REAR BRAKE, NO.2 (1 parts) 47324 — TUBE, REAR BRAKE, NO.4 (1 parts) 47325 — TUBE, REAR BRAKE, NO.5 (1 parts) 4702 — not listed in this catalogue 7701 — not listed in this catalogue 7701 — not listed in this catalogue 7701 — not listed in this catalogue 7701 — not listed in this catalogue
477351B · 27 callouts, 11 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
22 parts on this figure
Part number Description Fitment Price
47311 — Tube, Front Brake, NO.1
47311-30700 Tube, Front Brake, NO.1
2010-09 → 2012-12 ended
GRS202 —
47311B — Way, NO.1(FOR FRONT BRAKE TUBE)
90412-10250 Way, NO.1(FOR FRONT BRAKE TUBE)
2010-09 → 2012-12 ended
GRS202 —
47312 — Tube, Front Brake, NO.2
47312-30650 Tube, Front Brake, NO.2
2010-09 → 2012-12 ended
GRS202 —
47312E — Way, NO.2(FOR FRONT BRAKE TUBE)
90412-10144 Way, NO.2(FOR FRONT BRAKE TUBE)
2010-09 → 2012-12 ended
GRS202 —
47313 — Tube, Front Brake, NO.3
47313-30610 Tube, Front Brake, NO.3
2010-09 → 2012-12 ended
GRS202 —
47313A — Hose, Flexible, NO.1(FOR FRONT)
90947-02D89 note Hose, Flexible, NO.1(FOR FRONT)
2010-09 → 2012-12 ended
GRS202 —
47313B — Bolt, Union(FOR FRONT FLEXIBLE HOSE)
90401-10058 Bolt, Union(FOR FRONT FLEXIBLE HOSE)
2010-09 → 2012-12 ended
GRS202 —
47313P — Gasket(FOR FRONT FLEXIBLE HOSE)
47389-50020 Gasket(FOR FRONT FLEXIBLE HOSE)
2010-09 → 2012-12 ended
GRS202 —
47318D — Bolt, Union(FOR REAR FLEXIBLE HOSE)
90401-10058 Bolt, Union(FOR REAR FLEXIBLE HOSE)
2010-09 → 2012-12 ended
GRS202 —
47318E — Gasket(FOR REAR FLEXIBLE HOSE)
47389-50020 Gasket(FOR REAR FLEXIBLE HOSE)
2010-09 → 2012-12 ended
GRS202 —
47318F — Hose, Flexible(FOR REAR RH)
90947-02F67 Hose, Flexible(FOR REAR RH)
2010-09 → 2012-12 ended
GRS202 —
47319F — Hose, Flexible(FOR REAR LH)
90947-02F67 Hose, Flexible(FOR REAR LH)
2010-09 → 2012-12 ended
GRS202 —
47321 — Tube, Rear Brake, NO.1
47321-30410 Tube, Rear Brake, NO.1
2010-09 → 2012-12 ended
GRS202 —
47322 — Tube, Rear Brake, NO.2
47322-30380 Tube, Rear Brake, NO.2
2010-09 → 2012-12 ended
GRS202 —
47323 — Tube, Rear Brake, NO.3
47323-30340 Tube, Rear Brake, NO.3
2010-09 → 2012-12 ended
GRS202 —
47324 — Tube, Rear Brake, NO.4
47324-30310 Tube, Rear Brake, NO.4
2010-09 → 2012-12 ended
GRS202 —
47325 — Tube, Rear Brake, NO.5
47325-30090 Tube, Rear Brake, NO.5
2010-09 → 2012-12 ended
GRS202 —
47371A — Clamp, Brake Tube, NO.1
90949-01C51 Clamp, Brake Tube, NO.1
2010-09 → 2012-12 ended
GRS202 —
47371B — Clamp, Brake Tube, NO.6
90949-01D09 Clamp, Brake Tube, NO.6
2010-09 → 2012-12 ended
GRS202 —
47371C — Clamp, Brake Tube, NO.7
90949-01D11 Clamp, Brake Tube, NO.7
2010-09 → 2012-12 ended
GRS202 —
47372 — Clamp, Brake Tube, NO.2
90949-01D12 Clamp, Brake Tube, NO.2
2010-09 → 2012-12 ended
GRS202 —
47373B — Clamp, Brake Tube, NO.3
90949-01D13 Clamp, Brake Tube, NO.3
2010-09 → 2012-12 ended
GRS202 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
