Toyota Crown
2010-09 → 2012-12 · chassis GRS202 · catalogue 3312C0 · General
Supported model
Data version 2013-01

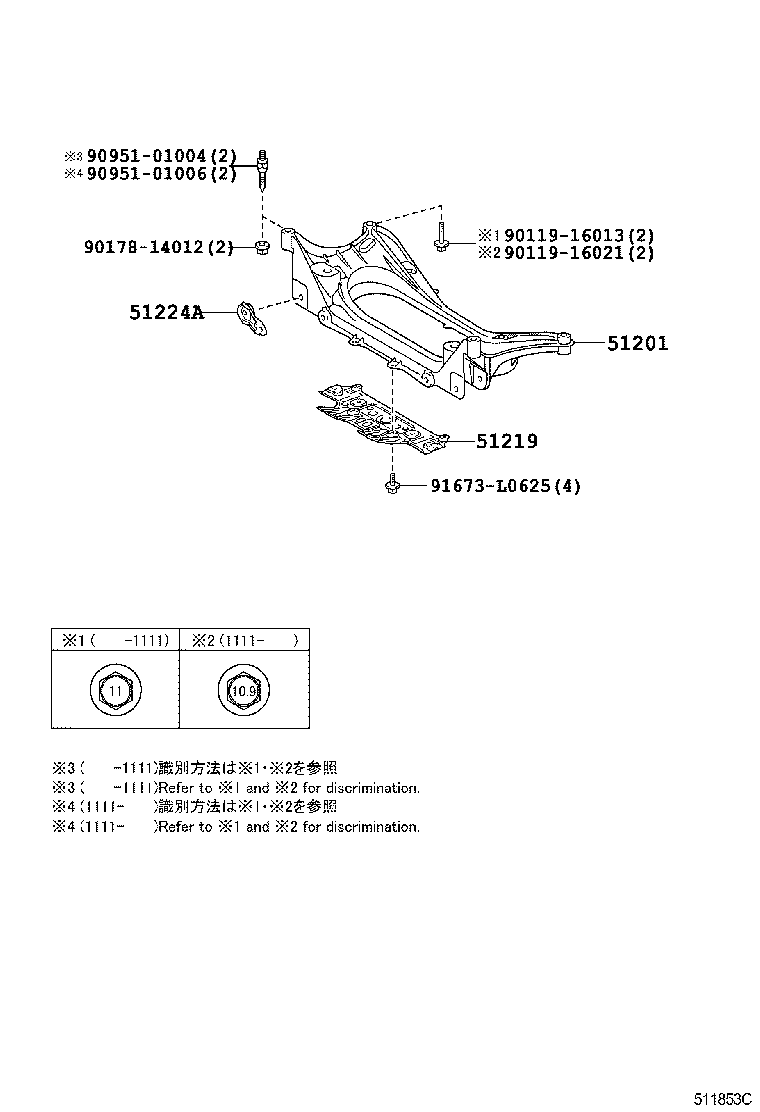

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 51201 — Crossmember Sub-assy, Front Suspension | ||||
| 51201-30130 |
Crossmember Sub-assy, Front Suspension
2010-09 → 2011-08
ended
|
GRS202 | — | |
| 51201-30140 |
Crossmember Sub-assy, Front Suspension
2011-08 → 2012-12
ended
|
GRS202 | — | |
| 51219 — Protector, Front Suspension Member, Lwr | ||||
| 51219-30031 |
Protector, Front Suspension Member, Lwr
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 51224A — Plate, Front Suspension Menber Brace | ||||
| 51224-30030 |
Plate, Front Suspension Menber Brace
2010-09 → 2012-12
ended
|
GRS202 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
