Toyota Crown
2010-09 → 2012-12 · chassis GRS202 · catalogue 3312C0 · General
Supported model
Data version 2013-01

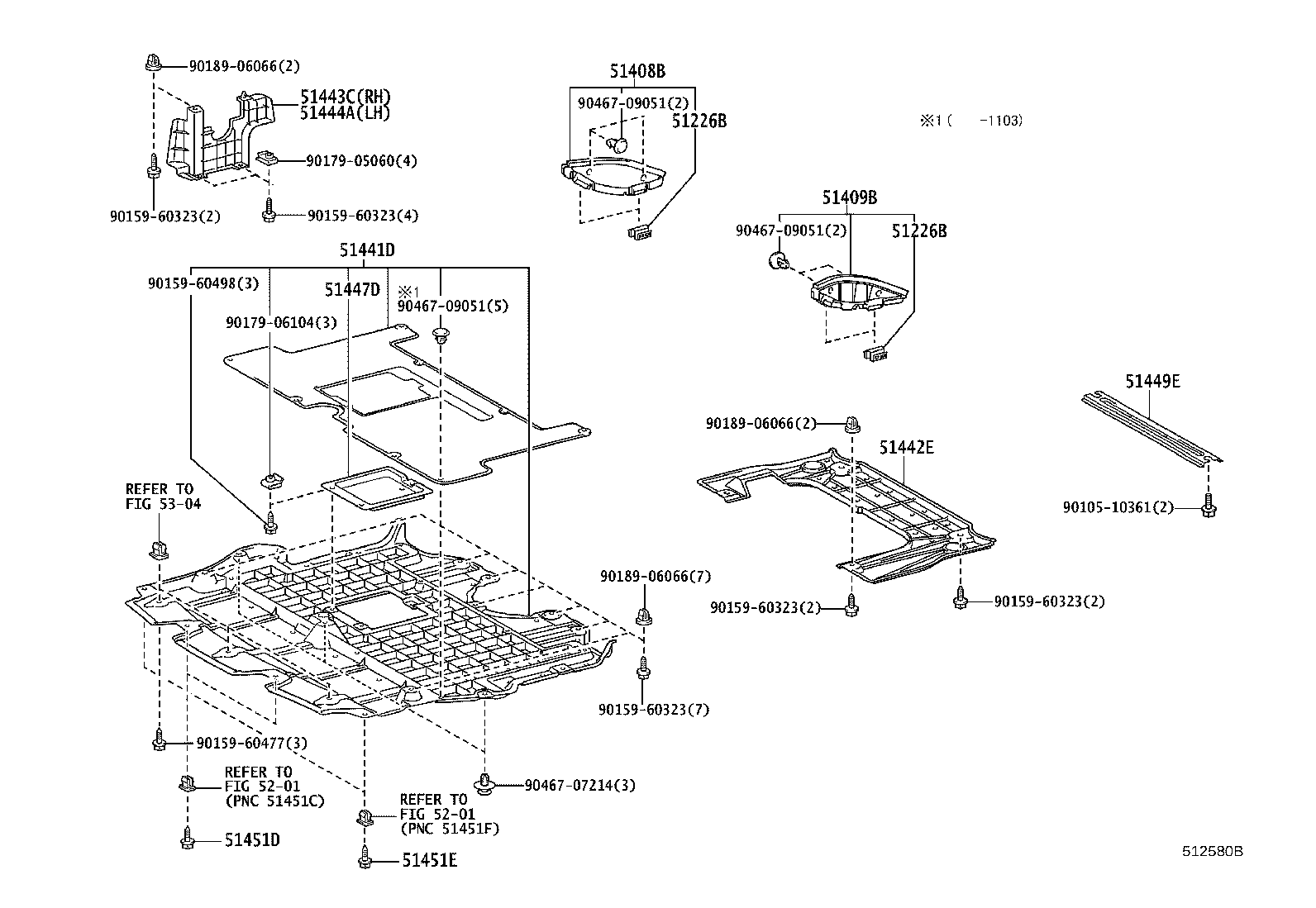

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 51226B — Plate, Front Suspension Member, NO.2 | ||||
| 51226-30020 |
Plate, Front Suspension Member, NO.2
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 51408B — Cover Sub-assy, Engine Under, RH | ||||
| 51408-30060 |
Cover Sub-assy, Engine Under, RH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 51409B — Cover Sub-assy, Engine Under, LH | ||||
| 51409-30060 |
Cover Sub-assy, Engine Under, LH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 51441D — Cover, Engine Under | ||||
| 51410-30141 |
Cover, Engine Under
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 51442E — Cover, Engine Under, NO.2 | ||||
| 51442-30151 |
Cover, Engine Under, NO.2
2010-09 → 2011-06
ended
|
GRS202 | — | |
| 51442-30181 |
Cover, Engine Under, NO.2
2011-06 → 2012-12
ended
|
GRS202 | — | |
| 51443C — Cover, Engine Under, Rear RH | ||||
| 51443-30141 |
Cover, Engine Under, Rear RH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 51444A — Cover, Engine Under, Rear LH | ||||
| 51444-30171 |
Cover, Engine Under, Rear LH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 51447D — Cover, Engine Under, NO.4 Center | ||||
| 51447-30080 |
Cover, Engine Under, NO.4 Center
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 51449E — Bracket, Engine Under Cover Air Guide | ||||
| 51449-30100 |
Bracket, Engine Under Cover Air Guide
2011-06 → 2012-12
ended
|
GRS202 | — | |
| 51449-53030 |
Bracket, Engine Under Cover Air Guide
2010-09 → 2011-06
ended
|
GRS202 | — | |
| 51451D — Screw, NO.1 | ||||
| 90159-60477 |
Screw, NO.1
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 51451E — Screw, NO.2 | ||||
| 90159-60477 |
Screw, NO.2
2010-09 → 2012-12
ended
|
GRS202 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
