Toyota Crown
2010-09 → 2012-12 · chassis GRS202 · catalogue 3312C0 · General
Supported model
Data version 2013-01

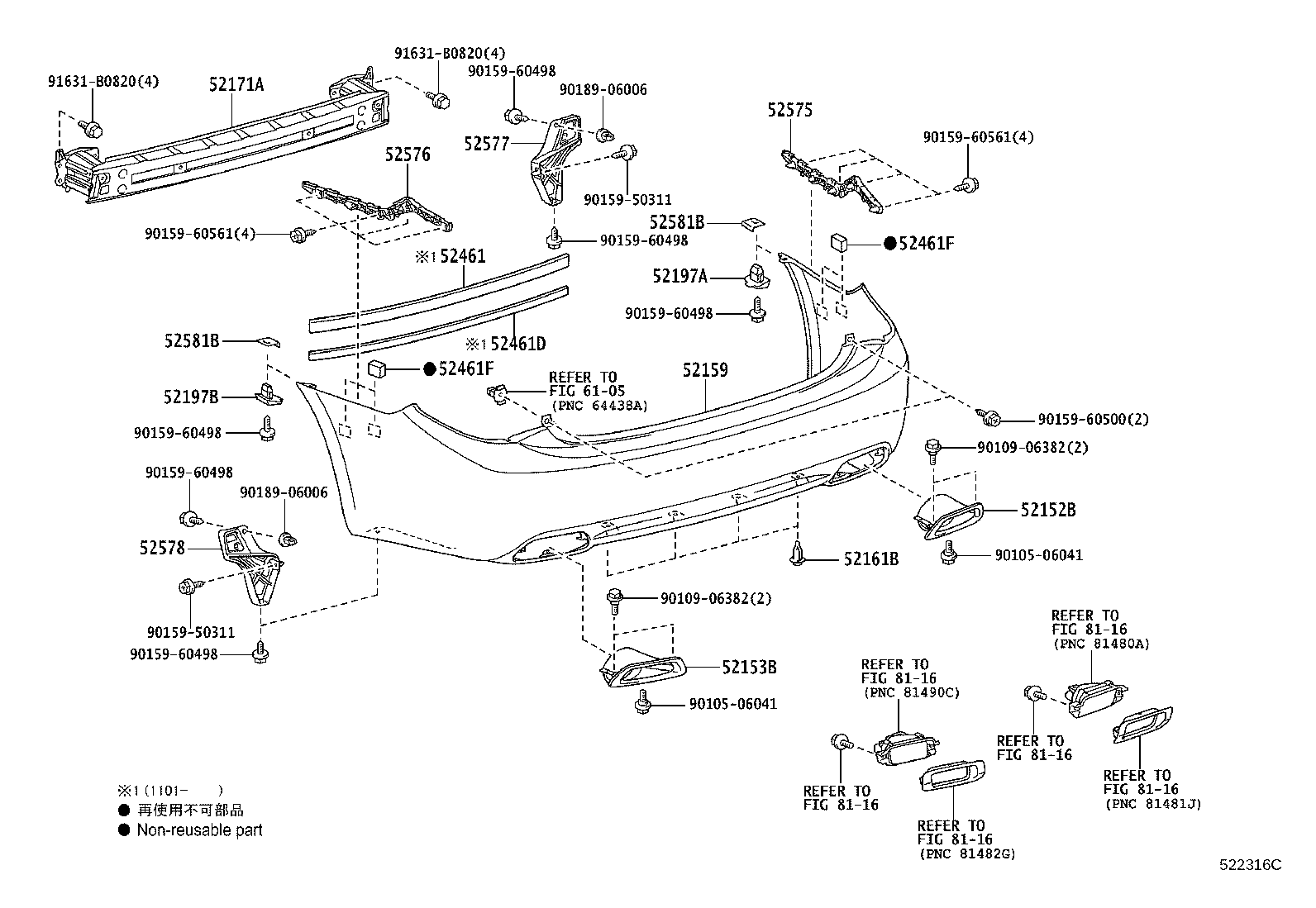

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 52152B — Extension, Rear Bumper, RH | ||||
| 52106-30100 |
Extension, Rear Bumper, RH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 52153B — Extension, Rear Bumper, LH | ||||
| 52107-30120 |
Extension, Rear Bumper, LH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 52159 — Cover, Rear Bumper | ||||
| 52159-30947 |
Cover, Rear Bumper
2010-09 → 2011-01
ended
|
GRS202 | — | |
| 52159-30954 |
Cover, Rear Bumper
2011-01 → 2012-12
ended
|
GRS202 | — | |
| 52161B — Piece, Rear Bumper | ||||
| 52161-16010 |
Piece, Rear Bumper
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 52171A — Reinforcement, Rear Bumper, NO.1 | ||||
| 52023-30340 |
Reinforcement, Rear Bumper, NO.1
2010-09 → 2011-01
ended
|
GRS202 | — | |
| 52023-30341 |
Reinforcement, Rear Bumper, NO.1
2011-01 → 2012-12
ended
|
GRS202 | — | |
| 52197A — Bracket, Rear Bumper Seal, RH | ||||
| 52197-30040 |
Bracket, Rear Bumper Seal, RH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 52197B — Bracket, Rear Bumper Seal, LH | ||||
| 52197-30040 |
Bracket, Rear Bumper Seal, LH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 52461 — Pad, Rear Bumper, Center | ||||
| 52461-30100 |
Pad, Rear Bumper, Center
2011-01 → 2012-12
ended
|
GRS202 | — | |
| 52461D — Cushion, Rear Bumper | ||||
| 52461-30110 |
Cushion, Rear Bumper
2011-01 → 2012-12
ended
|
GRS202 | — | |
| 52461F — Pad, Rear Bumper | ||||
| 52462-30060 |
Pad, Rear Bumper
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 52575 — Retainer, Rear Bumper Side, RH | ||||
| 52575-30190 |
Retainer, Rear Bumper Side, RH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 52576 — Retainer, Rear Bumper Side, LH | ||||
| 52576-30150 |
Retainer, Rear Bumper Side, LH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 52577 — Retainer, Rear Bumper Side, NO.2 RH | ||||
| 52577-30090 |
Retainer, Rear Bumper Side, NO.2 RH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 52578 — Retainer, Rear Bumper Side, NO.2 LH | ||||
| 52578-30090 |
Retainer, Rear Bumper Side, NO.2 LH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 52581B — Protector, Rear Bumper | ||||
| 52581-30060 |
Protector, Rear Bumper
2010-09 → 2012-12
ended
|
GRS202 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
