Toyota Crown
2010-09 → 2012-12 · chassis GRS202 · catalogue 3312C0 · General
Supported model
Data version 2013-01

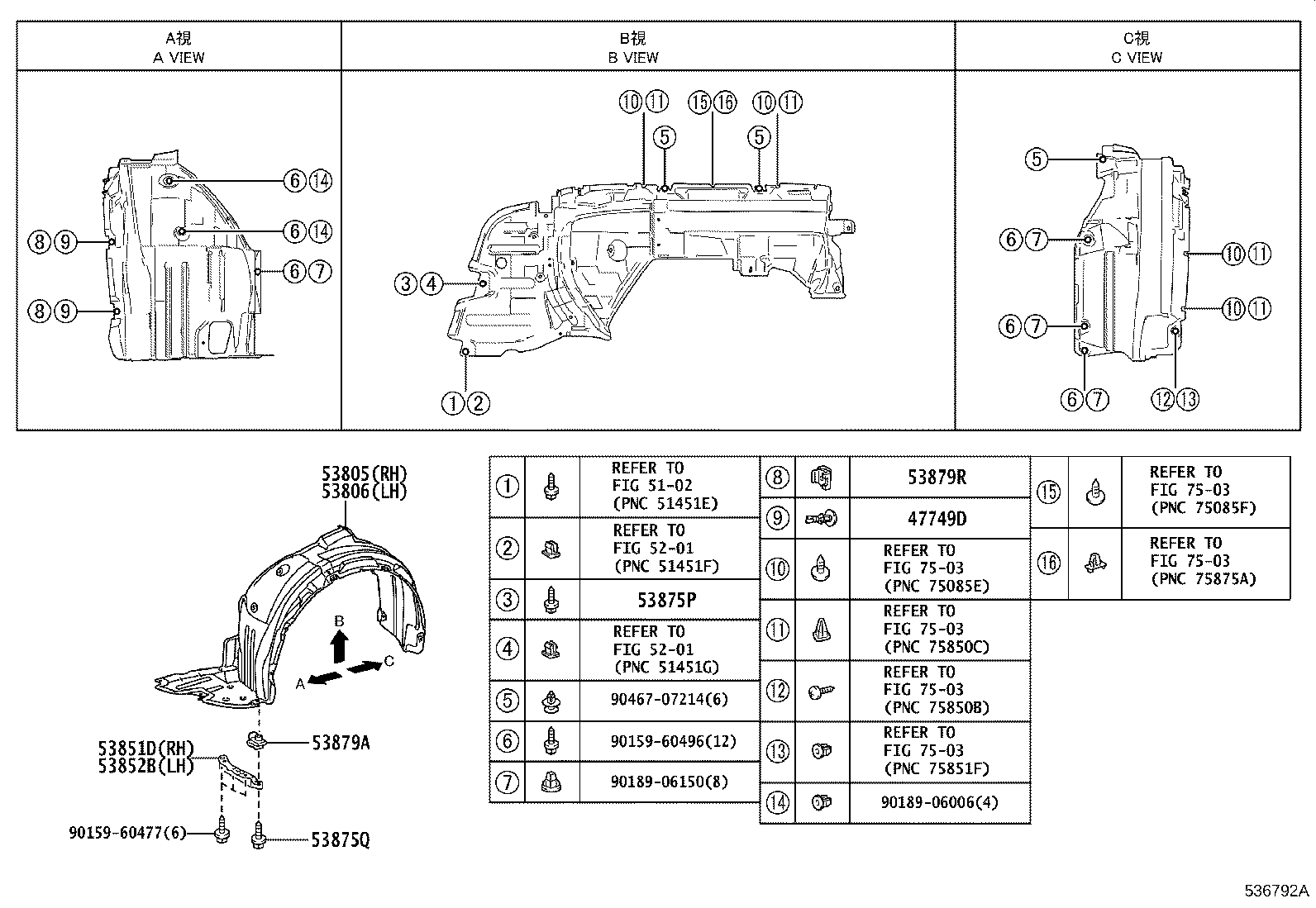

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 47749D — Clip, Pin Hold | ||||
| 47749-50090 |
Clip, Pin Hold
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 53805 — Shield Sub-assy, Front Fender Splash, RH | ||||
| 53805-30170 |
Shield Sub-assy, Front Fender Splash, RH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 53806 — Shield Sub-assy, Front Fender Splash, LH | ||||
| 53806-30170 |
Shield Sub-assy, Front Fender Splash, LH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 53851D — Pad, Front Wheel Opening Extension, RH | ||||
| 53851-30090 |
Pad, Front Wheel Opening Extension, RH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 53852B — Pad, Front Wheel Opening Extension, LH | ||||
| 53852-30090 |
Pad, Front Wheel Opening Extension, LH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 53875P — Screw, NO.1 | ||||
| 90159-60477 |
Screw, NO.1
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 53875Q — Screw, NO.2 | ||||
| 90159-60477 |
Screw, NO.2
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 53879A — Retainer, Front Fender Liner | ||||
| 53879-17020 |
Retainer, Front Fender Liner
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 53879R — Retainer, Front Fender Liner | ||||
| 53879-30040 |
Retainer, Front Fender Liner
2010-09 → 2012-12
ended
|
GRS202 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
