Toyota Crown
2010-09 → 2012-12 · chassis GRS202 · catalogue 3312C0 · General
Supported model
Data version 2013-01

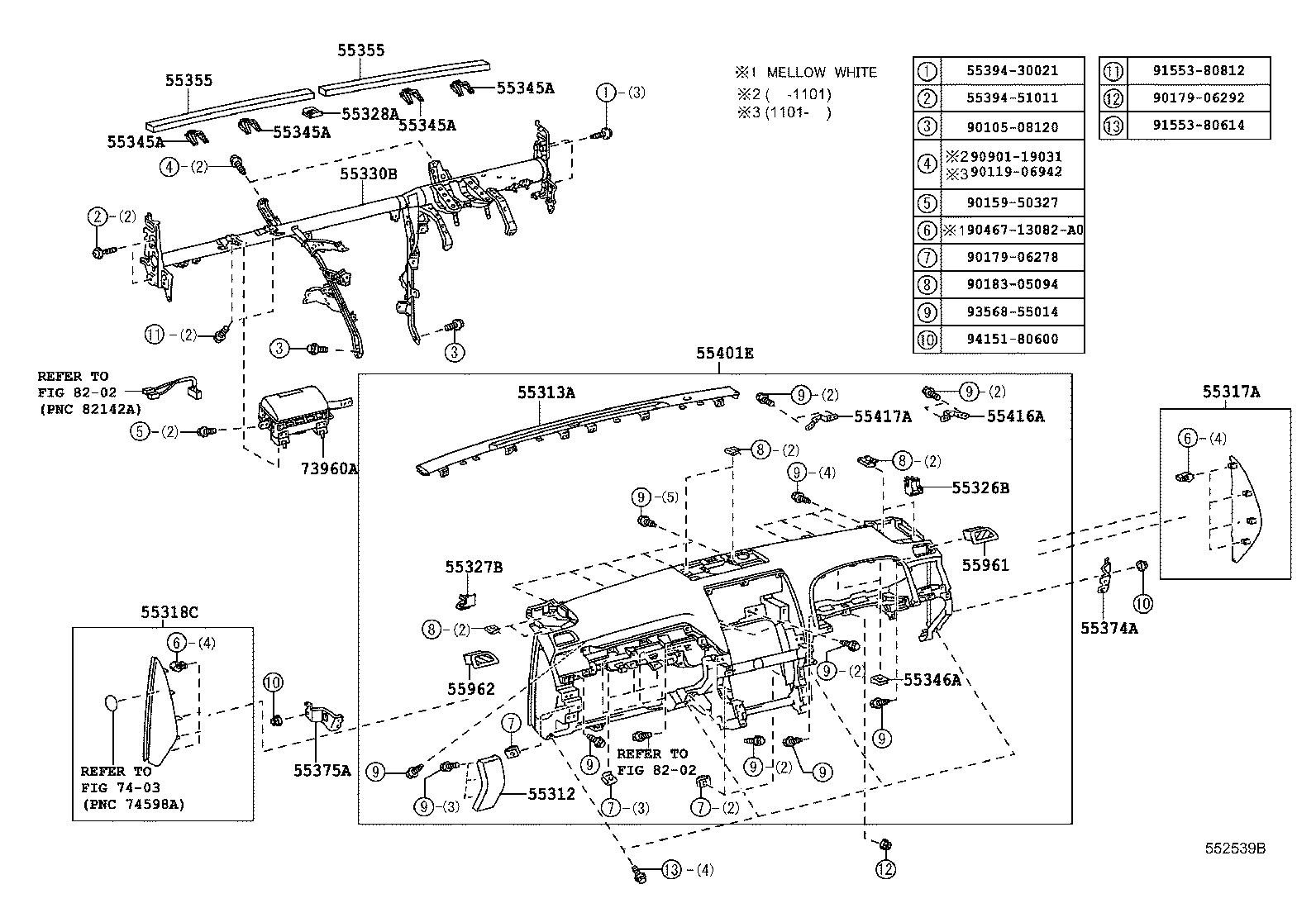

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 55312 — Panel, Instrument, Lower | ||||
| 55312-30120-A0 note |
Panel, Instrument, Lower
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 55312-30120-B0 note |
Panel, Instrument, Lower
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 55313A — Panel, Instrument Main | ||||
| 55313-30080-C0 note |
Panel, Instrument Main
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 55313-30080-E0 note |
Panel, Instrument Main
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 55317A — Panel, Instrument Side, RH | ||||
| 55317-30080-A0 note |
Panel, Instrument Side, RH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 55317-30080-B0 note |
Panel, Instrument Side, RH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 55318C — Panel, Instrument Side, LH | ||||
| 55318-30100-A0 note |
Panel, Instrument Side, LH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 55318-30100-B0 note |
Panel, Instrument Side, LH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 55326B — Stay, Instrument Panel, RH | ||||
| 55326-30130 |
Stay, Instrument Panel, RH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 55327B — Stay, Instrument Panel, LH | ||||
| 55327-30120 |
Stay, Instrument Panel, LH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 55328A — Stay, Instrument Panel, NO.3 | ||||
| 55328-22060 |
Stay, Instrument Panel, NO.3
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 55330B — Reinforcement Assy, Instrument Panel | ||||
| 55330-30370 |
Reinforcement Assy, Instrument Panel
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 55345A — Clip, Instrument Panel, NO.1 | ||||
| 55345-30060 |
Clip, Instrument Panel, NO.1
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 55346A — Clip, Instrument Panel, NO.2 | ||||
| 55345-12060 |
Clip, Instrument Panel, NO.2
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 55355 — Cushion, Instrument Panel, NO.1 | ||||
| 55355-30060 |
Cushion, Instrument Panel, NO.1
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 55374A — Bracket, Instrument Panel Lower Mounting, RH | ||||
| 55374-30270 |
Bracket, Instrument Panel Lower Mounting, RH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 55375A — Bracket, Instrument Panel Lower Mounting, LH | ||||
| 55375-30170 |
Bracket, Instrument Panel Lower Mounting, LH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 55401E — Pad Sub-assy, Instrument Panel Safety | ||||
| 55400-30082-C0 note |
Pad Sub-assy, Instrument Panel Safety
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 55400-30082-E0 note |
Pad Sub-assy, Instrument Panel Safety
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 55416A — Retainer, Meter Hood, NO.1 | ||||
| 55416-30190 |
Retainer, Meter Hood, NO.1
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 55417A — Retainer, Meter Hood, NO.2 | ||||
| 55417-30080 |
Retainer, Meter Hood, NO.2
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 55961 — Nozzle, Side Defroster, NO.1 | ||||
| 55961-30150-C0 note |
Nozzle, Side Defroster, NO.1
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 55961-30150-E0 note |
Nozzle, Side Defroster, NO.1
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 55962 — Nozzle, Side Defroster, NO.2 | ||||
| 55962-30130-C0 note |
Nozzle, Side Defroster, NO.2
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 55962-30130-E0 note |
Nozzle, Side Defroster, NO.2
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 73960A — Airbag Assy, Instrument Panel Passenger W/O Door | ||||
| 73960-30090 |
Airbag Assy, Instrument Panel Passenger W/O Door
2010-09 → 2012-12
ended
|
GRS202 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
