Toyota Crown
2010-09 → 2012-12 · chassis GRS202 · catalogue 3312C0 · General
Supported model
Data version 2013-01

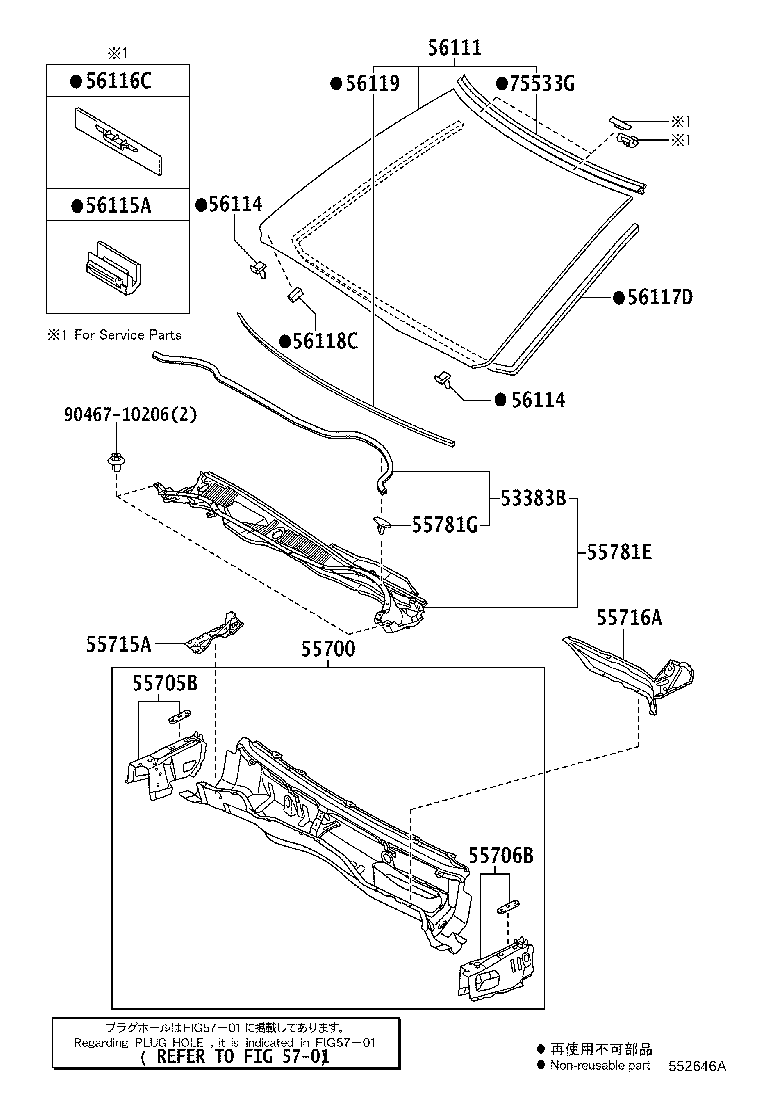

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 53383B — Seal, Hood TO Cowl Top | ||||
| 53383-30240 |
Seal, Hood TO Cowl Top
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 55700 — Panel Assy, Front | ||||
| 55700-30A10 |
Panel Assy, Front
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 55705B — Panel Sub-assy, Cowl Top Side, RH | ||||
| 55705-30902 |
Panel Sub-assy, Cowl Top Side, RH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 55706B — Panel Sub-assy, Cowl Top Side, LH | ||||
| 55706-30902 |
Panel Sub-assy, Cowl Top Side, LH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 55715A — Brace, Cowl Top TO Apron, RH | ||||
| 55715-30140 |
Brace, Cowl Top TO Apron, RH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 55716A — Brace, Cowl Top TO Apron, LH | ||||
| 55716-30140 |
Brace, Cowl Top TO Apron, LH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 55781E — Louver Sub-assy, Cowl Top Ventilator | ||||
| 55708-30141 |
Louver Sub-assy, Cowl Top Ventilator
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 55781G — Clip, Cowl Top Ventilator Louver | ||||
| 90467-08108 |
Clip, Cowl Top Ventilator Louver
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 56111 — Glass, Windshield | ||||
| 56101-30919 note |
Glass, Windshield
2010-09 → 2011-10
ended
|
GRS202 | — | |
| 56101-30N50 note |
Glass, Windshield
2011-10 → 2012-12
ended
|
GRS202 | — | |
| 56114 — Retainer, Windshield Glass | ||||
| 56114-22050 |
Retainer, Windshield Glass
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 56115A — Stopper, Windshield Glass, NO.1 | ||||
| 56115-30110 |
Stopper, Windshield Glass, NO.1
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 56116C — Stopper, Windshield Glass, NO.2 | ||||
| 56116-22050 |
Stopper, Windshield Glass, NO.2
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 56117D — Dam, Windshield Glass Adhesive | ||||
| 56117-30360 note |
Dam, Windshield Glass Adhesive
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 56118C — Retainer, Windshield Glass, NO.2 | ||||
| 56118-30100 note |
Retainer, Windshield Glass, NO.2
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 56119 — Seal, Windshield Glass | ||||
| 56119-30010 |
Seal, Windshield Glass
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 75533G — Moulding, Windshield, Outside | ||||
| 75531-30380 |
Moulding, Windshield, Outside
2010-09 → 2012-12
ended
|
GRS202 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
