Toyota Crown
2010-09 → 2012-12 · chassis GRS202 · catalogue 3312C0 · General
Supported model
Data version 2013-01

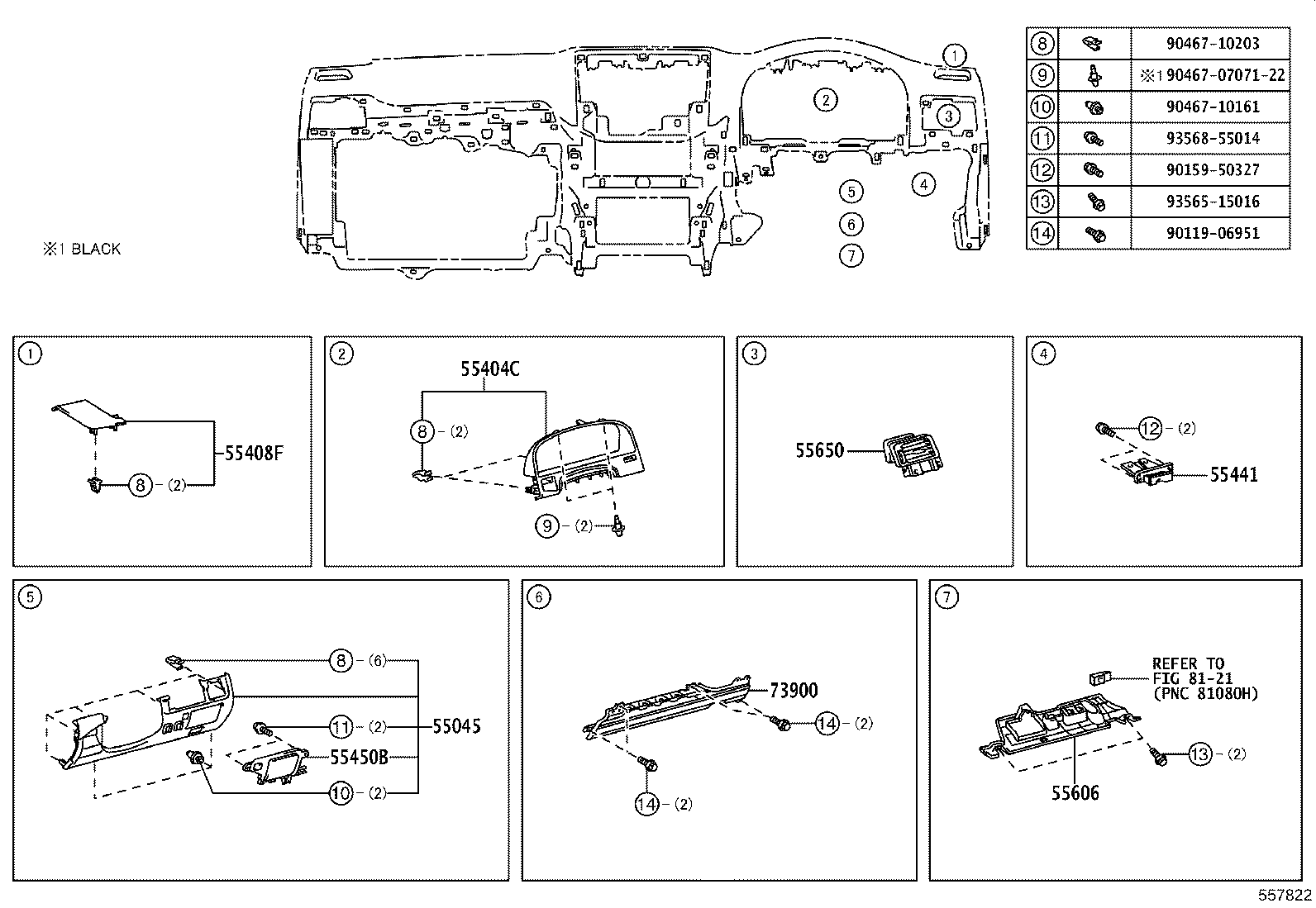

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 55045 — Panel Sub-assy, Instrument Panel Finish, Lower | ||||
| 55045-30210-A0 note |
Panel Sub-assy, Instrument Panel Finish, Lower
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 55045-30210-B0 note |
Panel Sub-assy, Instrument Panel Finish, Lower
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 55404C — Panel Sub-assy, Instrument Cluster Finish, NO.2 | ||||
| 55404-30A50 |
Panel Sub-assy, Instrument Cluster Finish, NO.2
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 55408F — Panel Sub-assy, Instrument Panel Speaker, NO.1 | ||||
| 55408-30170-C0 note |
Panel Sub-assy, Instrument Panel Speaker, NO.1
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 55408-30170-E0 note |
Panel Sub-assy, Instrument Panel Speaker, NO.1
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 55441 — Box, Instrument Panel | ||||
| 55441-22120-C0 note |
Box, Instrument Panel
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 55450B — Box Assy, Coin | ||||
| 55450-30050-A0 note |
Box Assy, Coin
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 55450-30050-B0 note |
Box Assy, Coin
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 55606 — Cover Sub-assy, Instrument Panel Under, NO.1 | ||||
| 55641-30240 |
Cover Sub-assy, Instrument Panel Under, NO.1
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 55650 — Register Assy, Instrument Panel, NO.1 | ||||
| 55650-30400-A2 note |
Register Assy, Instrument Panel, NO.1
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 55650-30400-B4 note |
Register Assy, Instrument Panel, NO.1
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 73900 — Airbag Assy, Instrument Panel, Lower NO.1 | ||||
| 73900-30040-A0 note |
Airbag Assy, Instrument Panel, Lower NO.1
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 73900-30040-B0 note |
Airbag Assy, Instrument Panel, Lower NO.1
2010-09 → 2012-12
ended
|
GRS202 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
