Toyota Crown
2010-09 → 2012-12 · chassis GRS202 · catalogue 3312C0 · General
Supported model
Data version 2013-01

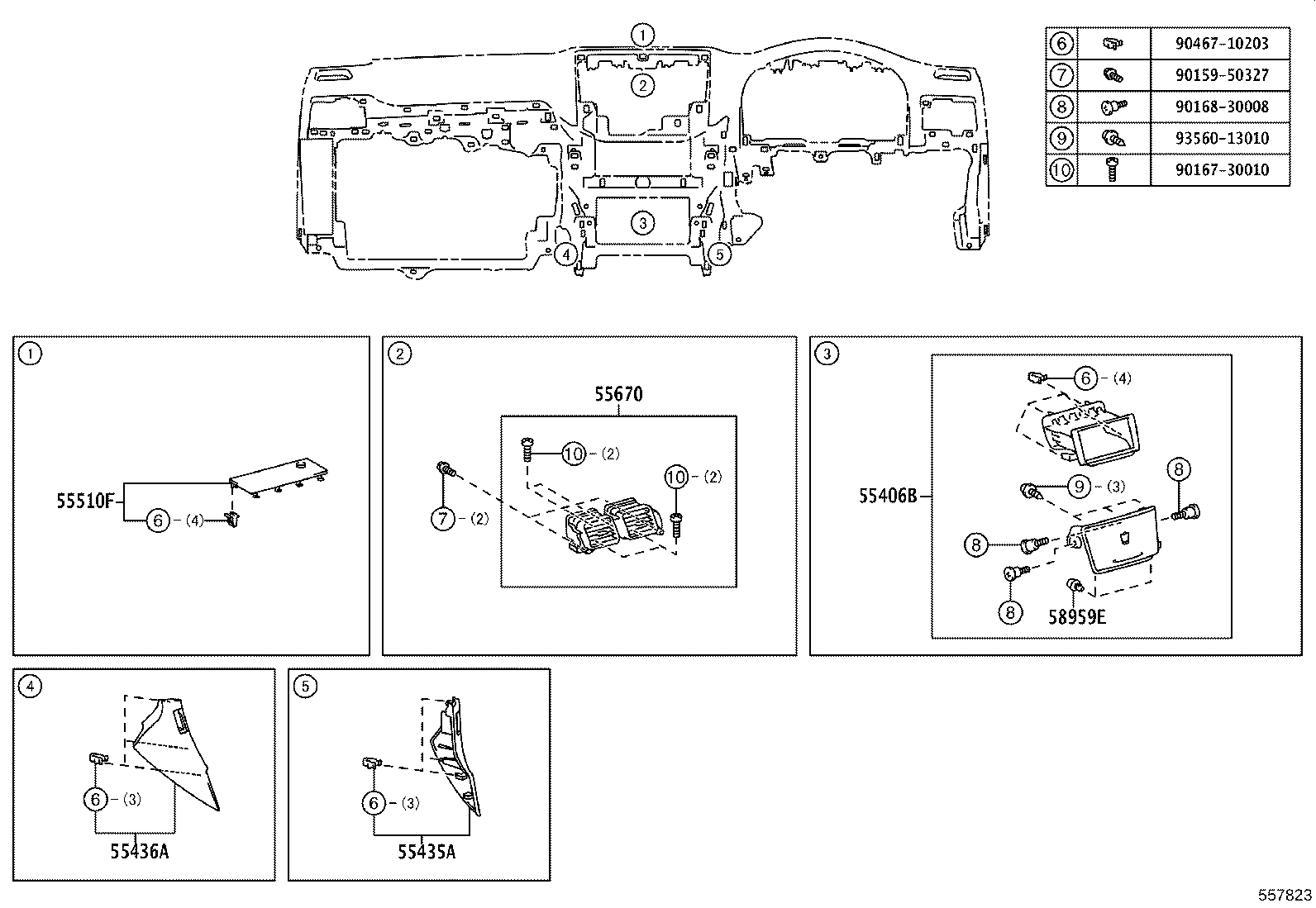

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 55406B — Panel Sub-assy, Instrument Cluster Finish, Lower Center | ||||
| 55406-30220-E0 note |
Panel Sub-assy, Instrument Cluster Finish, Lower Center
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 55435A — Panel, Instrument Panel Finish, End RH | ||||
| 55435-30250-A0 note |
Panel, Instrument Panel Finish, End RH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 55435-30250-E2 note |
Panel, Instrument Panel Finish, End RH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 55436A — Panel, Instrument Panel Finish, End LH | ||||
| 55436-30160-A0 note |
Panel, Instrument Panel Finish, End LH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 55436-30160-E2 note |
Panel, Instrument Panel Finish, End LH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 55510F — Cover Assy, Speaker Opening, NO.1 | ||||
| 55510-30150-C0 note |
Cover Assy, Speaker Opening, NO.1
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 55510-30150-E0 note |
Cover Assy, Speaker Opening, NO.1
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 55670 — Register Assy, Instrument Panel, NO.3 | ||||
| 55670-30501 |
Register Assy, Instrument Panel, NO.3
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 58959E — Cushion, Console Compartment Door | ||||
| 58959-60060 |
Cushion, Console Compartment Door
2010-09 → 2012-12
ended
|
GRS202 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
