Toyota Crown

2010-09 → 2012-12 · chassis GRS202 · catalogue 3312C0 · General

Supported model Data version 2013-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

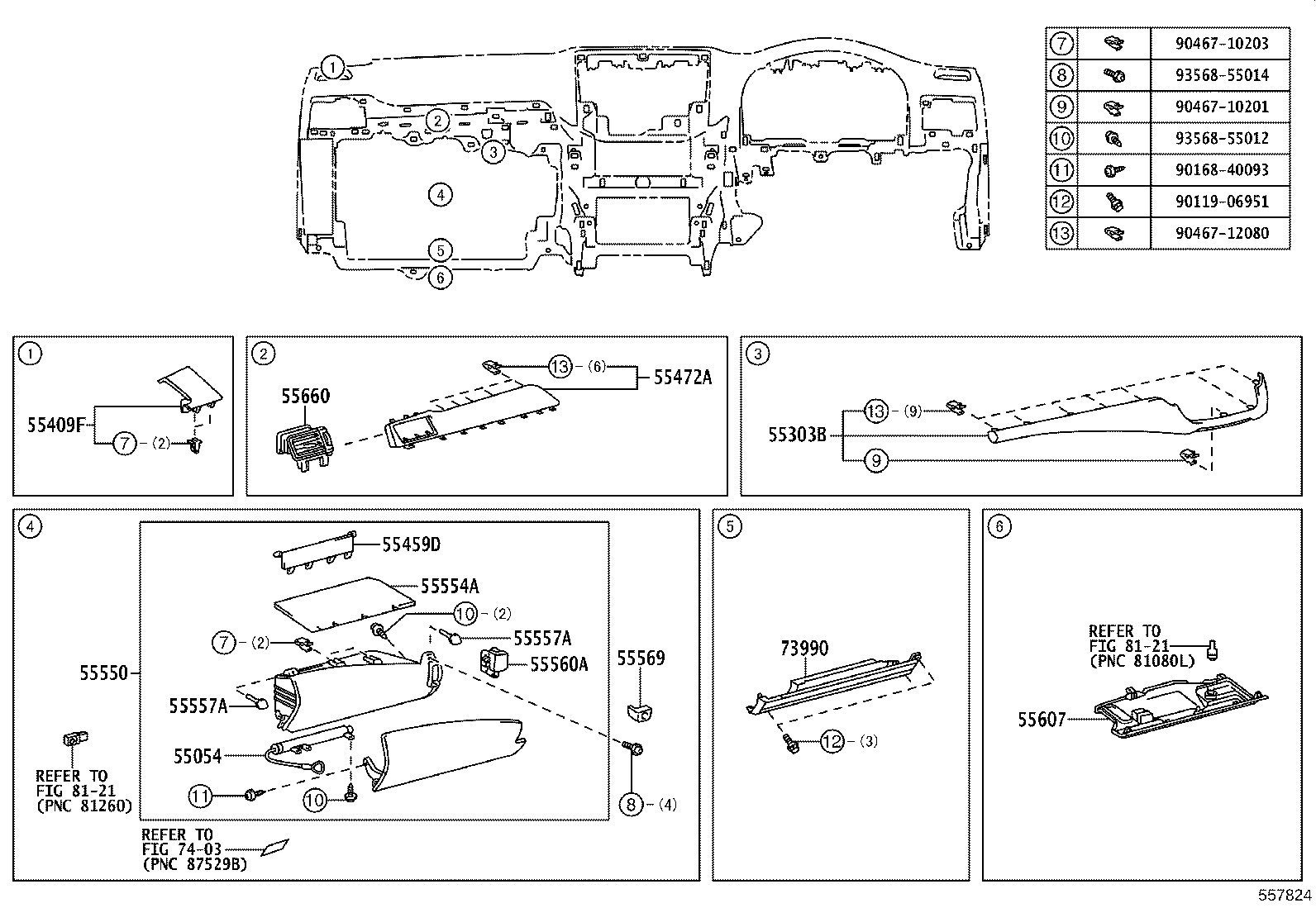

Exploded illustration 557824 9046710203 — not listed in this catalogue 9356855014 — not listed in this catalogue 9046710201 — not listed in this catalogue 9356855012 — not listed in this catalogue 9016840093 — not listed in this catalogue 9011906951 — not listed in this catalogue 9046712080 — not listed in this catalogue 55409F — PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2 (2 parts) 55660 — REGISTER ASSY, INSTRUMENT PANEL, NO.2 (1 parts) 55472A — MOULDING, INSTRUMENT CLUSTER, NO.2 (1 parts) 55303B — PANEL SUB-ASSY, INSTRUMENT, LOWER (2 parts) 55550 — DOOR ASSY, GLOVE COMPARTMENT (2 parts) 55459D — COVER, INSTRUMENT, LOWER LH (1 parts) 55554A — FILLER, GLOVE COMPARTMENT DOOR PAD (1 parts) 55557A — CUSHION, GLOVE COMPARTMENT DOOR CHECK (1 parts) 55557A — CUSHION, GLOVE COMPARTMENT DOOR CHECK (1 parts) 55054 — STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR (1 parts) 55560A — LOCK ASSY, GLOVE COMPARTMENT DOOR (2 parts) 55569 — COVER, GLOVE COMPARTMENT DOOR LOCK (2 parts) 8121 — not listed in this catalogue 7403 — not listed in this catalogue 73990 — AIRBAG ASSY, INSTRUMENT PANEL, LOWER NO.2 (2 parts) 55607 — COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 (1 parts) 8121 — not listed in this catalogue
557824 · 14 callouts, 10 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
19 parts on this figure
Part number Description Fitment Price
55054 — Stopper Sub-assy, Glove Compartment Door
55054-30050 Stopper Sub-assy, Glove Compartment Door
2010-09 → 2012-12 ended
GRS202 —
55303B — Panel Sub-assy, Instrument, Lower
55303-30200-A1 note Panel Sub-assy, Instrument, Lower
2010-09 → 2012-12 ended
GRS202 —
55303-30200-B2 note Panel Sub-assy, Instrument, Lower
2010-09 → 2012-12 ended
GRS202 —
55409F — Panel Sub-assy, Instrument Panel Speaker, NO.2
55409-30240-C0 note Panel Sub-assy, Instrument Panel Speaker, NO.2
2010-09 → 2012-12 ended
GRS202 —
55409-30240-E0 note Panel Sub-assy, Instrument Panel Speaker, NO.2
2010-09 → 2012-12 ended
GRS202 —
55459D — Cover, Instrument, Lower LH
55459-30060 Cover, Instrument, Lower LH
2010-09 → 2012-12 ended
GRS202 —
55472A — Moulding, Instrument Cluster, NO.2
55472-30130-E0 note Moulding, Instrument Cluster, NO.2
2010-09 → 2012-12 ended
GRS202 —
55550 — Door Assy, Glove Compartment
55550-30450-A0 note Door Assy, Glove Compartment
2010-09 → 2012-12 ended
GRS202 —
55550-30450-B0 note Door Assy, Glove Compartment
2010-09 → 2012-12 ended
GRS202 —
55554A — Filler, Glove Compartment Door Pad
55554-30120 Filler, Glove Compartment Door Pad
2010-09 → 2012-12 ended
GRS202 —
55557A — Cushion, Glove Compartment Door Check
90541-04002 Cushion, Glove Compartment Door Check
2010-09 → 2012-12 ended
GRS202 —
55560A — Lock Assy, Glove Compartment Door
55560-30070-A0 note Lock Assy, Glove Compartment Door
2010-09 → 2012-12 ended
GRS202 —
55560-30070-B0 note Lock Assy, Glove Compartment Door
2010-09 → 2012-12 ended
GRS202 —
55569 — Cover, Glove Compartment Door Lock
55569-30050-A0 note Cover, Glove Compartment Door Lock
2010-09 → 2012-12 ended
GRS202 —
55569-30050-B0 note Cover, Glove Compartment Door Lock
2010-09 → 2012-12 ended
GRS202 —
55607 — Cover Sub-assy, Instrument Panel Under, NO.2
55607-30330 Cover Sub-assy, Instrument Panel Under, NO.2
2010-09 → 2012-12 ended
GRS202 —
55660 — Register Assy, Instrument Panel, NO.2
55660-30450 Register Assy, Instrument Panel, NO.2
2010-09 → 2012-12 ended
GRS202 —
73990 — Airbag Assy, Instrument Panel, Lower NO.2
73990-30040-A0 note Airbag Assy, Instrument Panel, Lower NO.2
2010-09 → 2012-12 ended
GRS202 —
73990-30040-B0 note Airbag Assy, Instrument Panel, Lower NO.2
2010-09 → 2012-12 ended
GRS202 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
