Toyota Crown

2010-09 → 2012-12 · chassis GRS202 · catalogue 3312C0 · General

Supported model Data version 2013-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

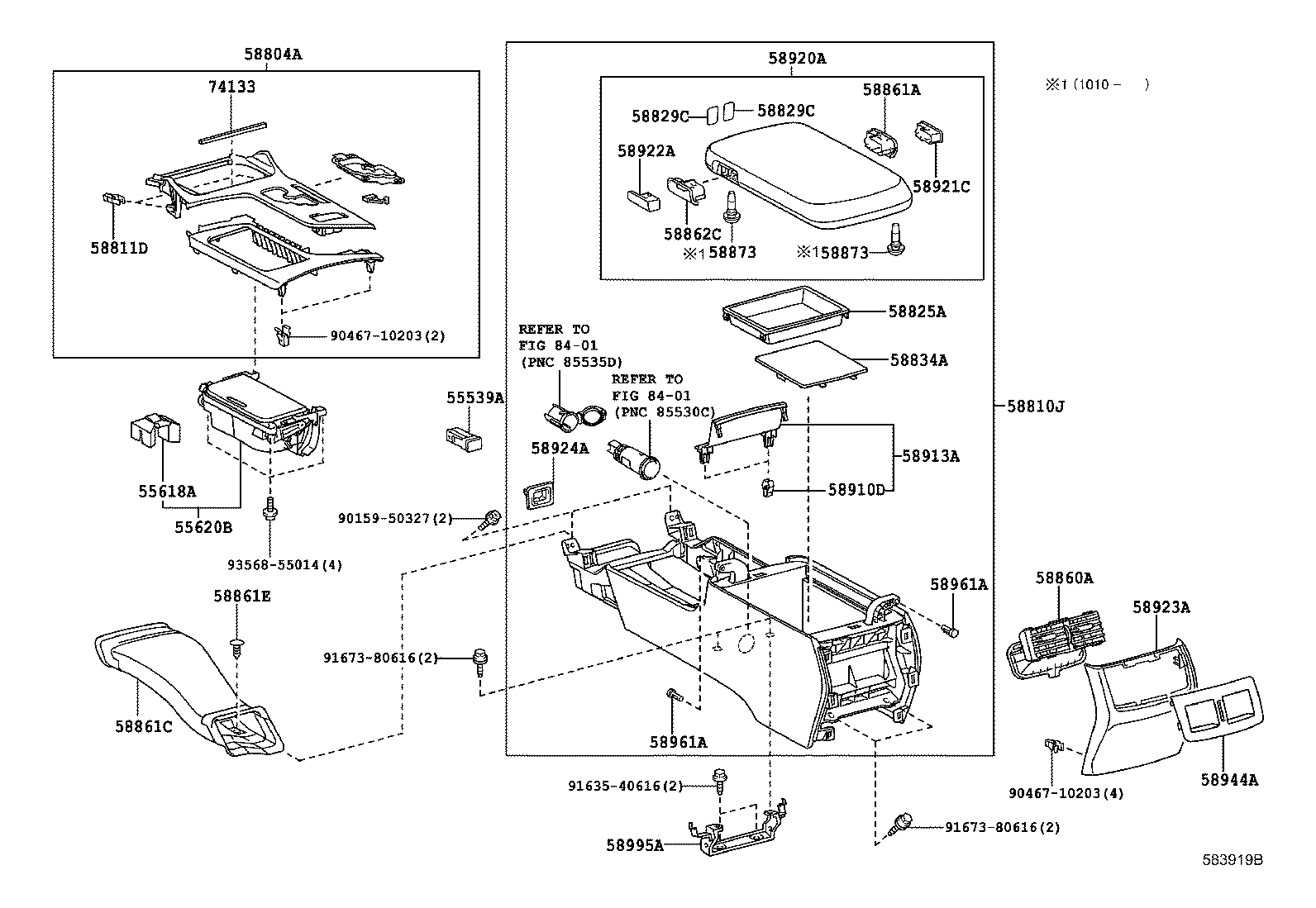

Exploded illustration 583919B 55618A — HOLDER, CONSOLE BOX CUP (1 parts) 55620B — HOLDER, INSTRUMENT PANEL CUP (1 parts) 58804A — PANEL SUB-ASSY, CONSOLE, UPPER (1 parts) 58810J — BOX ASSY, CONSOLE (3 parts) 58811D — CLIP(FOR CONSOLE BOX) (1 parts) 58825A — POCKET, CONSOLE BOX (1 parts) 58829C — STOPPER, CONSOLE BOX POCKET (2 parts) 58829C — STOPPER, CONSOLE BOX POCKET (2 parts) 58834A — COVER, CONSOLE, LOWER (1 parts) 58860A — REGISTER ASSY, CONSOLE BOX (1 parts) 58861A — SUPPORT, CONSOLE BOX, NO.1 (2 parts) 58861C — DUCT, CONSOLE BOX, NO.1 (1 parts) 58862C — SUPPORT, CONSOLE BOX, NO.2 (2 parts) 58910D — CLIP(FOR CONSOLE BOX) (1 parts) 58913A — PANEL, BOX, NO.3 (2 parts) 58920A — ARMREST ASSY, REAR CONSOLE (3 parts) 58921C — PLATE, BOX, UPPER NO.1 (1 parts) 58922A — PLATE, BOX, UPPER NO.2 (1 parts) 58923A — PANEL, CONSOLE REAR END (2 parts) 58944A — COVER, CONSOLE, REAR (1 parts) 58961A — HINGE, CONSOLE COMPARTMENT DOOR MALE (1 parts) 58961A — HINGE, CONSOLE COMPARTMENT DOOR MALE (1 parts) 58995A — BRACKET, CONSOLE BOX MOUNTING, NO.1 (1 parts) 58861E — CLIP, CONSOLE BOX DUCT (1 parts) 74133 — SEAL, FRONT ASH RECEPTACLE (1 parts) 9015950327 — not listed in this catalogue 9046710203 — not listed in this catalogue 9046710203 — not listed in this catalogue 9163540616 — not listed in this catalogue 9167380616 — not listed in this catalogue 9167380616 — not listed in this catalogue 9356855014 — not listed in this catalogue 55539A — COVER, SPARE SWITCH HOLE (1 parts) 58924A — PANEL, CONSOLE REAR END, NO.2 (1 parts) 58873 — CUSHION, CONSOLE BOX, NO.3 (1 parts) 58873 — CUSHION, CONSOLE BOX, NO.3 (1 parts) 8401 — not listed in this catalogue 8401 — not listed in this catalogue
583919B · 29 callouts, 9 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
35 parts on this figure
Part number Description Fitment Price
55539A — Cover, Spare Switch Hole
55539-22190 Cover, Spare Switch Hole
2010-09 → 2012-12 ended
GRS202 —
55618A — Holder, Console Box Cup
55618-30040 Holder, Console Box Cup
2010-09 → 2012-12 ended
GRS202 —
55620B — Holder, Instrument Panel Cup
55620-30240-E0 note Holder, Instrument Panel Cup
2010-09 → 2012-12 ended
GRS202 —
58804A — Panel Sub-assy, Console, Upper
58804-30560-E0 note Panel Sub-assy, Console, Upper
2010-09 → 2012-12 ended
GRS202 —
58810J — Box Assy, Console
58810-30C60-A1 note Box Assy, Console
2010-09 → 2011-01 ended
GRS202 —
58810-30C60-B1 note Box Assy, Console
2010-09 → 2011-01 ended
GRS202 —
58810-30C61-A1 note Box Assy, Console
2011-02 → 2012-12 ended
GRS202 —
58811D — Clip(FOR CONSOLE BOX)
90467-13082-A0 note Clip(FOR CONSOLE BOX)
2010-09 → 2012-12 ended
GRS202 —
58825A — Pocket, Console Box
58825-30150 Pocket, Console Box
2010-09 → 2012-12 ended
GRS202 —
58829C — Stopper, Console Box Pocket
58829-30060-A0 note Stopper, Console Box Pocket
2010-09 → 2012-12 ended
GRS202 —
58829-30060-B0 note Stopper, Console Box Pocket
2010-09 → 2012-12 ended
GRS202 —
58834A — Cover, Console, Lower
58834-30090 Cover, Console, Lower
2010-09 → 2012-12 ended
GRS202 —
58860A — Register Assy, Console Box
58860-30050 Register Assy, Console Box
2010-09 → 2012-12 ended
GRS202 —
58861A — Support, Console Box, NO.1
58865-30120-A0 note Support, Console Box, NO.1
2010-09 → 2012-12 ended
GRS202 —
58865-30120-B0 note Support, Console Box, NO.1
2010-09 → 2011-02 ended
GRS202 —
58861C — Duct, Console Box, NO.1
58861-30110 Duct, Console Box, NO.1
2010-09 → 2012-12 ended
GRS202 —
58861E — Clip, Console Box Duct
90467-08186-C0 note Clip, Console Box Duct
2010-09 → 2012-12 ended
GRS202 —
58862C — Support, Console Box, NO.2
58866-30060-A0 note Support, Console Box, NO.2
2010-09 → 2012-12 ended
GRS202 —
58866-30060-B0 note Support, Console Box, NO.2
2010-09 → 2011-02 ended
GRS202 —
58873 — Cushion, Console Box, NO.3
58873-30040 Cushion, Console Box, NO.3
2010-10 → 2012-12 ended
GRS202 —
58910D — Clip(FOR CONSOLE BOX)
90467-13082-A0 note Clip(FOR CONSOLE BOX)
2010-09 → 2012-12 ended
GRS202 —
58913A — Panel, Box, NO.3
58913-30060-A0 note Panel, Box, NO.3
2010-09 → 2012-12 ended
GRS202 —
58913-30060-B0 note Panel, Box, NO.3
2010-09 → 2011-02 ended
GRS202 —
58920A — Armrest Assy, Rear Console
58920-30221-A2 note Armrest Assy, Rear Console
2010-09 → 2011-01 ended
GRS202 —
58920-30221-B2 note Armrest Assy, Rear Console
2010-09 → 2011-01 ended
GRS202 —
58920-30222-A2 note Armrest Assy, Rear Console
2011-02 → 2012-12 ended
GRS202 —
58921C — Plate, Box, Upper NO.1
58921-30060 Plate, Box, Upper NO.1
2010-09 → 2012-12 ended
GRS202 —
58922A — Plate, Box, Upper NO.2
58922-30040 Plate, Box, Upper NO.2
2010-09 → 2012-12 ended
GRS202 —
58923A — Panel, Console Rear End
58923-30160-A0 note Panel, Console Rear End
2010-09 → 2012-12 ended
GRS202 —
58923-30160-B0 note Panel, Console Rear End
2010-09 → 2012-12 ended
GRS202 —
58924A — Panel, Console Rear End, NO.2
58924-30160 Panel, Console Rear End, NO.2
2010-09 → 2012-12 ended
GRS202 —
58944A — Cover, Console, Rear
58944-30090-E0 note Cover, Console, Rear
2010-09 → 2012-12 ended
GRS202 —
58961A — Hinge, Console Compartment Door Male
58961-30110 Hinge, Console Compartment Door Male
2010-09 → 2012-12 ended
GRS202 —
58995A — Bracket, Console Box Mounting, NO.1
58995-30200 Bracket, Console Box Mounting, NO.1
2010-09 → 2012-12 ended
GRS202 —
74133 — Seal, Front Ash Receptacle
74133-30140 Seal, Front Ash Receptacle
2010-09 → 2012-12 ended
GRS202 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
