Toyota Crown
2010-09 → 2012-12 · chassis GRS202 · catalogue 3312C0 · General
Supported model
Data version 2013-01

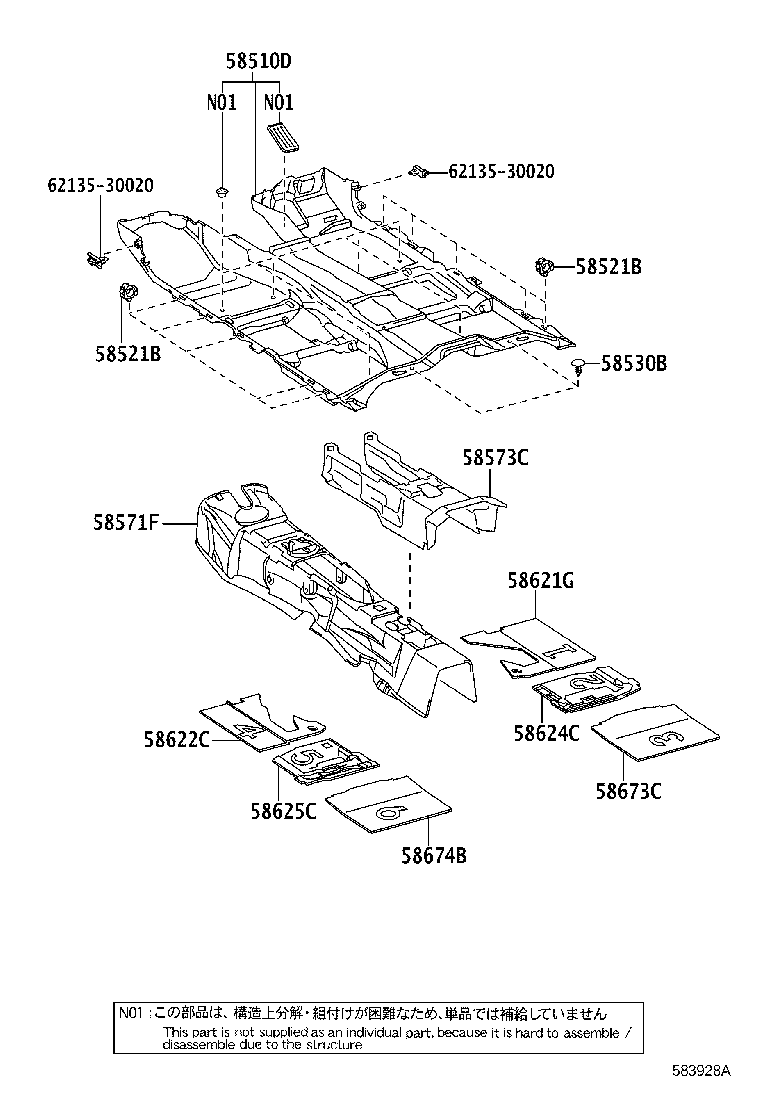

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 58510D — Carpet Assy, Floor, Front | ||||
| 58510-30A70-A1 note |
Carpet Assy, Floor, Front
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 58510-30A70-B1 note |
Carpet Assy, Floor, Front
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 58521B — Hook, Floor Carpet | ||||
| 58521-30140 |
Hook, Floor Carpet
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 58530B — Clip(FOR FRONT FLOOR CARPET) | ||||
| 90467-05164-B8 note |
Clip(FOR FRONT FLOOR CARPET)
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 58571F — Pad, Front Floor, Front | ||||
| 58571-30040 |
Pad, Front Floor, Front
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 58573C — Pad, Front Floor Center | ||||
| 58573-30090 |
Pad, Front Floor Center
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 58621G — Pad, Front Floor Silencer, RH | ||||
| 58621-30150 |
Pad, Front Floor Silencer, RH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 58622C — Pad, Front Floor Silencer, LH | ||||
| 58622-30160 |
Pad, Front Floor Silencer, LH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 58624C — Pad, Center Floor Silencer, RH | ||||
| 58624-30130 |
Pad, Center Floor Silencer, RH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 58625C — Pad, Center Floor Silencer, LH | ||||
| 58625-30080 |
Pad, Center Floor Silencer, LH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 58673C — Pad, Rear Floor Silencer, NO.1 | ||||
| 58673-30020 |
Pad, Rear Floor Silencer, NO.1
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 58674B — Pad, Rear Floor Silencer, NO.2 | ||||
| 58674-30020 |
Pad, Rear Floor Silencer, NO.2
2010-09 → 2012-12
ended
|
GRS202 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
