Toyota Crown
2010-09 → 2012-12 · chassis GRS202 · catalogue 3312C0 · General
Supported model
Data version 2013-01

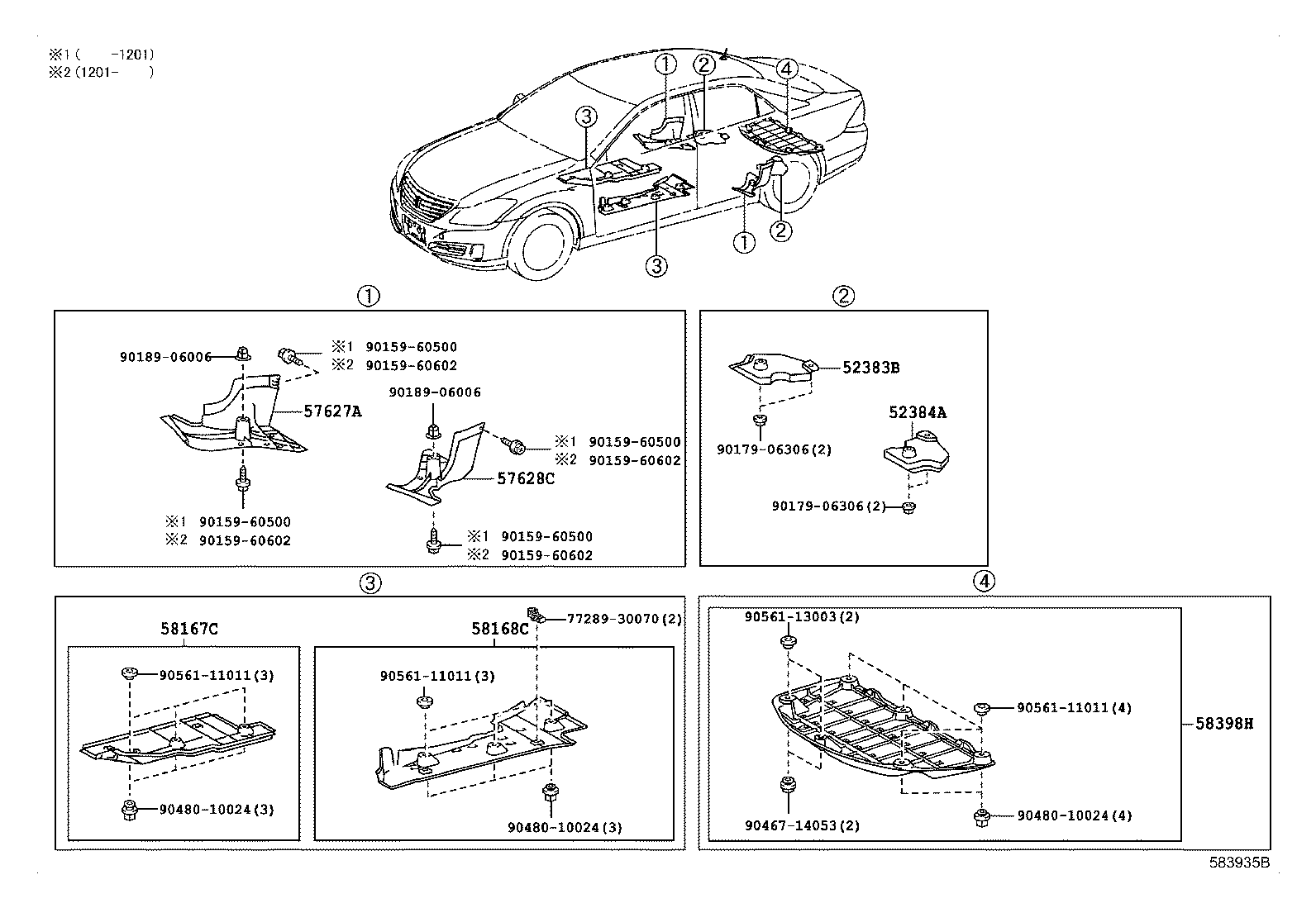

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 52383B — Protector, Differential Support, NO.1 | ||||
| 52383-30011 |
Protector, Differential Support, NO.1
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 52384A — Protector, Differential Support, NO.2 | ||||
| 52384-30011 |
Protector, Differential Support, NO.2
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 57627A — Cover, Rear Floor Side Member, RH | ||||
| 57627-30031 |
Cover, Rear Floor Side Member, RH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 57628C — Cover, Rear Floor Side Member, LH | ||||
| 57628-30031 |
Cover, Rear Floor Side Member, LH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 58167C — Cover, Front Floor, Center RH | ||||
| 58167-30052 |
Cover, Front Floor, Center RH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 58168C — Cover, Front Floor, Center LH | ||||
| 58168-30052 |
Cover, Front Floor, Center LH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 58398H — Cover, Floor Under, NO.1 | ||||
| 58390-30011 |
Cover, Floor Under, NO.1
2010-09 → 2012-12
ended
|
GRS202 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
