Toyota Crown
2010-09 → 2012-12 · chassis GRS202 · catalogue 3312C0 · General
Supported model
Data version 2013-01

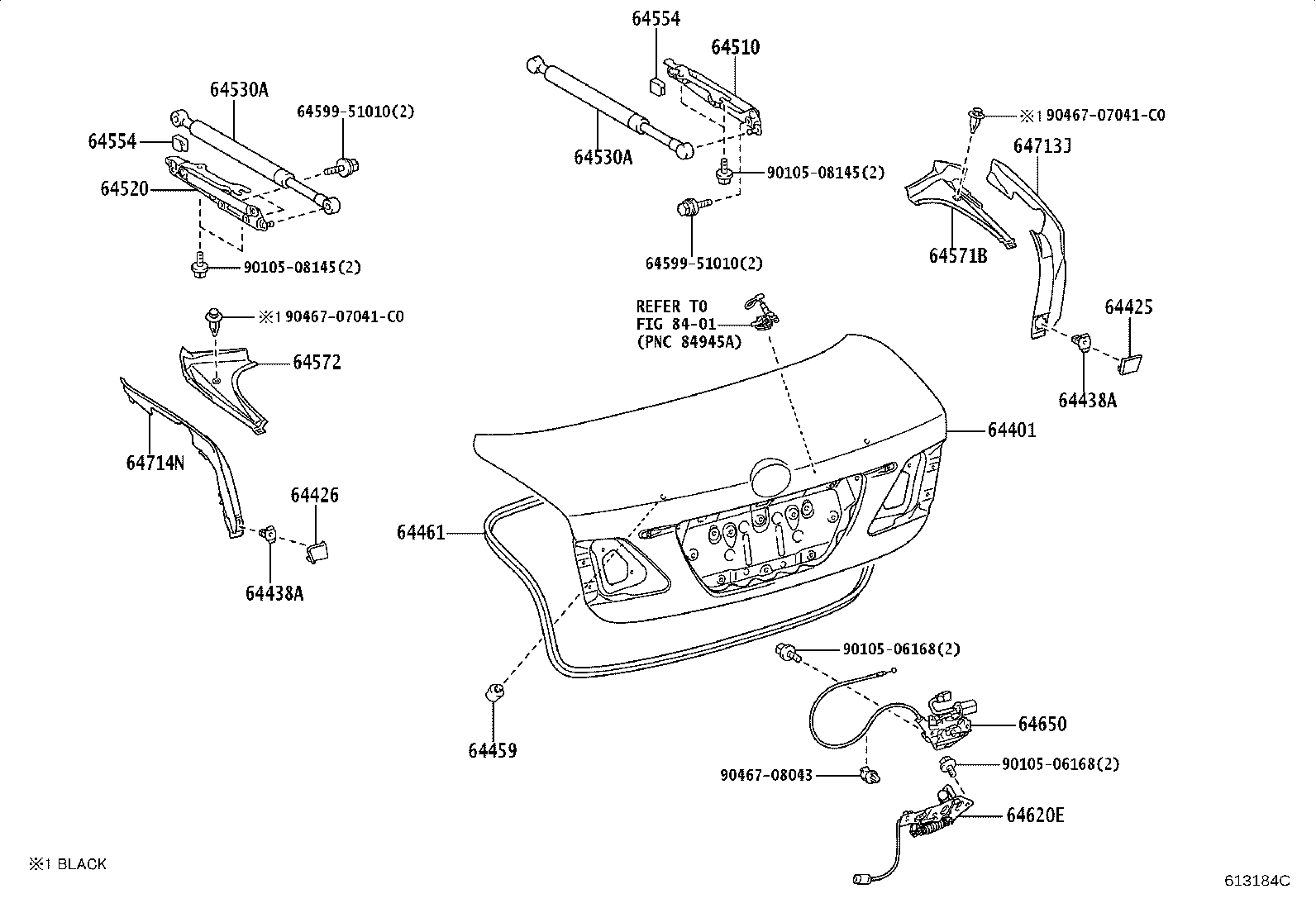

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 64401 — Panel Sub-assy, Luggage Compartment Door | ||||
| 64401-30C30 |
Panel Sub-assy, Luggage Compartment Door
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 64425 — Plug, Luggage Compartment Door, RH | ||||
| 64425-30040 |
Plug, Luggage Compartment Door, RH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 64426 — Plug, Luggage Compartment Door, LH | ||||
| 64426-30010 |
Plug, Luggage Compartment Door, LH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 64438A — Clamp, Luggage Room Carpet | ||||
| 64438-30010 |
Clamp, Luggage Room Carpet
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 64459 — Cushion, Luggage Compartment Door | ||||
| 90541-09116 |
Cushion, Luggage Compartment Door
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 64461 — Weatherstrip, Luggage Compartment Door | ||||
| 64461-30320 |
Weatherstrip, Luggage Compartment Door
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 64510 — Hinge Assy, Luggage Compartment Door, RH | ||||
| 64510-30480 |
Hinge Assy, Luggage Compartment Door, RH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 64520 — Hinge Assy, Luggage Compartment Door, LH | ||||
| 64520-30250 |
Hinge Assy, Luggage Compartment Door, LH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 64530A — Support Assy, Luggage Compartment Door | ||||
| 64530-0W120 |
Support Assy, Luggage Compartment Door
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 64530-0W130 note |
Support Assy, Luggage Compartment Door
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 64554 — Stopper, Luggage Door Balancer | ||||
| 64554-30041 note |
Stopper, Luggage Door Balancer
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 64554-30051 note |
Stopper, Luggage Door Balancer
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 64571B — Cover, Luggage Compartment Door Hinge, RH | ||||
| 64571-30130 |
Cover, Luggage Compartment Door Hinge, RH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 64572 — Cover, Luggage Compartment Door Hinge, LH | ||||
| 64572-30080 |
Cover, Luggage Compartment Door Hinge, LH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 64620E — Striker Assy, Luggage Compartment Door | ||||
| 64620-50020 |
Striker Assy, Luggage Compartment Door
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 64650 — Closer Assy, Luggage Door | ||||
| 64650-30041 |
Closer Assy, Luggage Door
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 64713J — Cover, Luggage Compartment Upper, NO.1 RH | ||||
| 64713-30100 |
Cover, Luggage Compartment Upper, NO.1 RH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 64714N — Cover, Luggage Compartment Upper, NO.1 LH | ||||
| 64714-30500 |
Cover, Luggage Compartment Upper, NO.1 LH
2010-09 → 2012-12
ended
|
GRS202 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
