Toyota Crown
2010-09 → 2012-12 · chassis GRS202 · catalogue 3312C0 · General
Supported model
Data version 2013-01

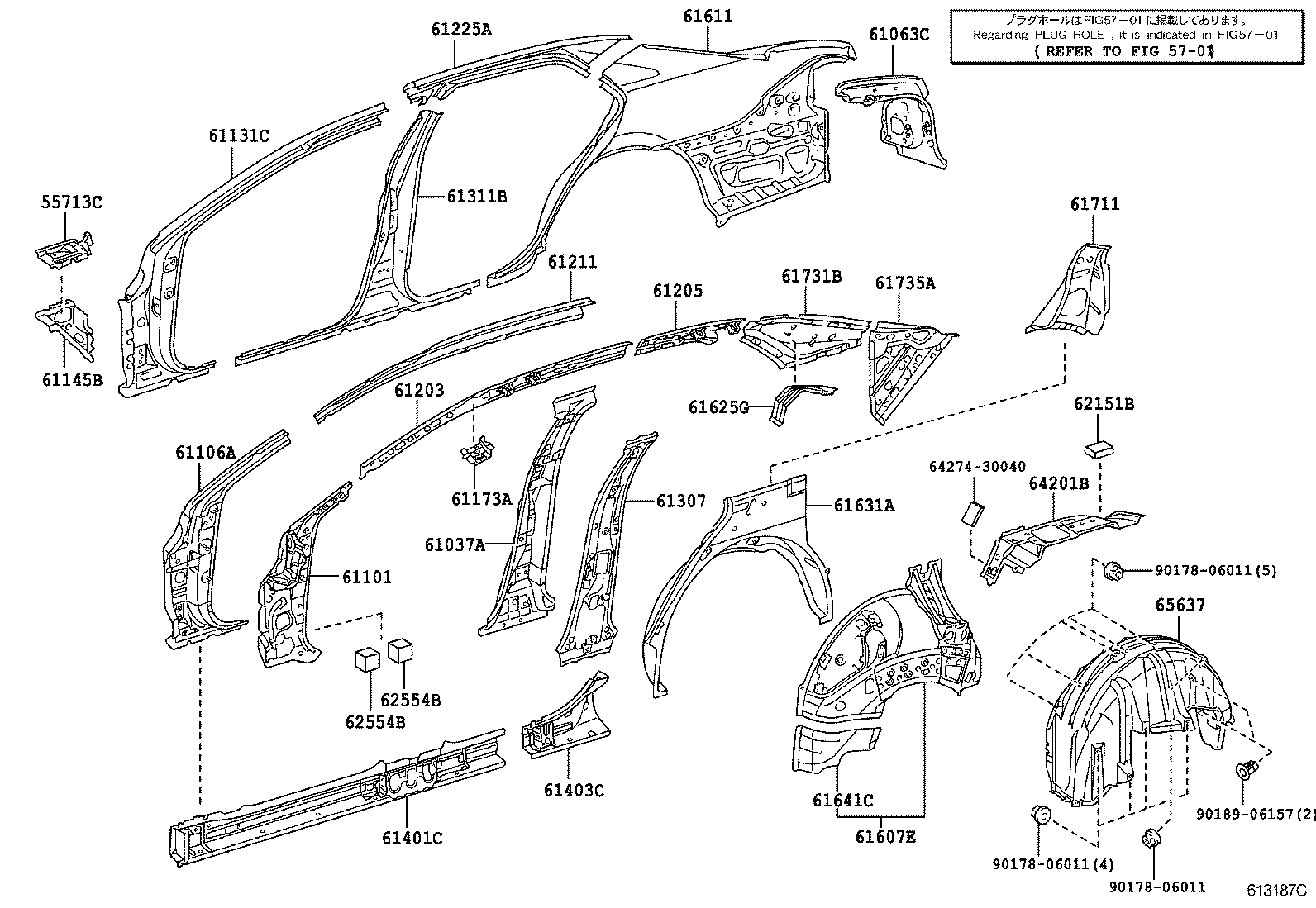

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 55713C — Panel, Cowl Top Side, RH | ||||
| 55713-30110 |
Panel, Cowl Top Side, RH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 61037A — Reinforcement Sub-assy, Center Body Pillar, RH | ||||
| 61037-30110 |
Reinforcement Sub-assy, Center Body Pillar, RH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 61063C — Trough Sub-assy, Luggage Door Opening, Front RH | ||||
| 61063-30050 |
Trough Sub-assy, Luggage Door Opening, Front RH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 61101 — Panel Sub-assy, Cowl Side, RH | ||||
| 61101-30010 |
Panel Sub-assy, Cowl Side, RH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 61106A — Reinforce Sub-assy, Front Body Pillar, Upper RH | ||||
| 61106-30902 |
Reinforce Sub-assy, Front Body Pillar, Upper RH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 61131C — Pillar, Front Body, Outer RH | ||||
| 61131-30300 |
Pillar, Front Body, Outer RH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 61145B — Gusset, Front Body Pillar, Lower RH | ||||
| 61145-30060 |
Gusset, Front Body Pillar, Lower RH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 61173A — Reinforcement, Front Body Pillar, Upper Inner RH | ||||
| 61173-30160 |
Reinforcement, Front Body Pillar, Upper Inner RH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 61203 — Rail Sub-assy, Roof Side, Inner RH | ||||
| 61203-30090 |
Rail Sub-assy, Roof Side, Inner RH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 61205 — Rail Sub-assy, Roof Side, Inner Rear RH | ||||
| 61205-30040 |
Rail Sub-assy, Roof Side, Inner Rear RH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 61211 — Rail, Roof Side, Outer RH | ||||
| 61211-30290 |
Rail, Roof Side, Outer RH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 61225A — Rail, Roof Side Outer Upper NO.1, RH | ||||
| 61225-30040 |
Rail, Roof Side Outer Upper NO.1, RH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 61307 — Pillar Sub-assy, Center Body, Inner RH | ||||
| 61307-30020 |
Pillar Sub-assy, Center Body, Inner RH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 61311B — Pillar, Center Body, Outer RH | ||||
| 61311-30270 |
Pillar, Center Body, Outer RH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 61401C — Panel Sub-assy, Rocker, Outer RH | ||||
| 61401-30280 |
Panel Sub-assy, Rocker, Outer RH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 61403C — Reinforce Sub-assy, Rocker, Outer RH | ||||
| 61403-30010 |
Reinforce Sub-assy, Rocker, Outer RH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 61607E — Panel, Quarter Wheel House, Inner RH | ||||
| 61607-30280 |
Panel, Quarter Wheel House, Inner RH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 61611 — Panel, Quarter, RH | ||||
| 61611-30A00 |
Panel, Quarter, RH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 61625G — Extension, Quarter Panel, Rear RH | ||||
| 61625-30090 |
Extension, Quarter Panel, Rear RH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 61631A — Panel, Quarter Wheel House, Outer RH | ||||
| 61631-30220 |
Panel, Quarter Wheel House, Outer RH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 61641C — Gusset, Quarter Wheel House, Front RH | ||||
| 61641-30050 |
Gusset, Quarter Wheel House, Front RH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 61711 — Panel, Roof Side, Outer RH | ||||
| 61711-30160 |
Panel, Roof Side, Outer RH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 61731B — Panel, Roof Side, Inner RH | ||||
| 61731-30250 |
Panel, Roof Side, Inner RH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 61735A — Panel, Roof Side, Inner Rear RH | ||||
| 61735-30110 |
Panel, Roof Side, Inner Rear RH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 62151B — Pad, Cowl Side Silencer | ||||
| 62151-20160 |
Pad, Cowl Side Silencer
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 62554B — Pad, Pillar, NO.4 | ||||
| 62554-30010 |
Pad, Pillar, NO.4
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 64201B — Strainer Sub-assy, Package Tray TO Floor, RH | ||||
| 64201-30230 |
Strainer Sub-assy, Package Tray TO Floor, RH
2010-09 → 2012-12
ended
|
GRS202 | — | |
| 65637 — Liner, Rear Wheel House, RH | ||||
| 65637-30070 |
Liner, Rear Wheel House, RH
2010-09 → 2012-12
ended
|
GRS202 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
